Ignition Switch

Component Connector End Views

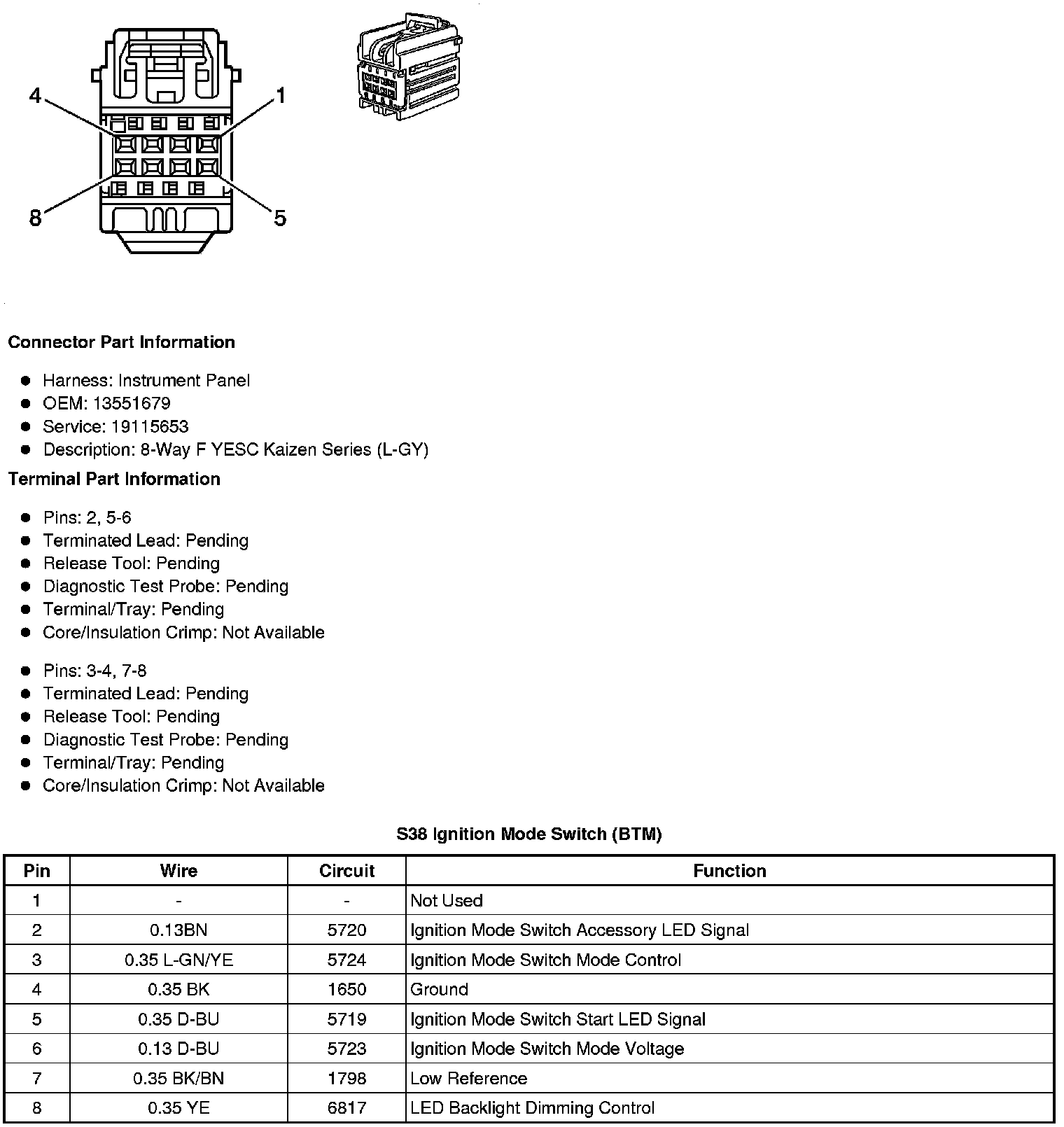

S38 Ignition Mode Switch (BTM)

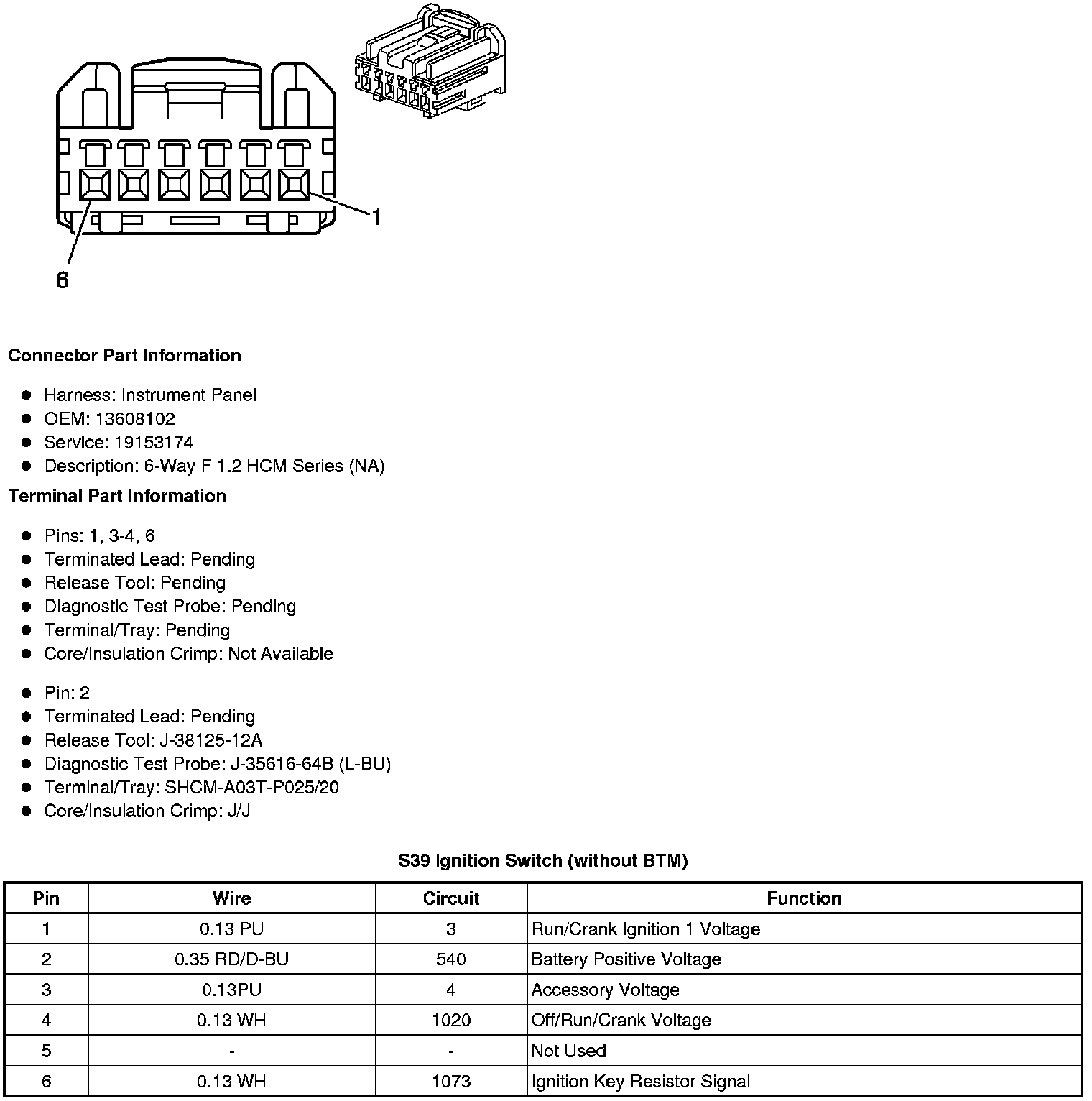

S39 Ignition Switch (without BTM)
