Amplifier, Sound System




Component Connector End Views

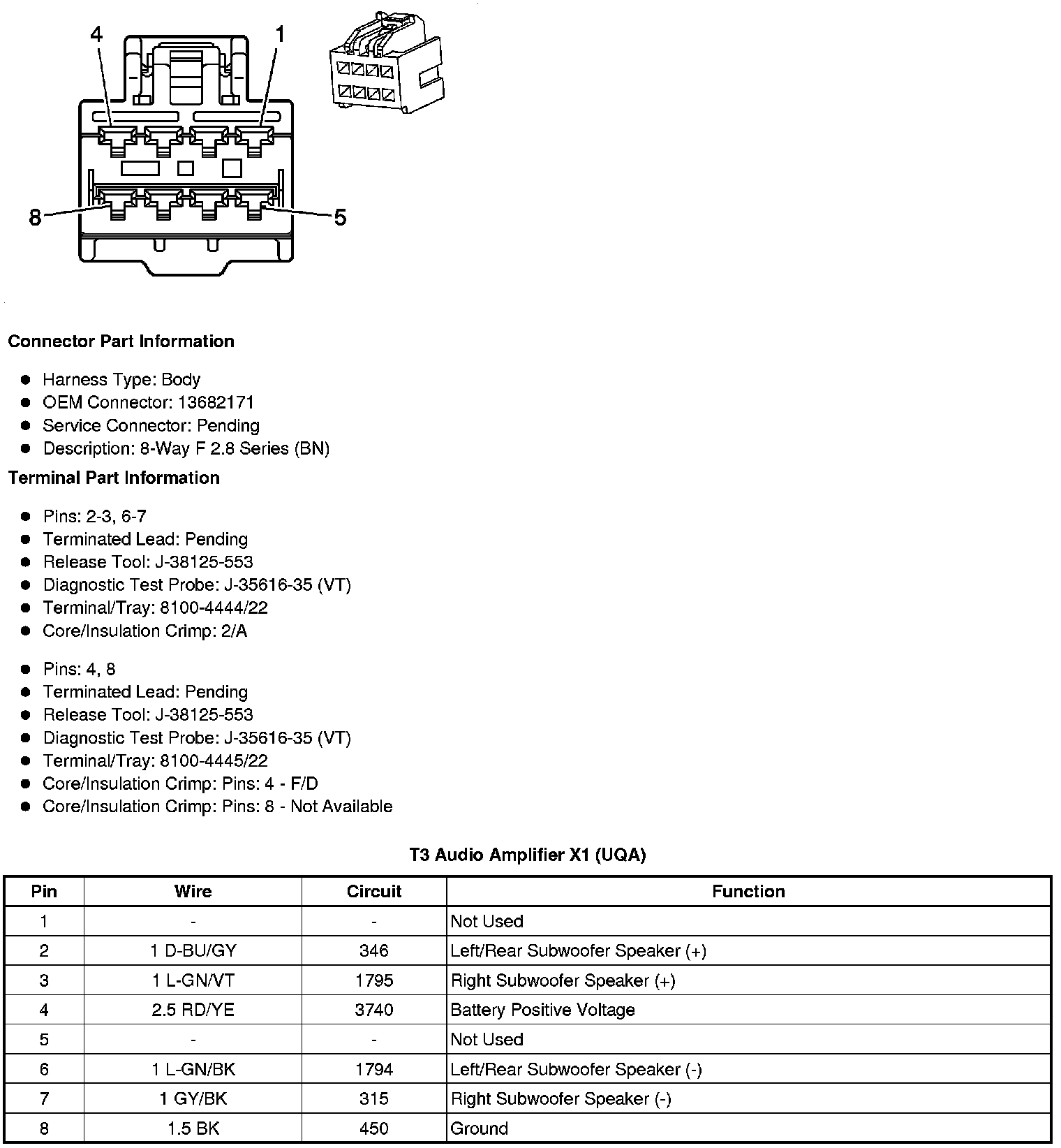

T3 Audio Amplifier X1 (UQA)

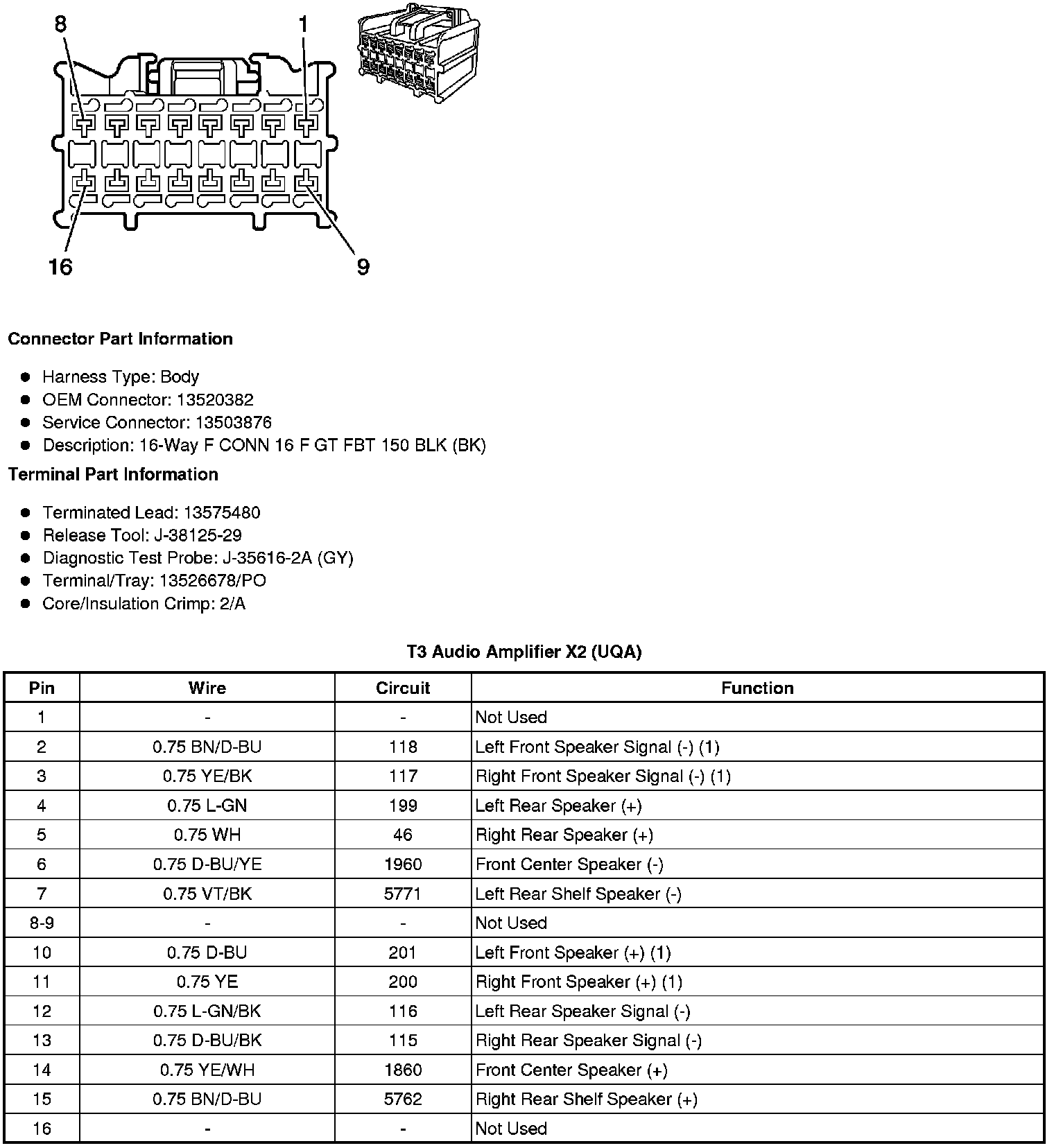

T3 Audio Amplifier X2 (UQA)

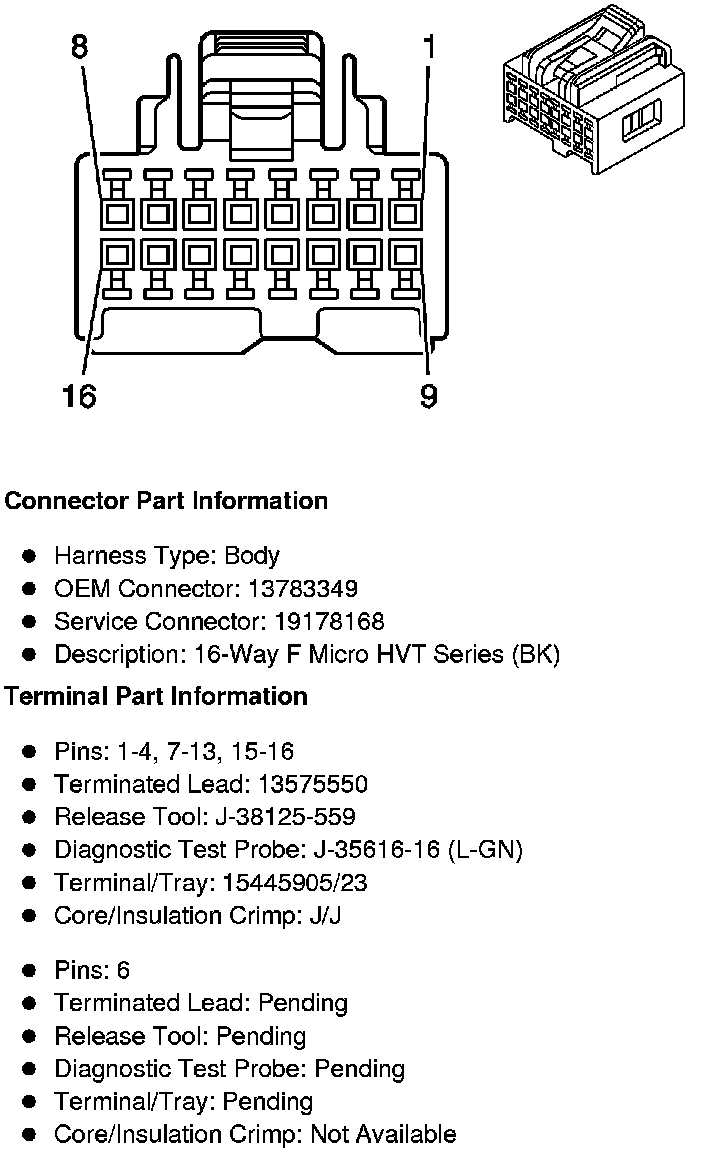

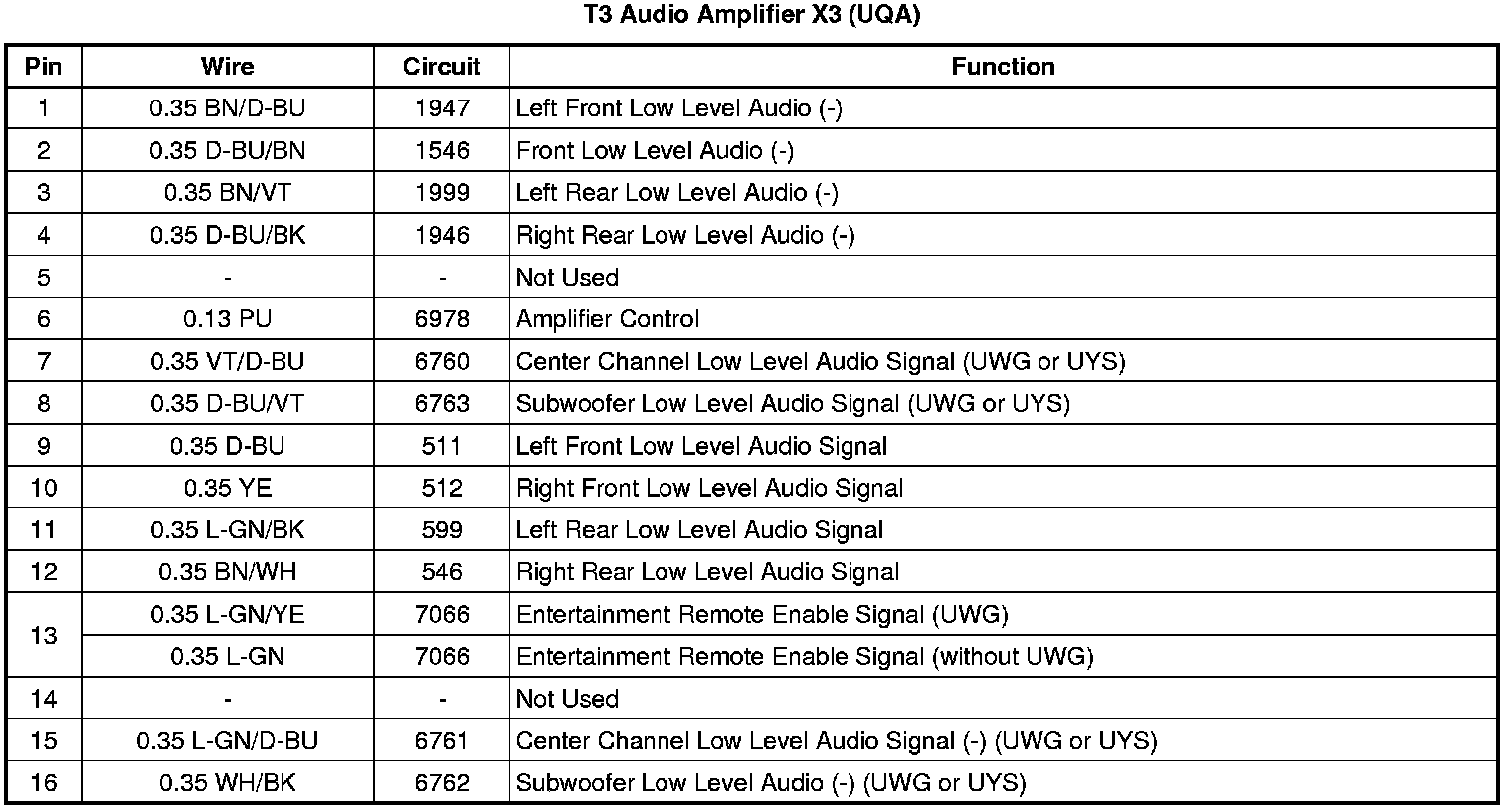

T3 Audio Amplifier X3 (UQA)
