LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
2010
>>
Lucerne V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Angle Sensor
Steering Angle Sensor

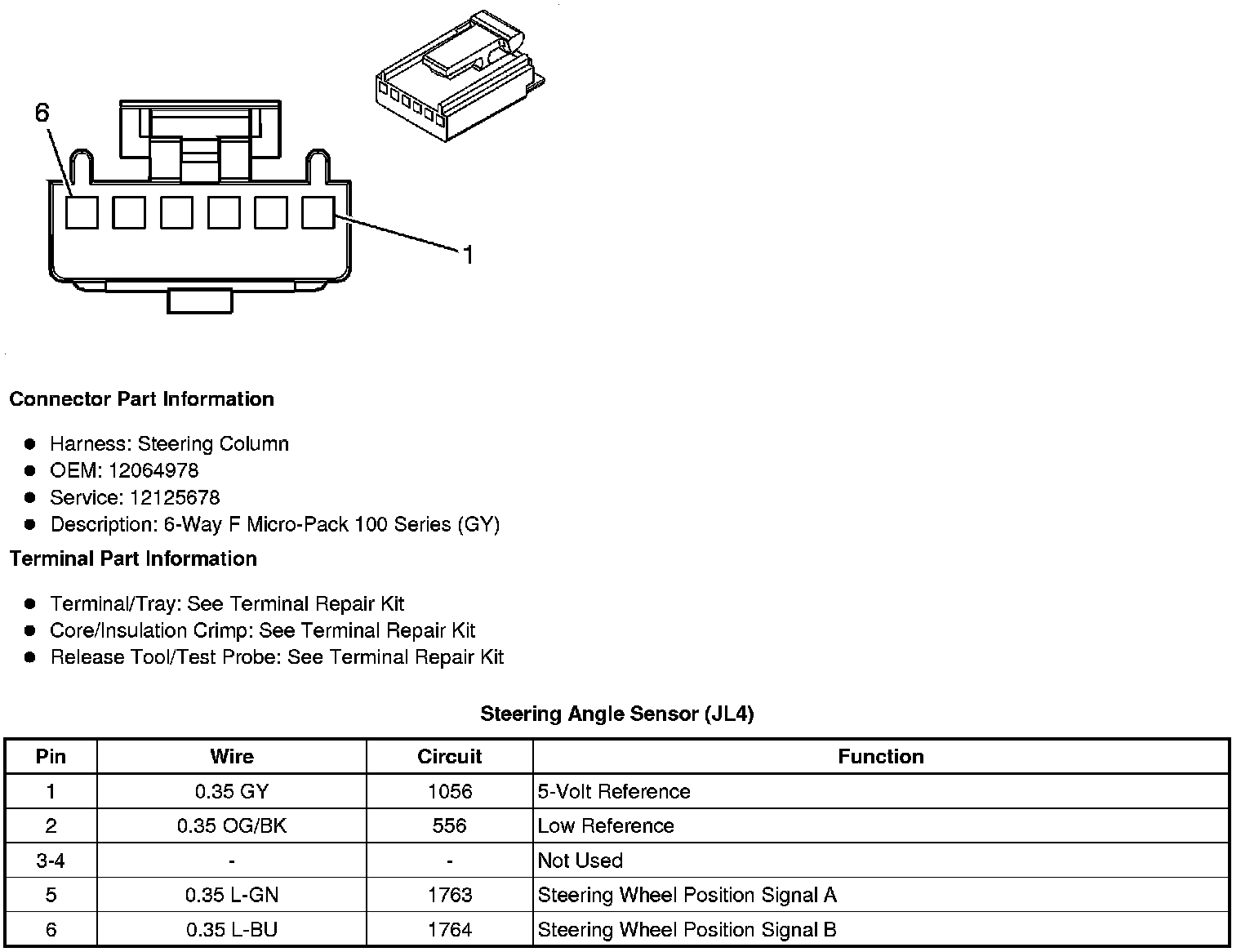

Component Connector End Views
Steering Angle Sensor
(JL4)
