Rear Window Sunshade Control Module




Component Connector End Views

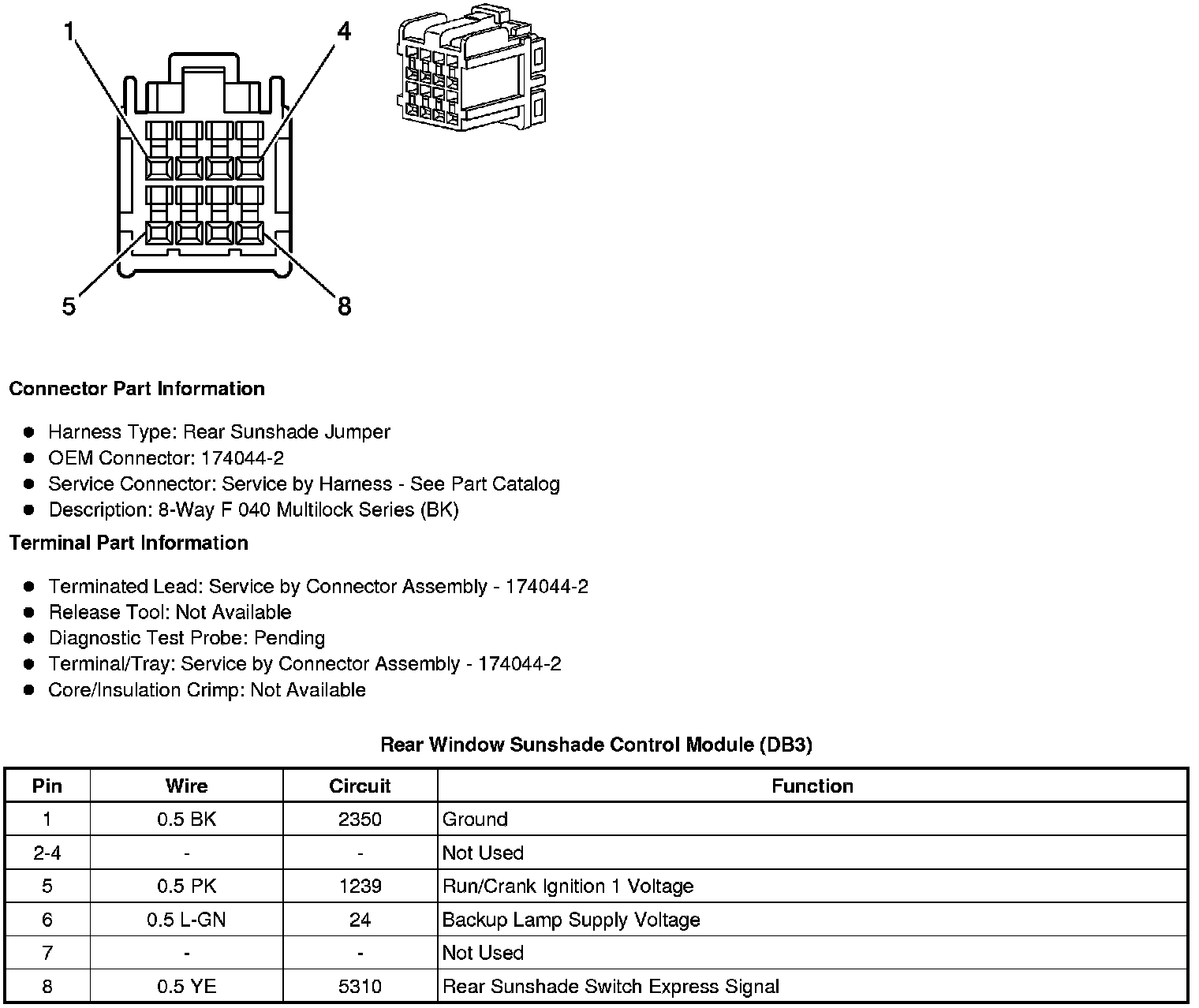

Rear Window Sunshade Control Module (DB3)
