LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
2010
>>
LaCrosse FWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Brake Control Module
Parking Brake Control Module

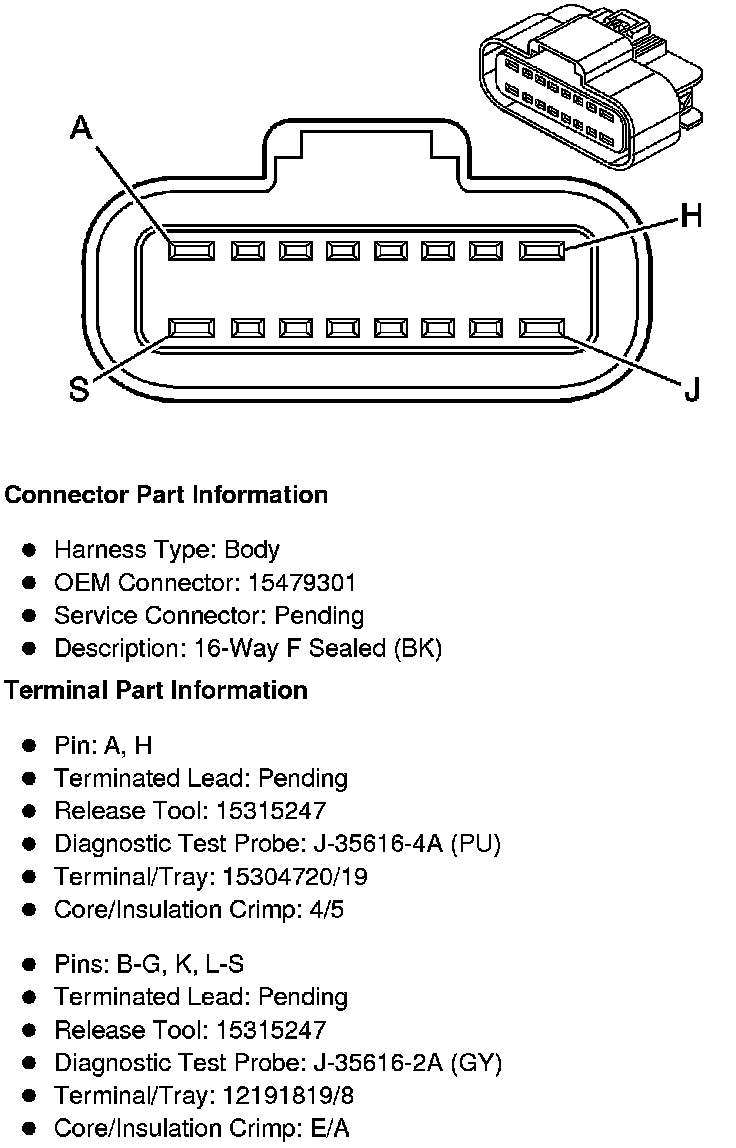

Component Connector End Views

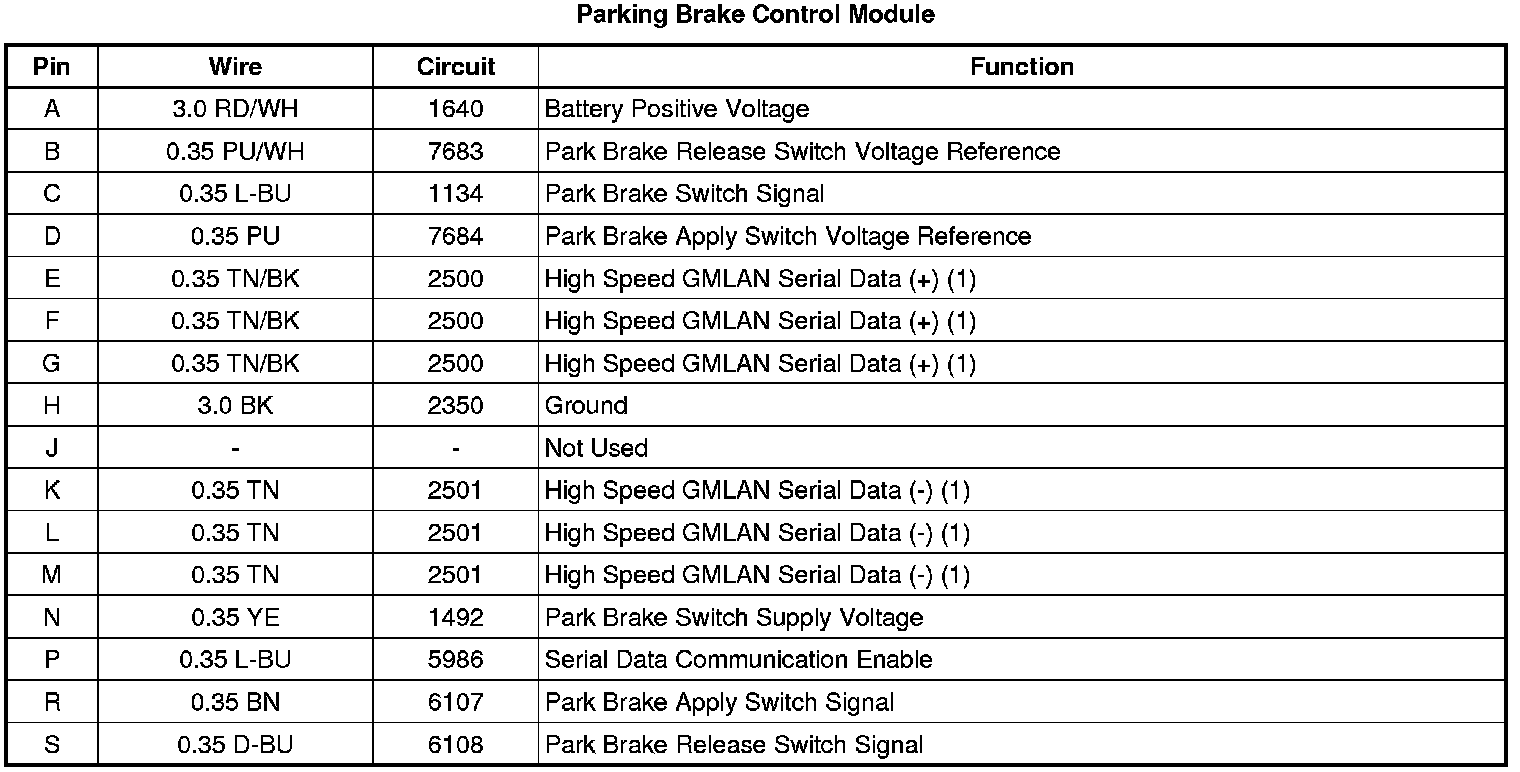

Parking Brake Control Module
