Home >> Buick >> 2010 >> LaCrosse FWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch

Component Connector End Views

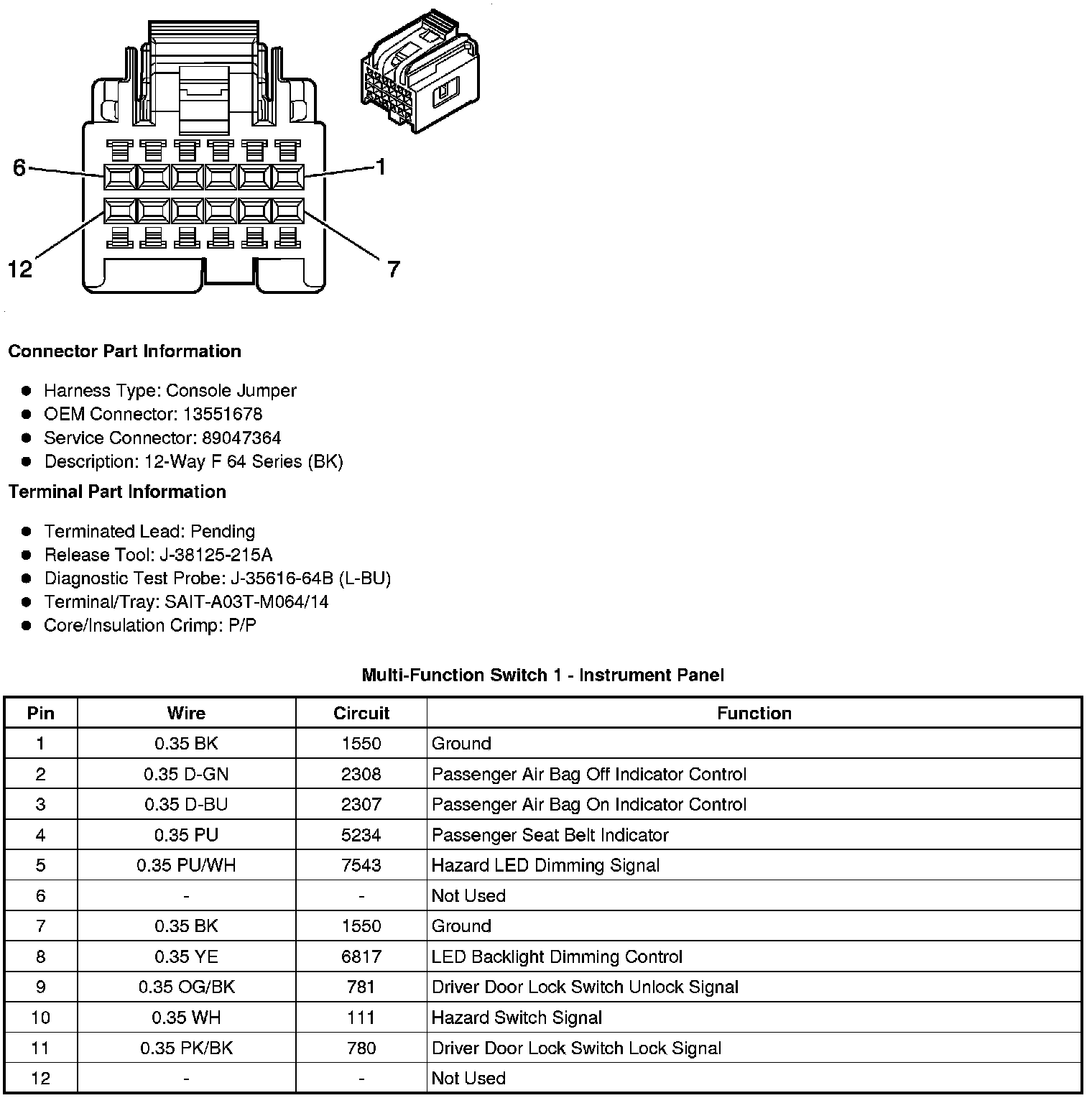

Multi-Function Switch 1 - Instrument Panel

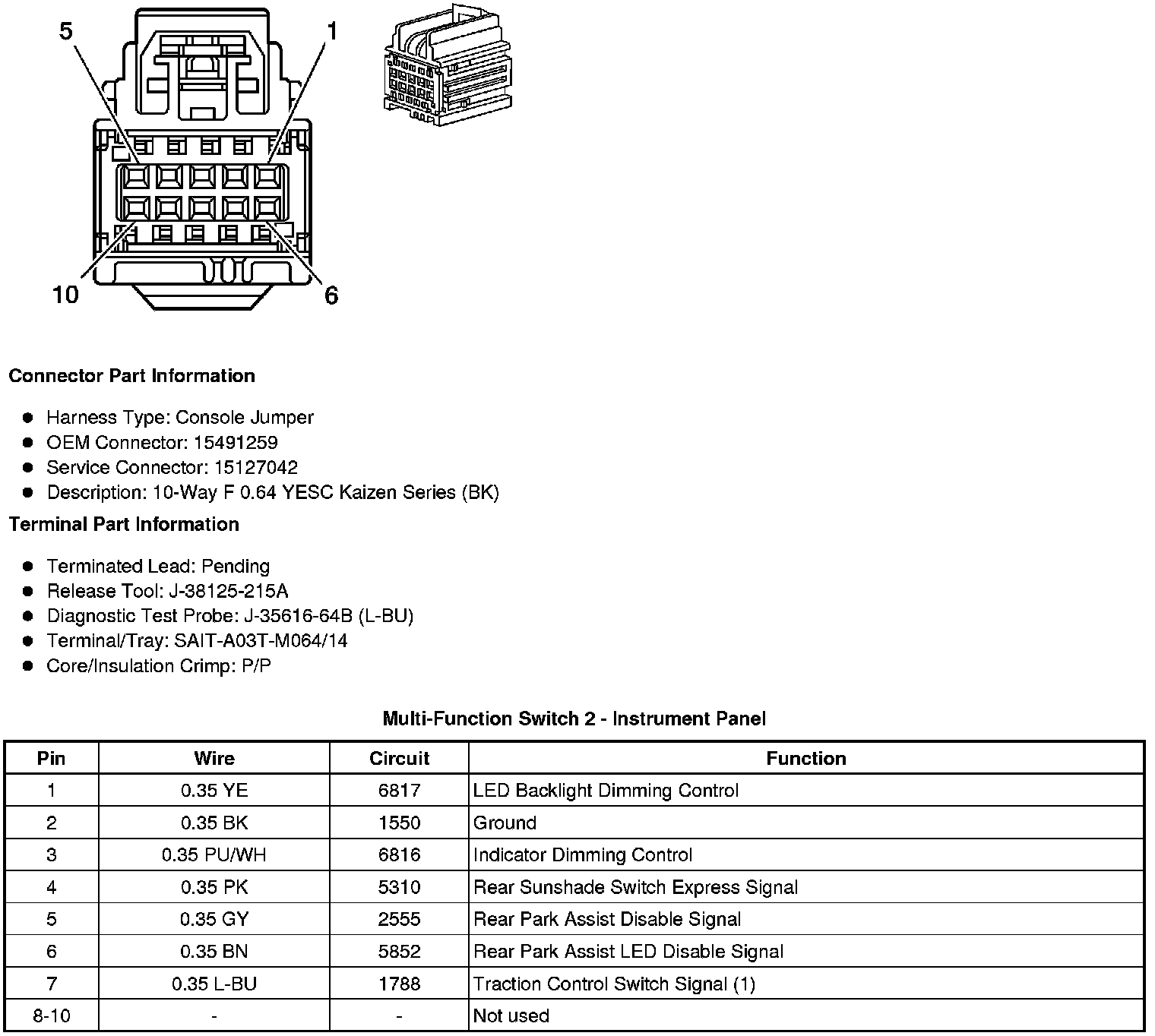

Multi-Function Switch 2 - Instrument Panel
