Buick
>>
2010
>>
LaCrosse FWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)
Component Connector End Views

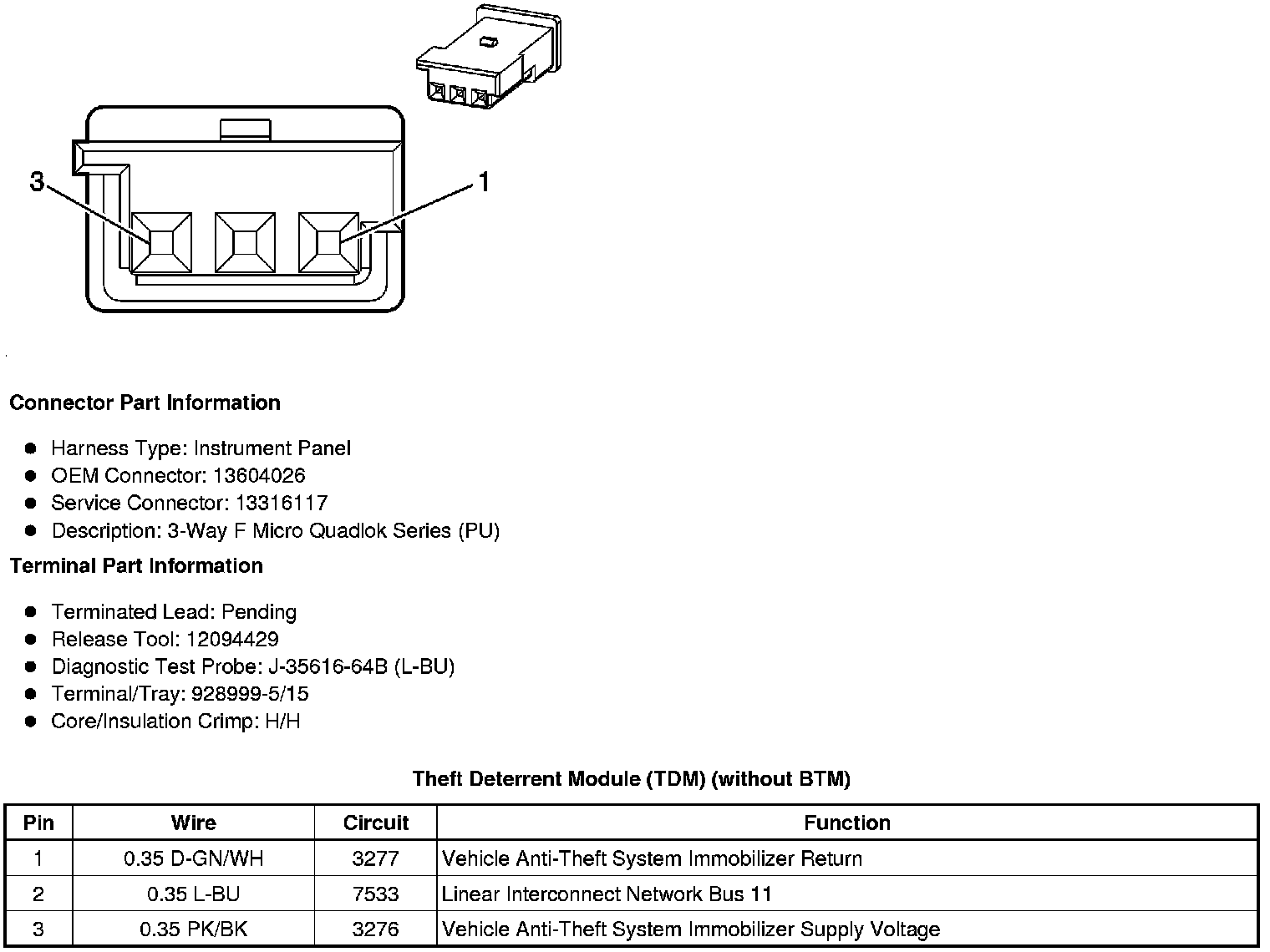

Theft Deterrent Module (TDM) (without BTM)

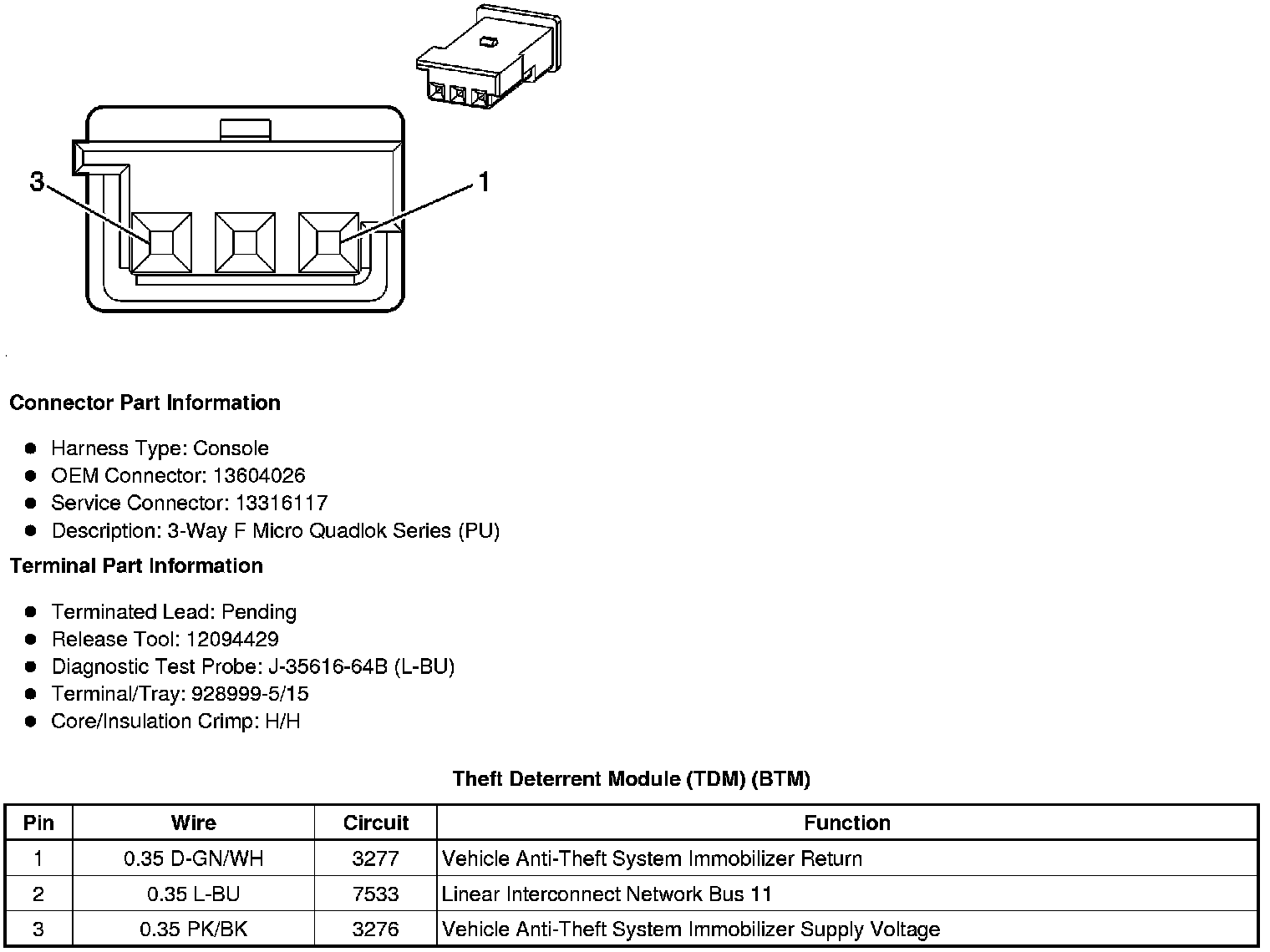

Theft Deterrent Module (TDM) (BTM)
