Home >> Buick >> 2010 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Pressure Sensor >> Diagrams

Fuel Pressure Sensor: Diagrams




Component Connector End Views

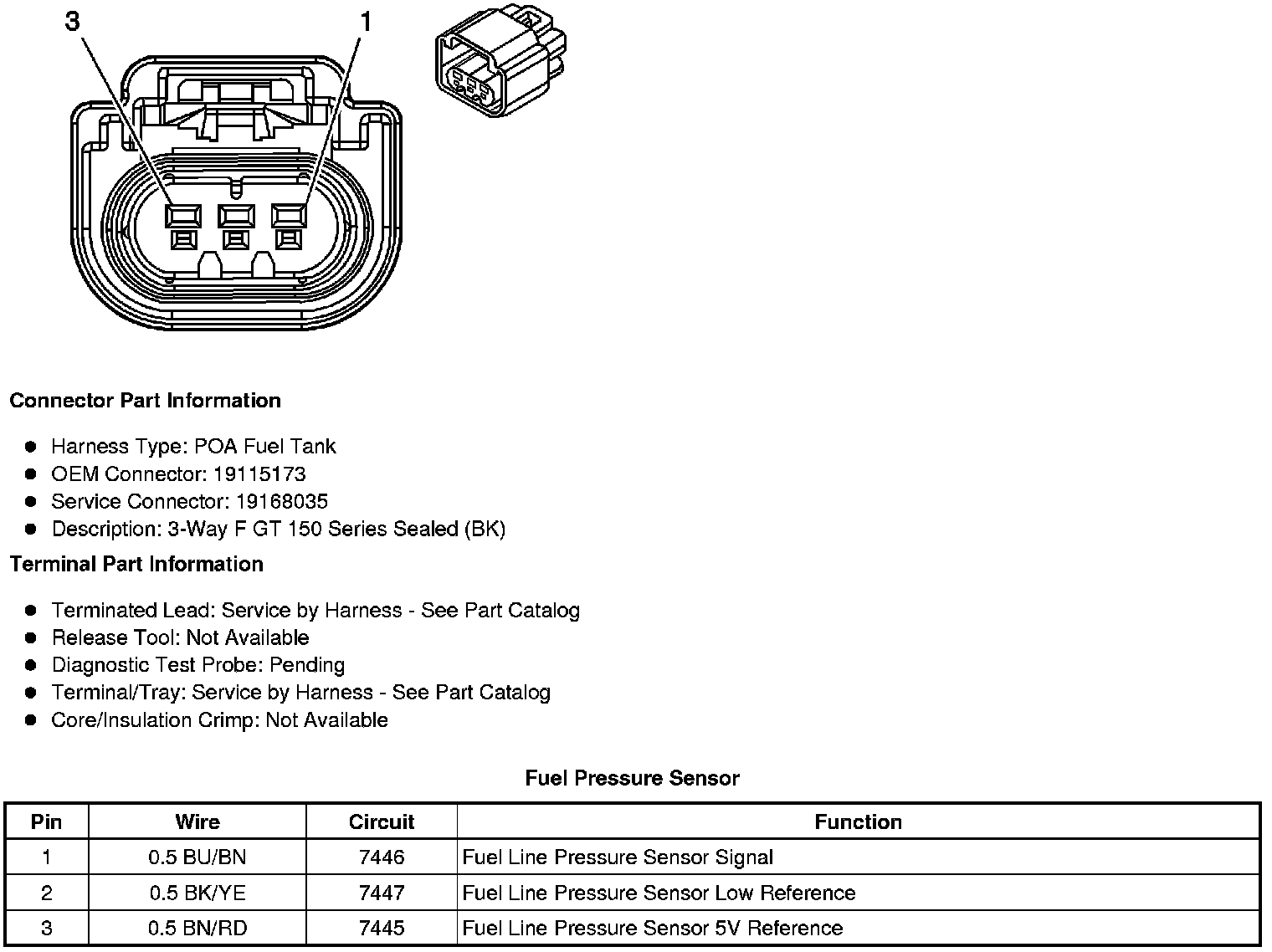

B47 Fuel Pressure Sensor





B47B Fuel Rail Pressure Sensor (LAF)

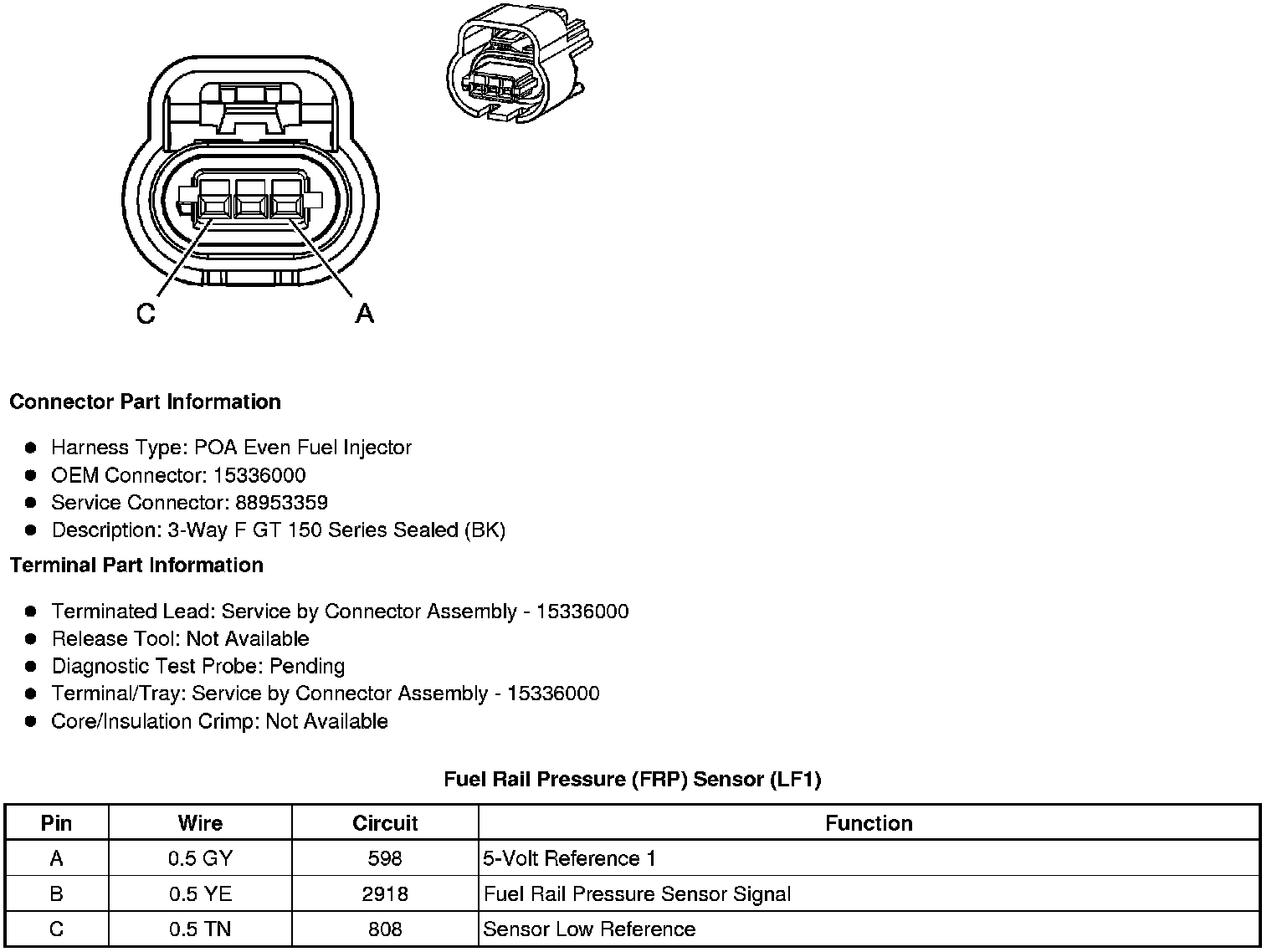

B47B Fuel Rail Pressure Sensor (LF1)

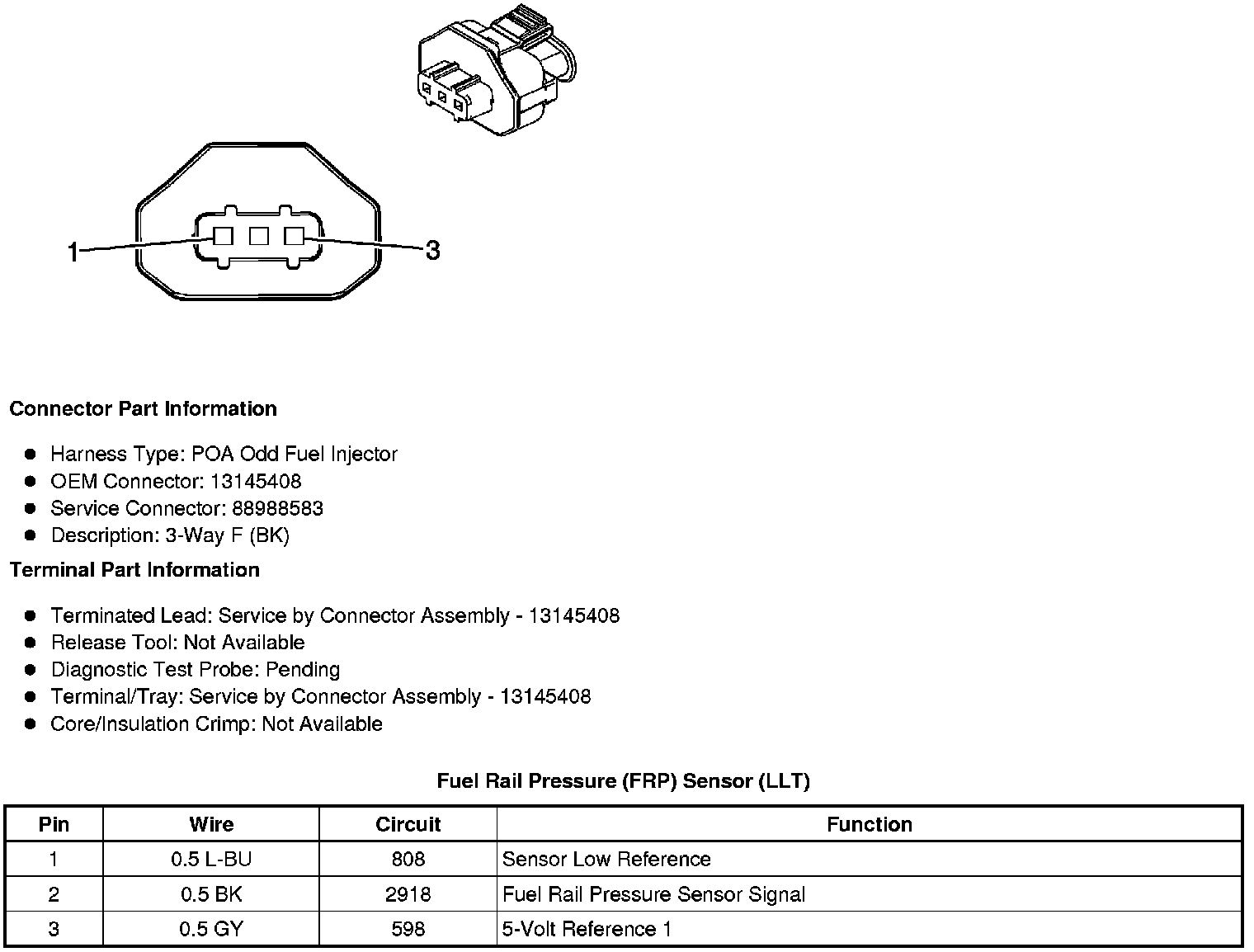

B47B Fuel Rail Pressure Sensor (LLT)
