Barometric Pressure Sensor: Diagrams

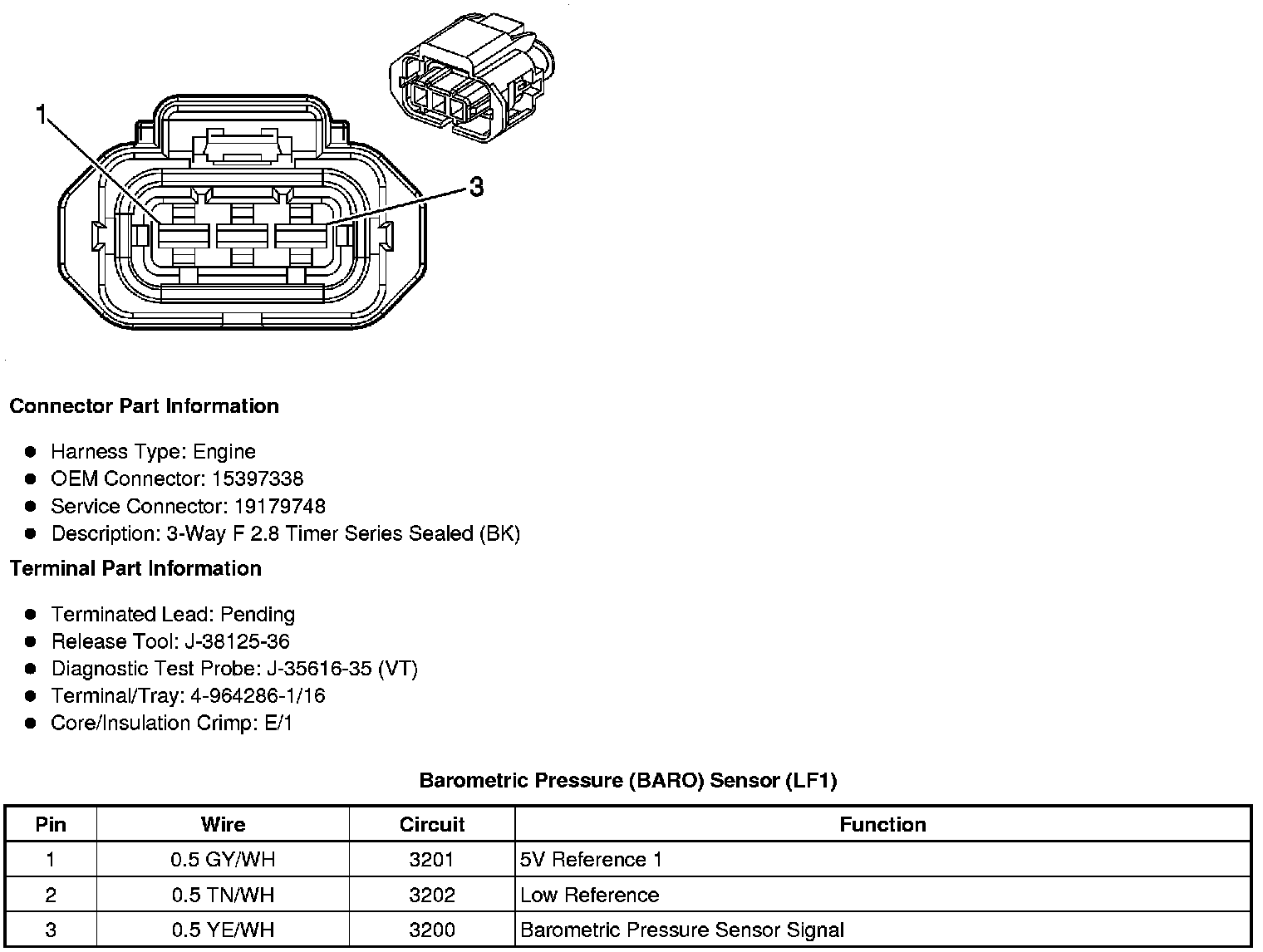

Component Connector End Views

B17 Barometric Pressure (BARO) Sensor (LF1)
