Air Flow Meter/Sensor: Diagrams




Component Connector End Views

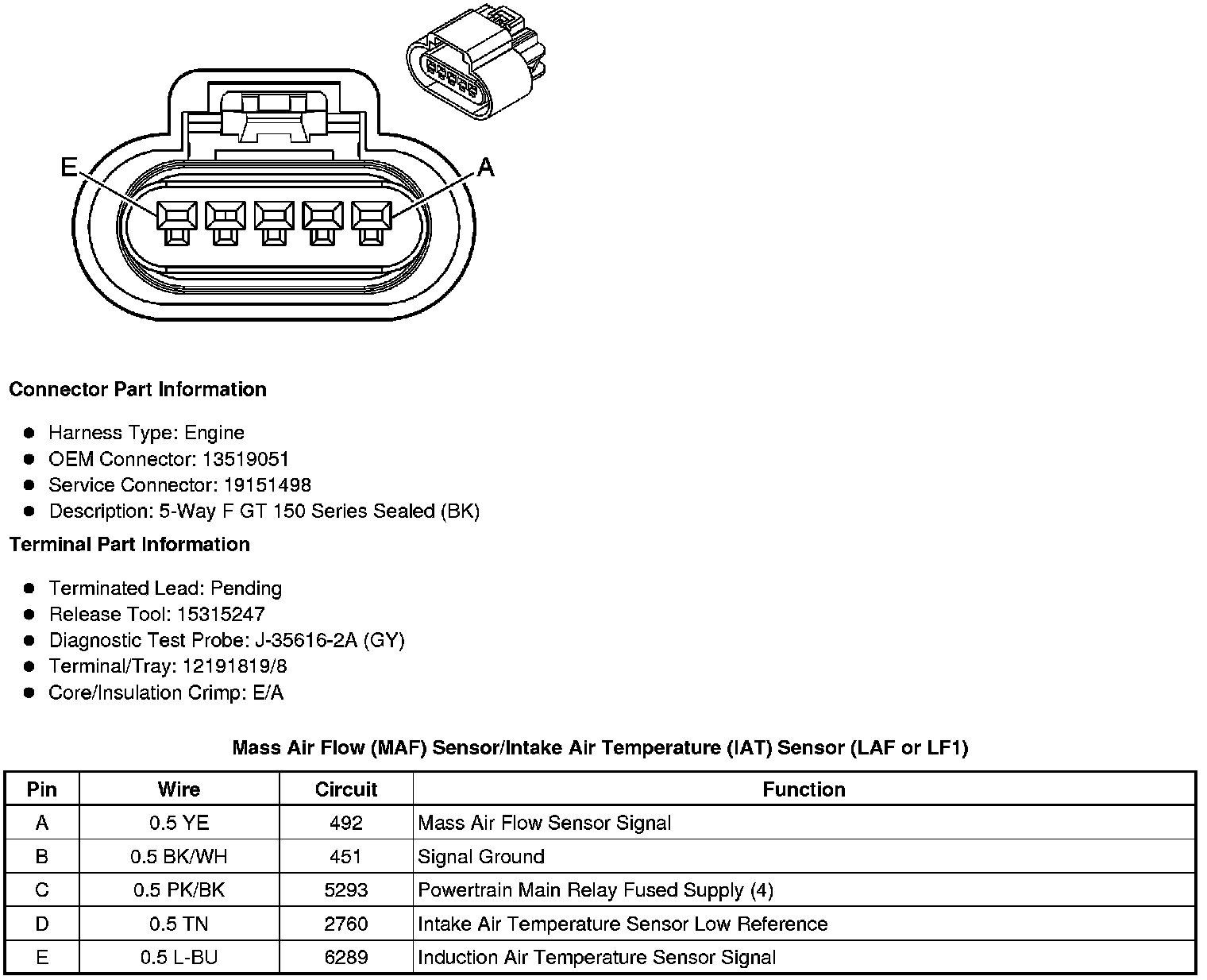

B75B Mass Air Flow Sensor/Intake Air Temperature Sensor (LAF or LF1)

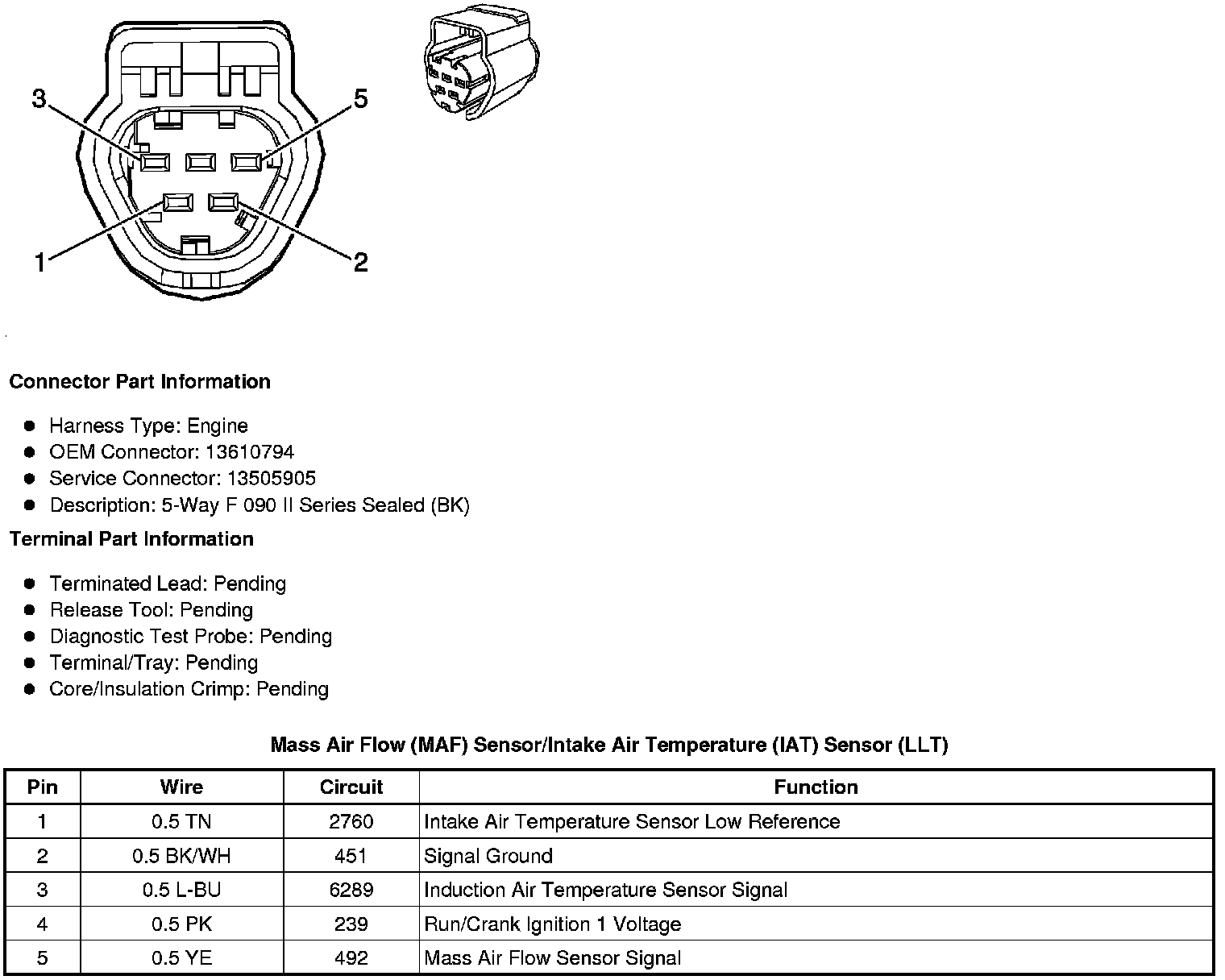

B75B Mass Air Flow Sensor/Intake Air Temperature Sensor (LLT)
