Home >> Buick >> 2010 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Yaw Rate Sensor

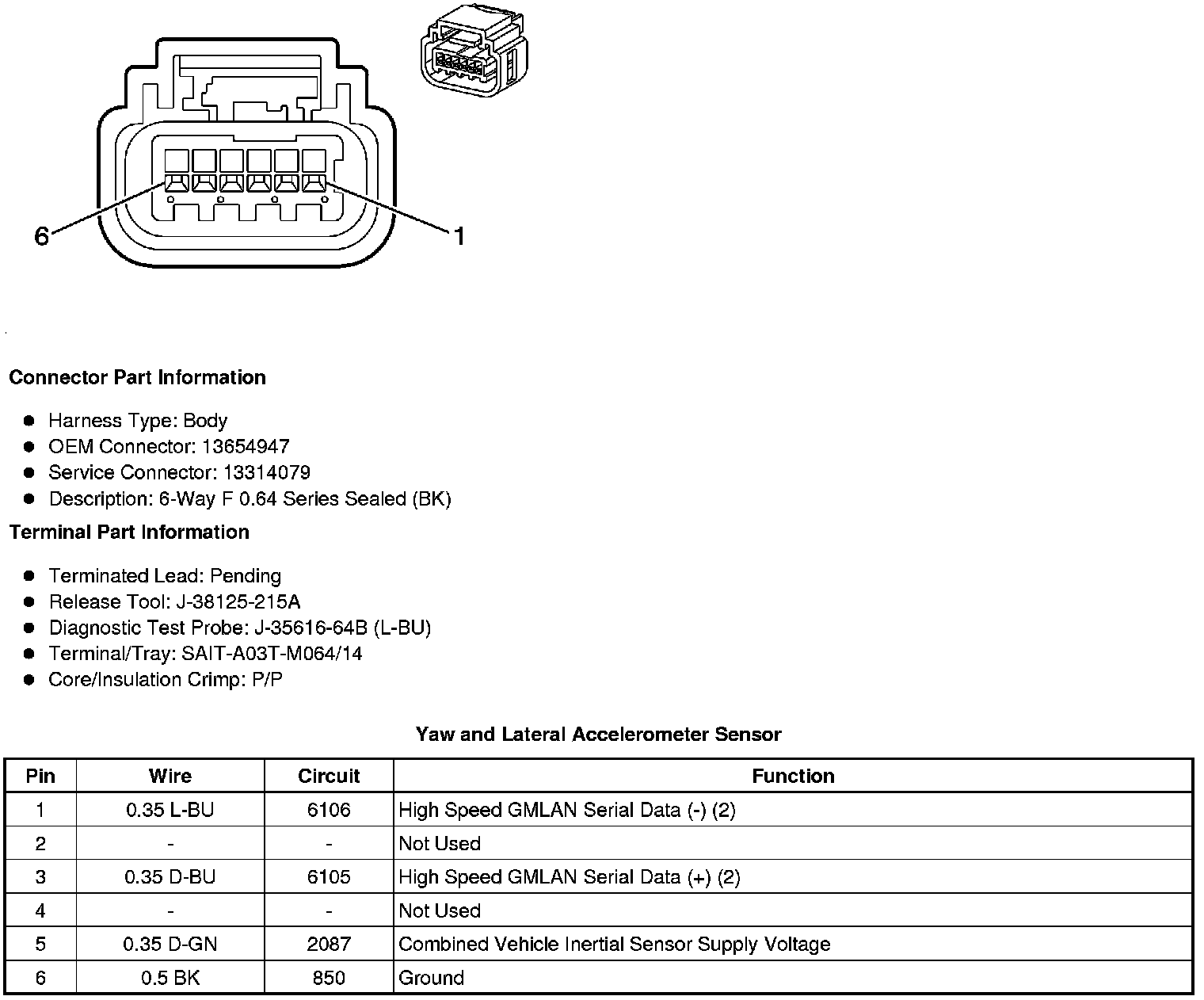

Yaw Rate Sensor




Component Connector End Views

B119 Multi-Axis Acceleration Sensor








Component Connector End Views

B161LF Vertical Suspension Acceleration Sensor - Left Front (F45)

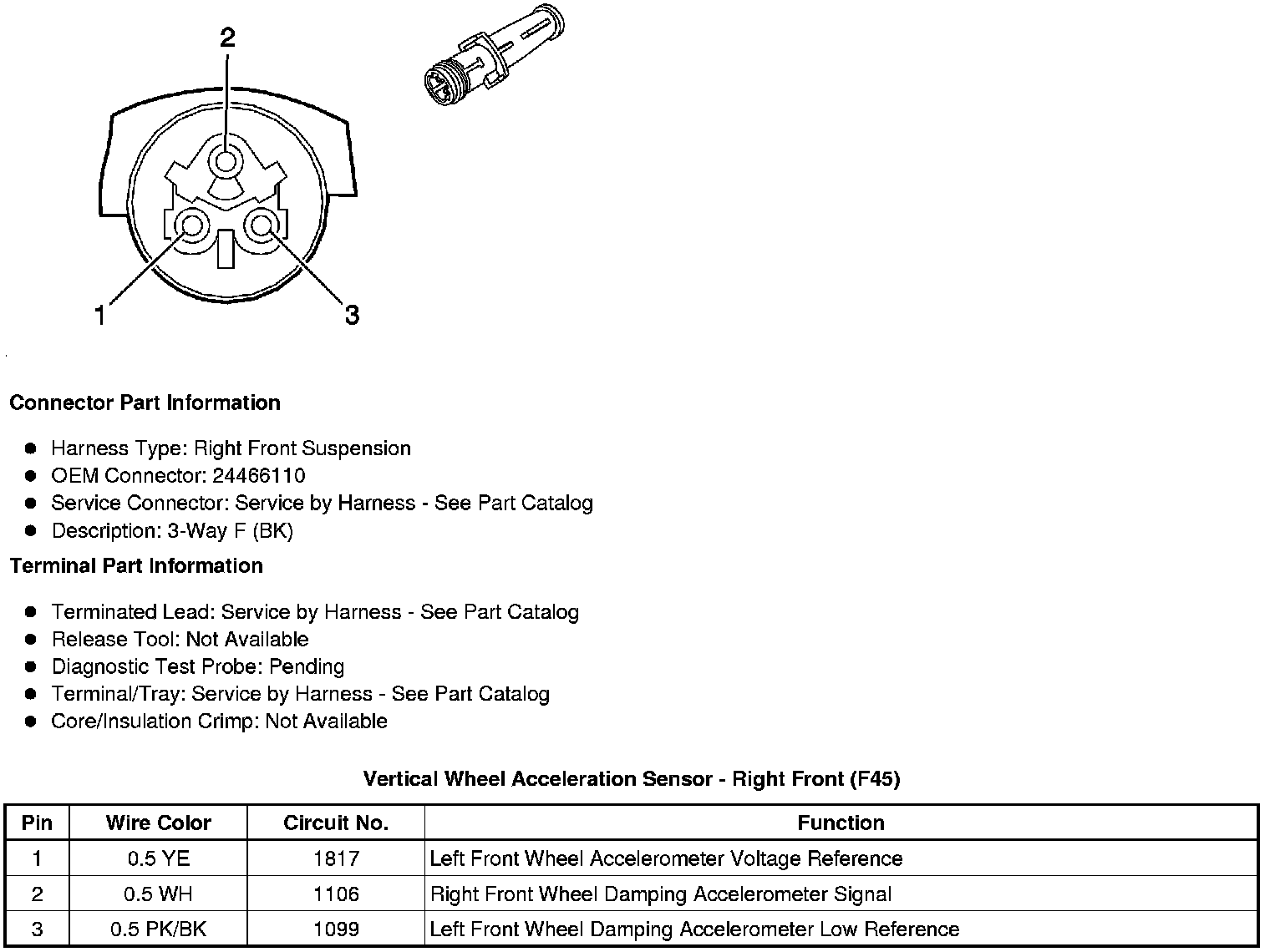

B161RF Vertical Suspension Acceleration Sensor - Right Front (F45)
