Home >> Buick >> 2010 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor




Component Connector End Views

Window Motor - Driver

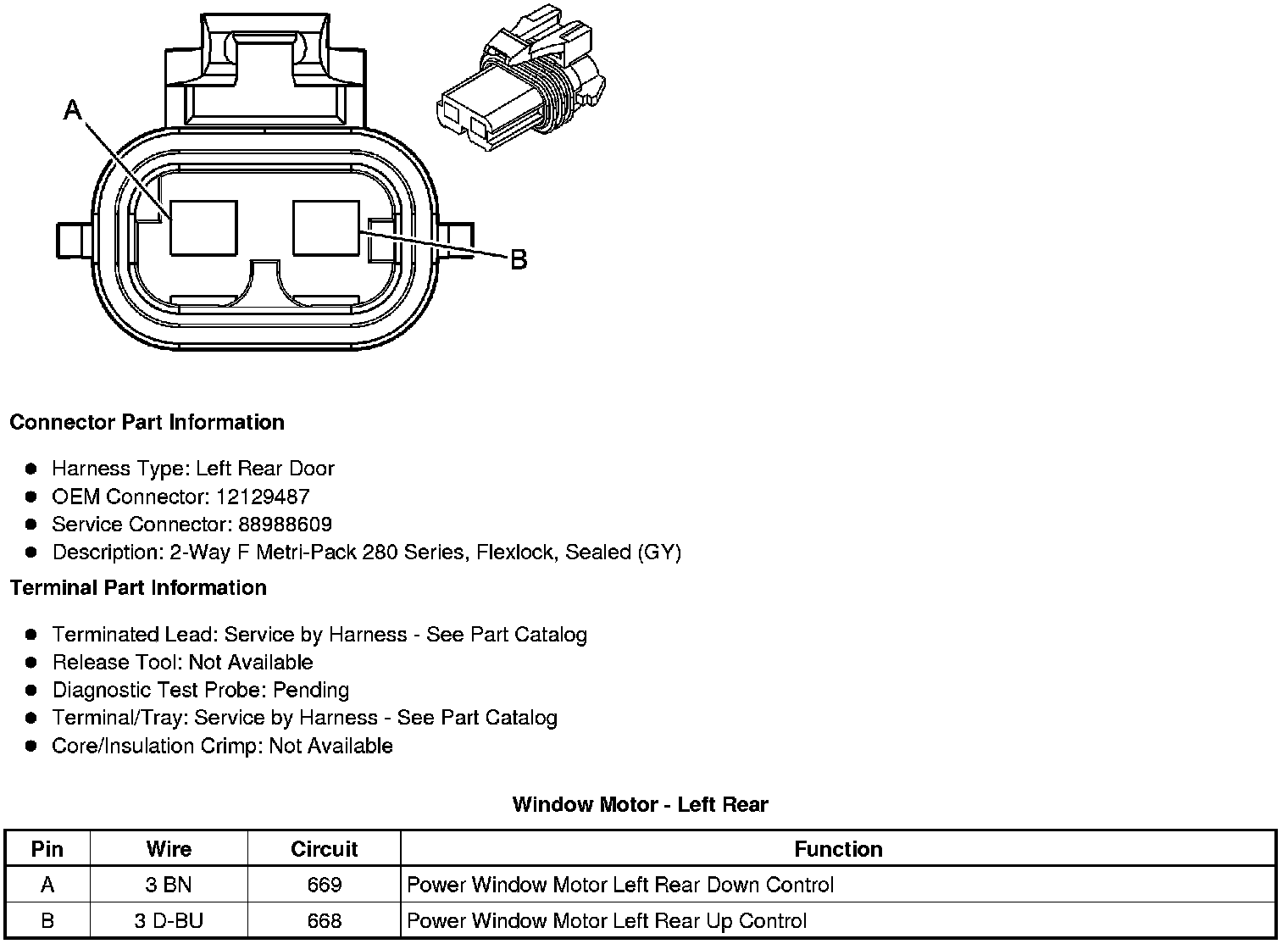

Window Motor - Left Rear

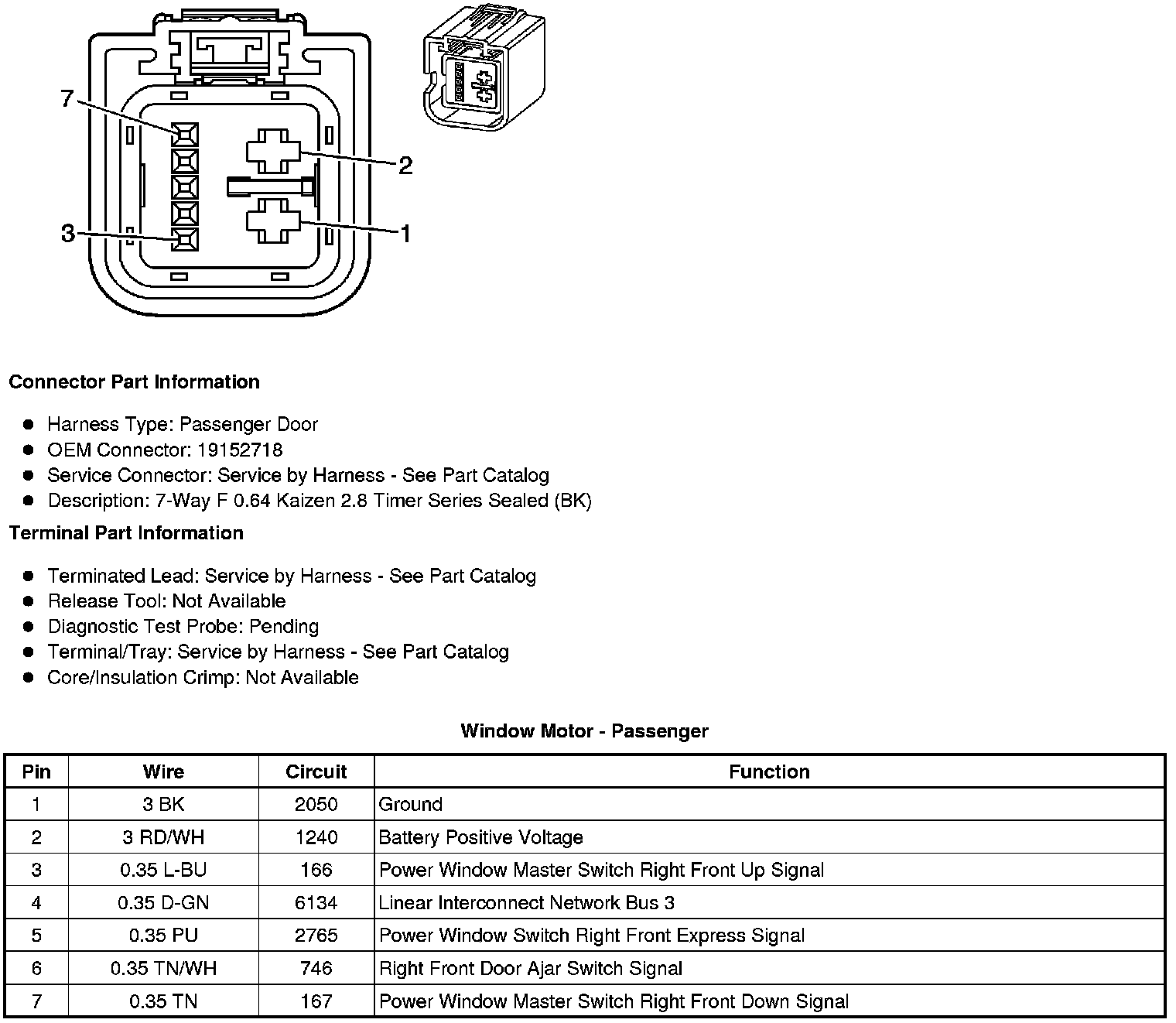

Window Motor - Passenger

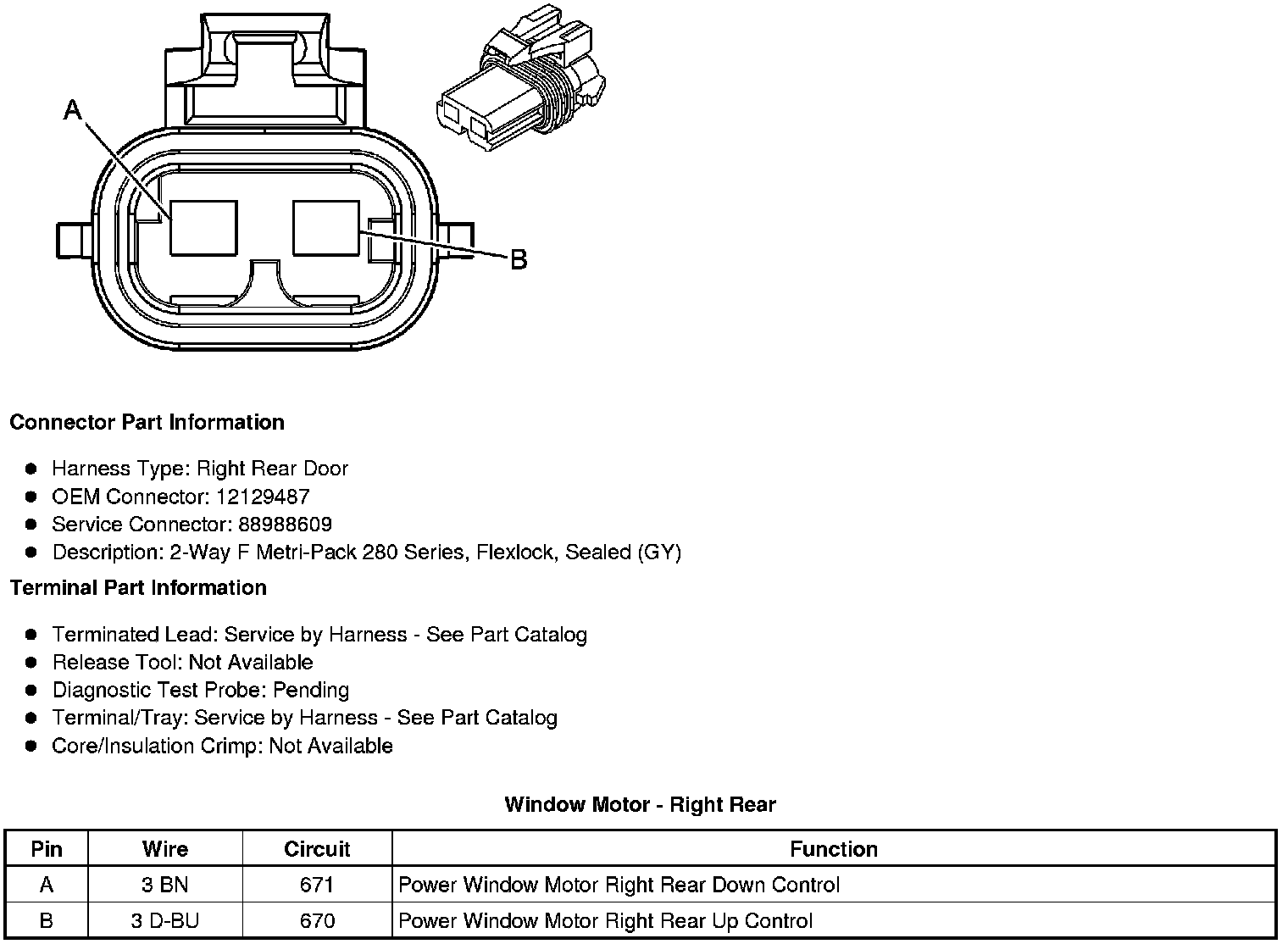

Window Motor - Right Rear
