Ignition Switch

Component Connector End Views

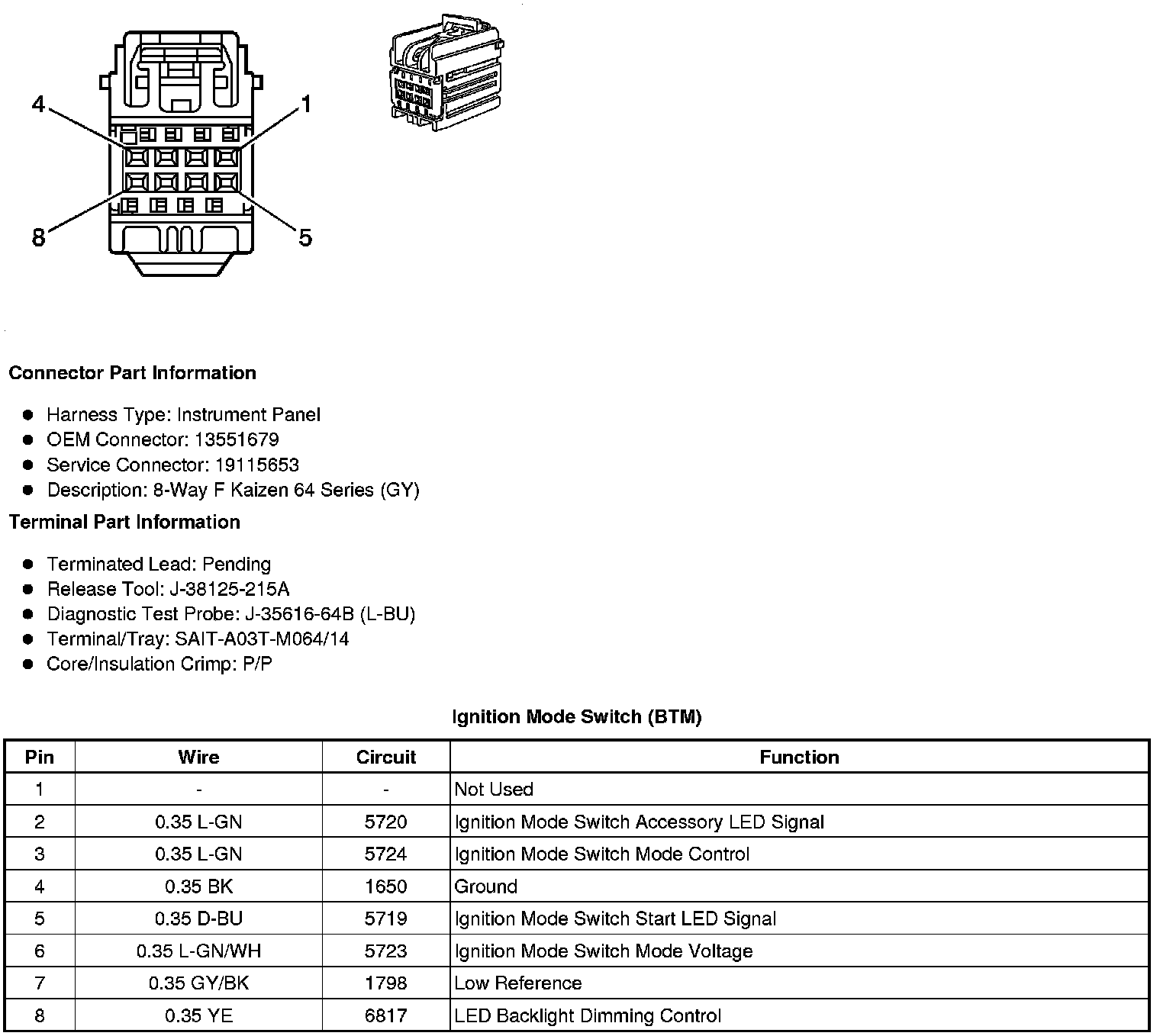

Ignition Mode Switch (BTM)

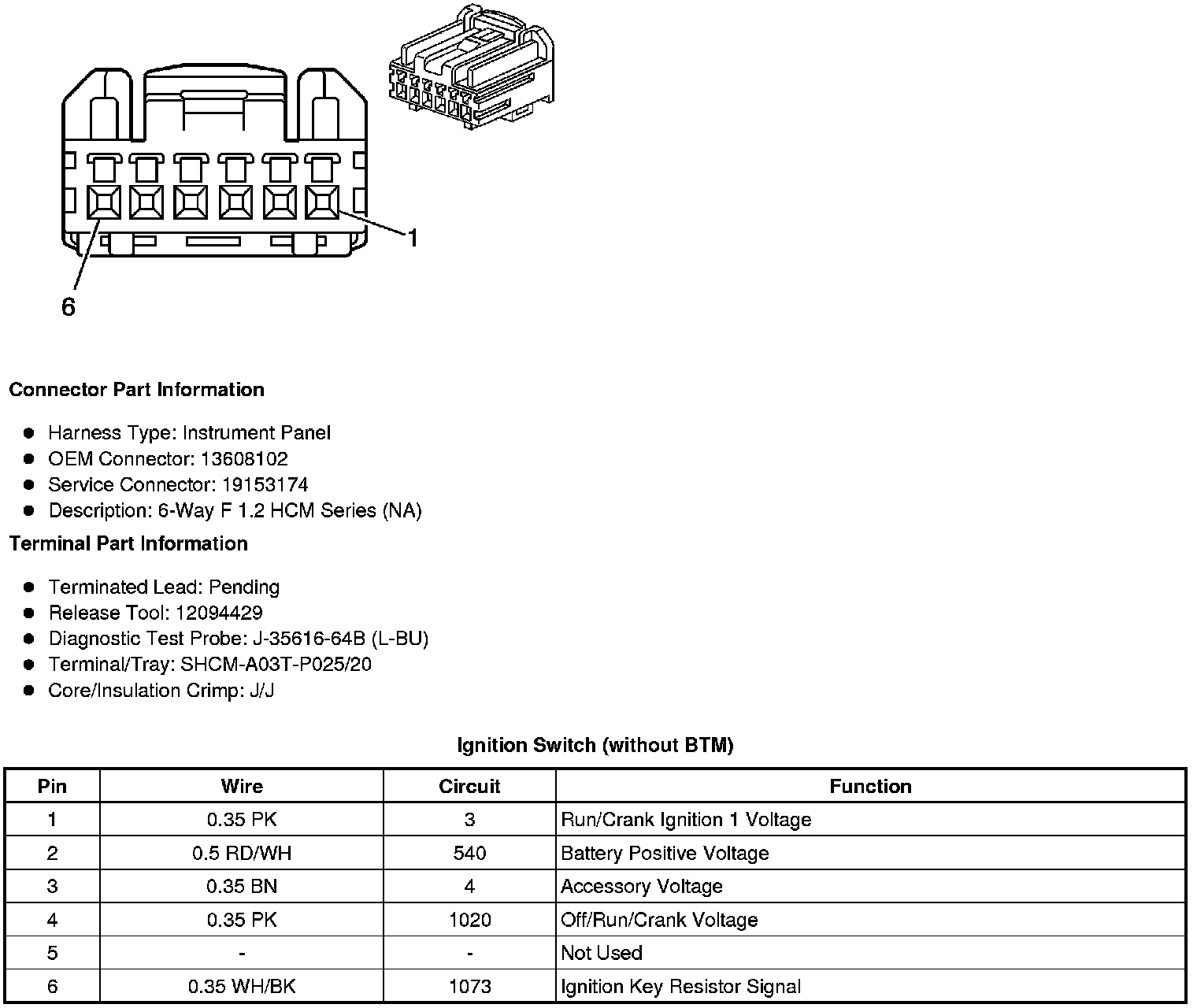

Ignition Switch (without BTM)
