Home >> Buick >> 2010 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor HVAC

Compressor HVAC

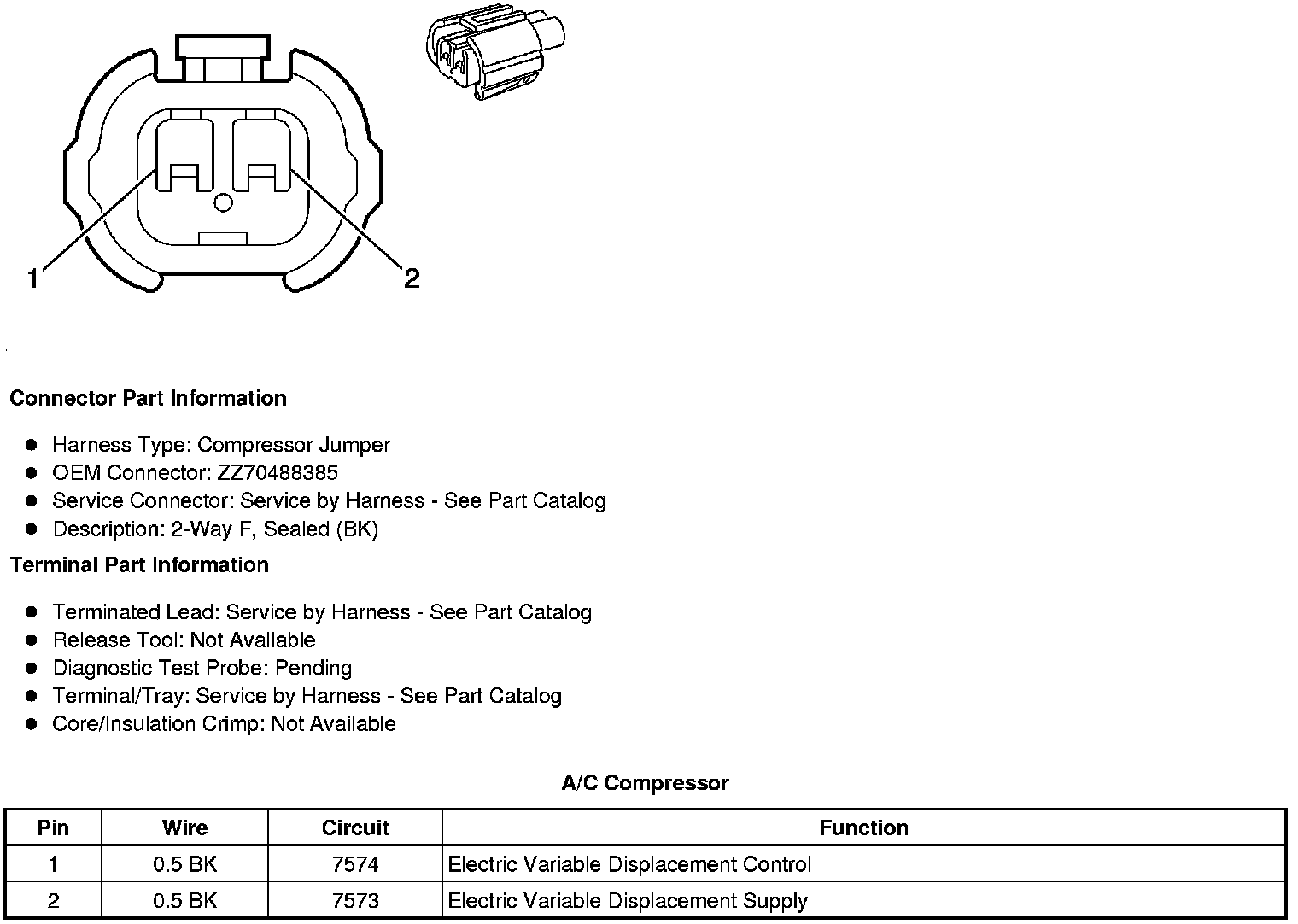

Component Connector End Views

A/C Compressor
