Collision Avoidance Sensor
Collision Avoidance Sensor
Component Connector End Views

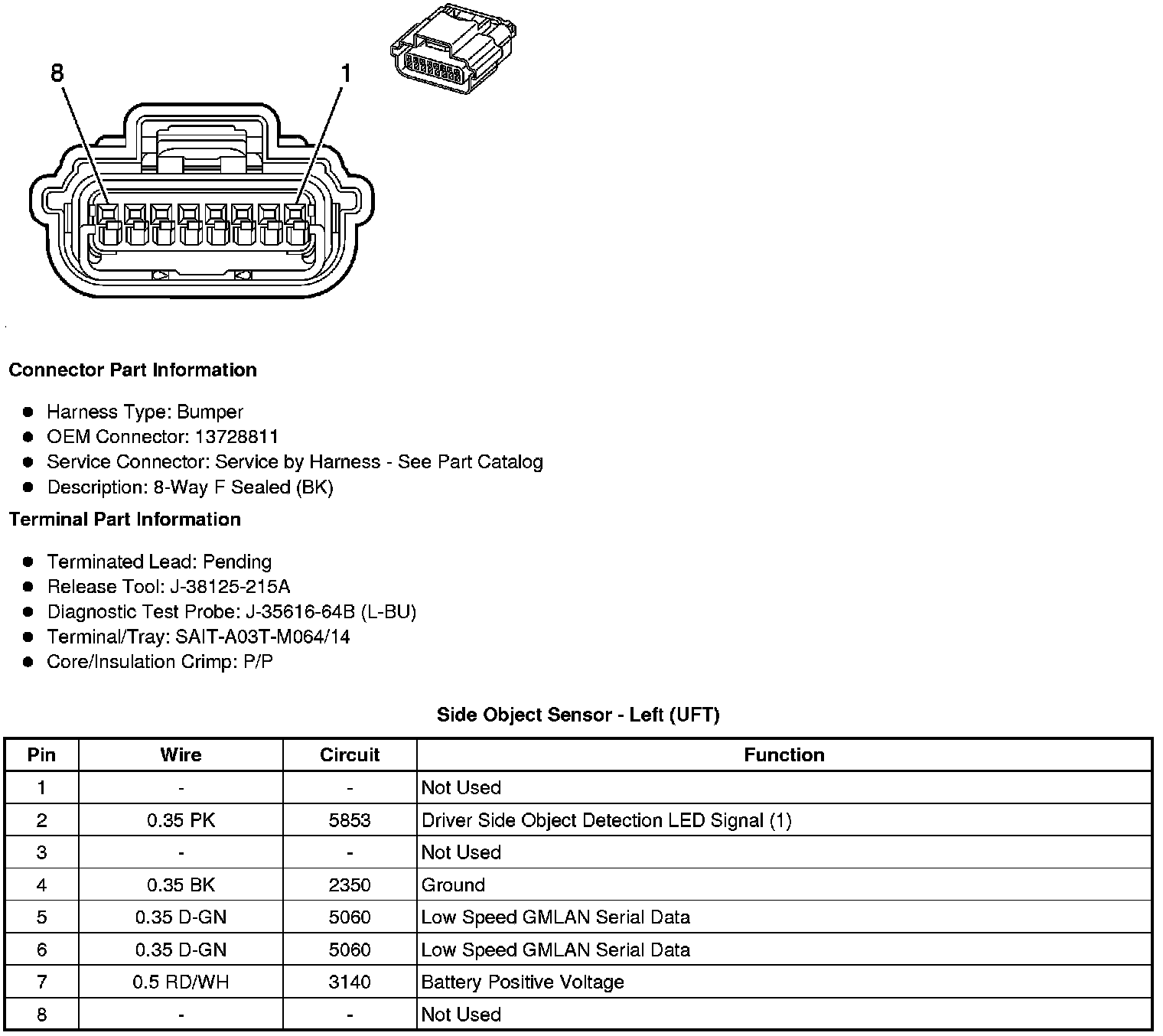

B94L Side Object Sensor - Left (UFT)

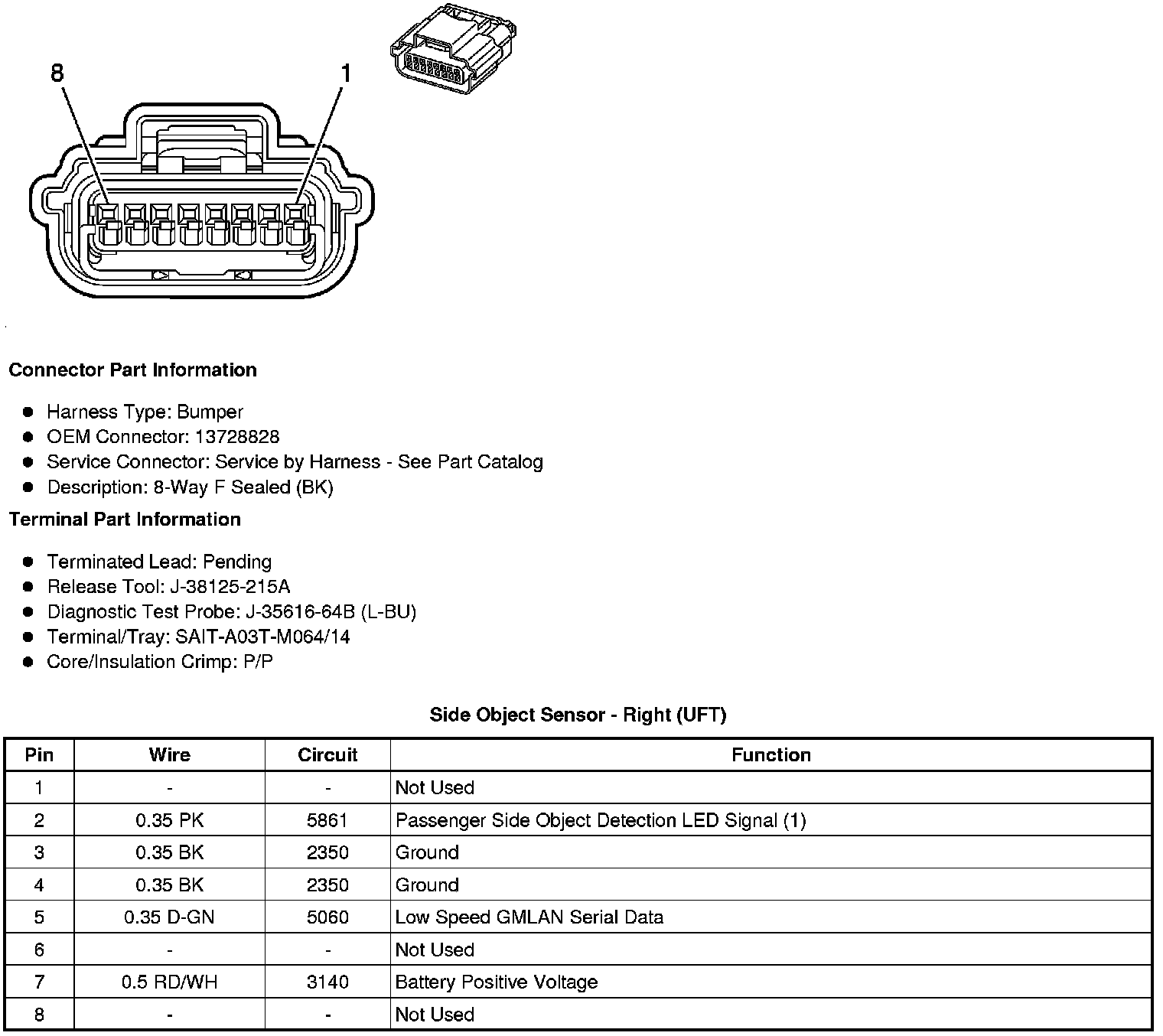

B94R Side Object Sensor - Right (UFT)
