Cabin Temperature Sensor / Switch




Component Connector End Views

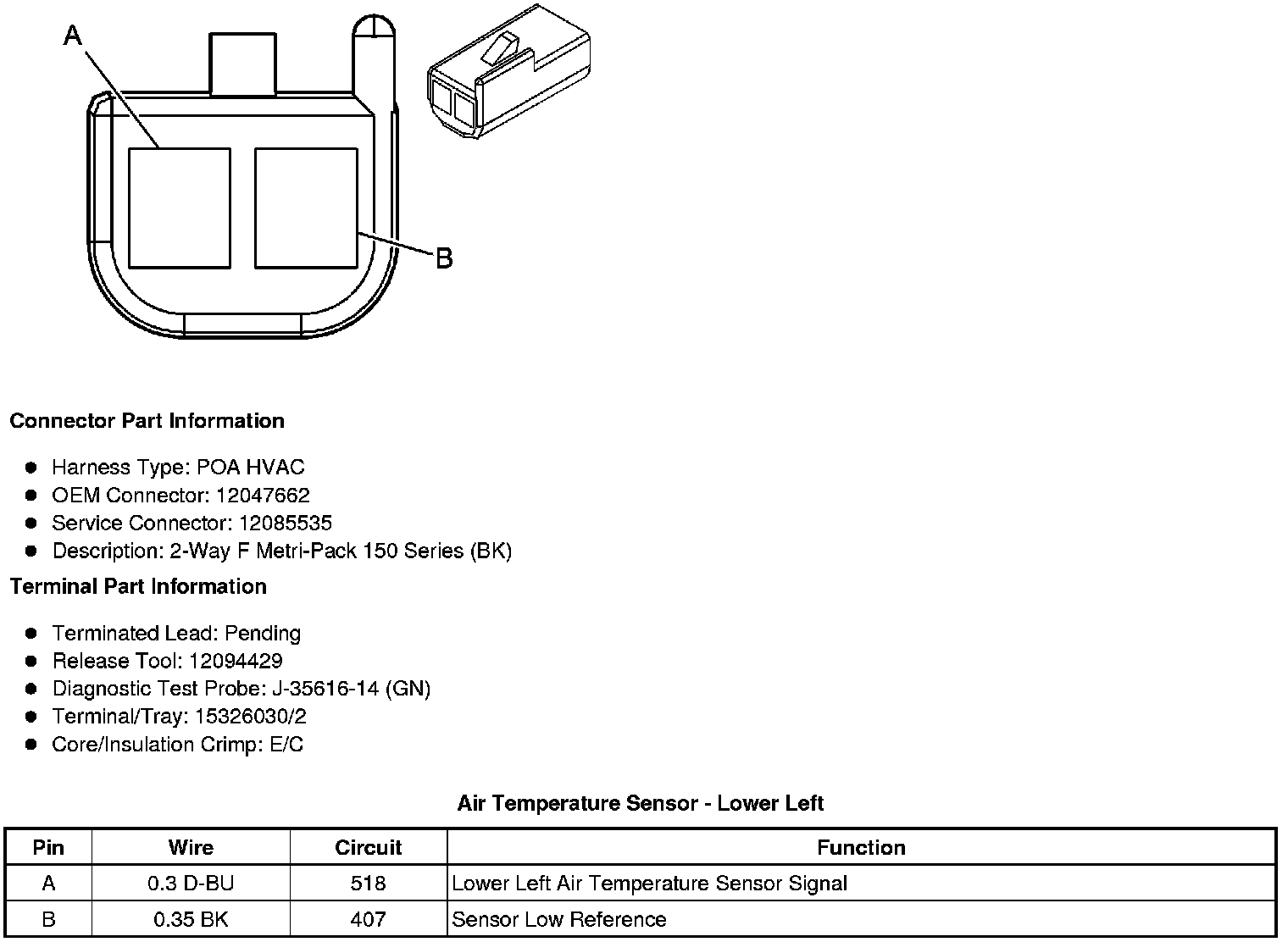

B7D Air Temperature Sensor - Duct Lower Left

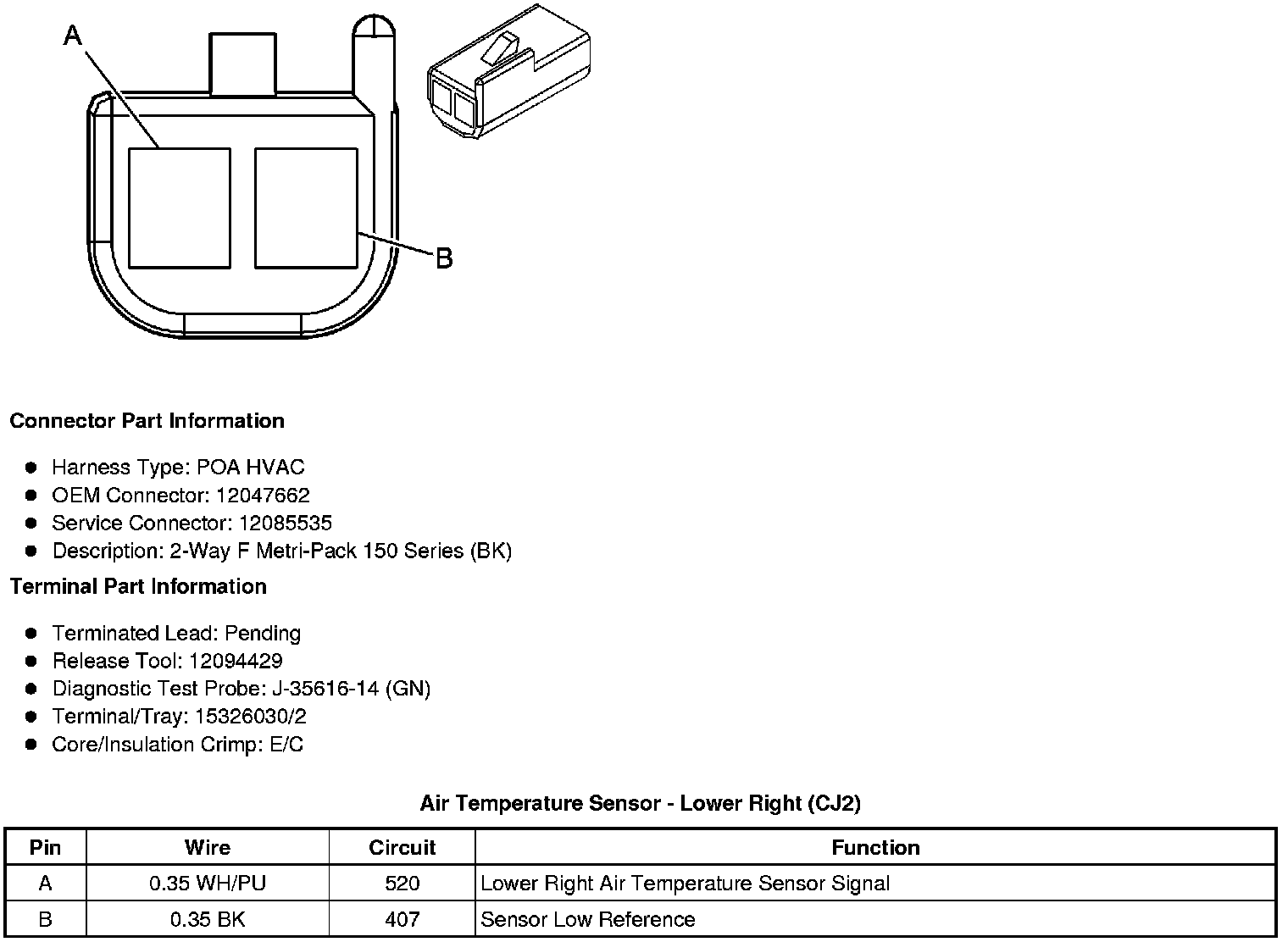

B7E Air Temperature Sensor - Duct Right Lower (CJ2)

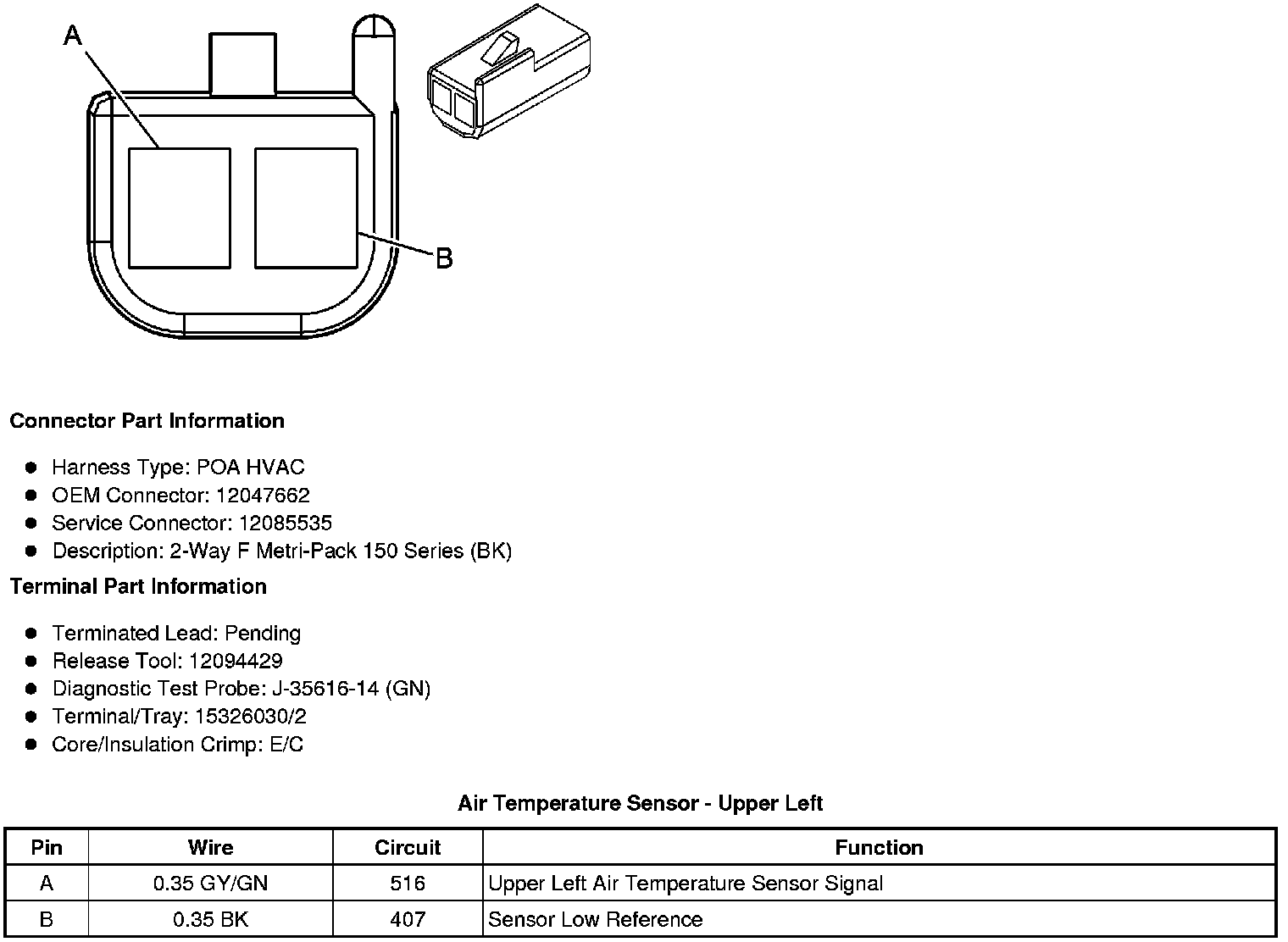

B7H Air Temperature Sensor - Duct Left Upper

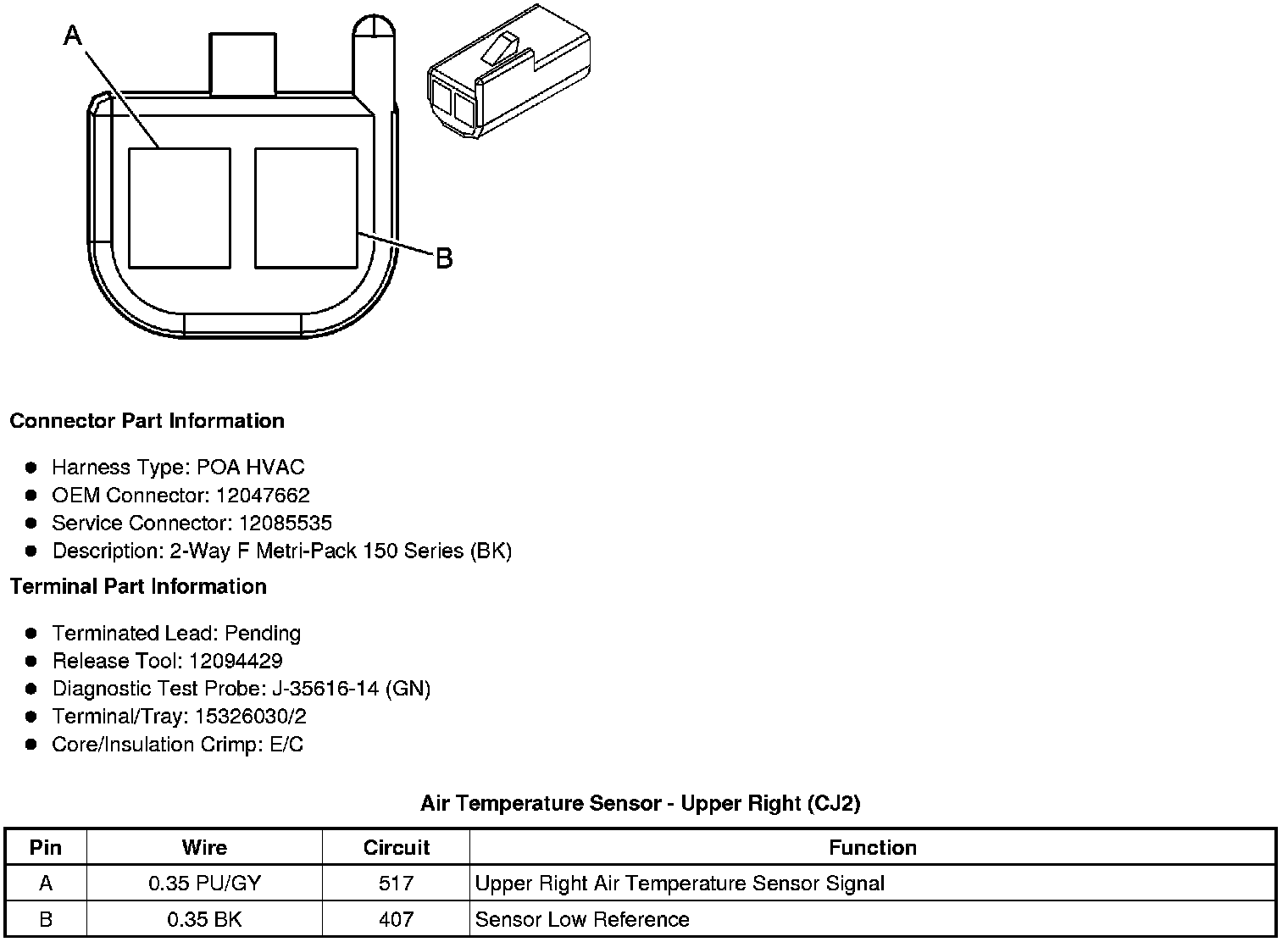

B7J Air Temperature Sensor - Duct Right Upper (CJ2)
