Amplifier, Sound System
Amplifier, Sound System
Component Connector End Views

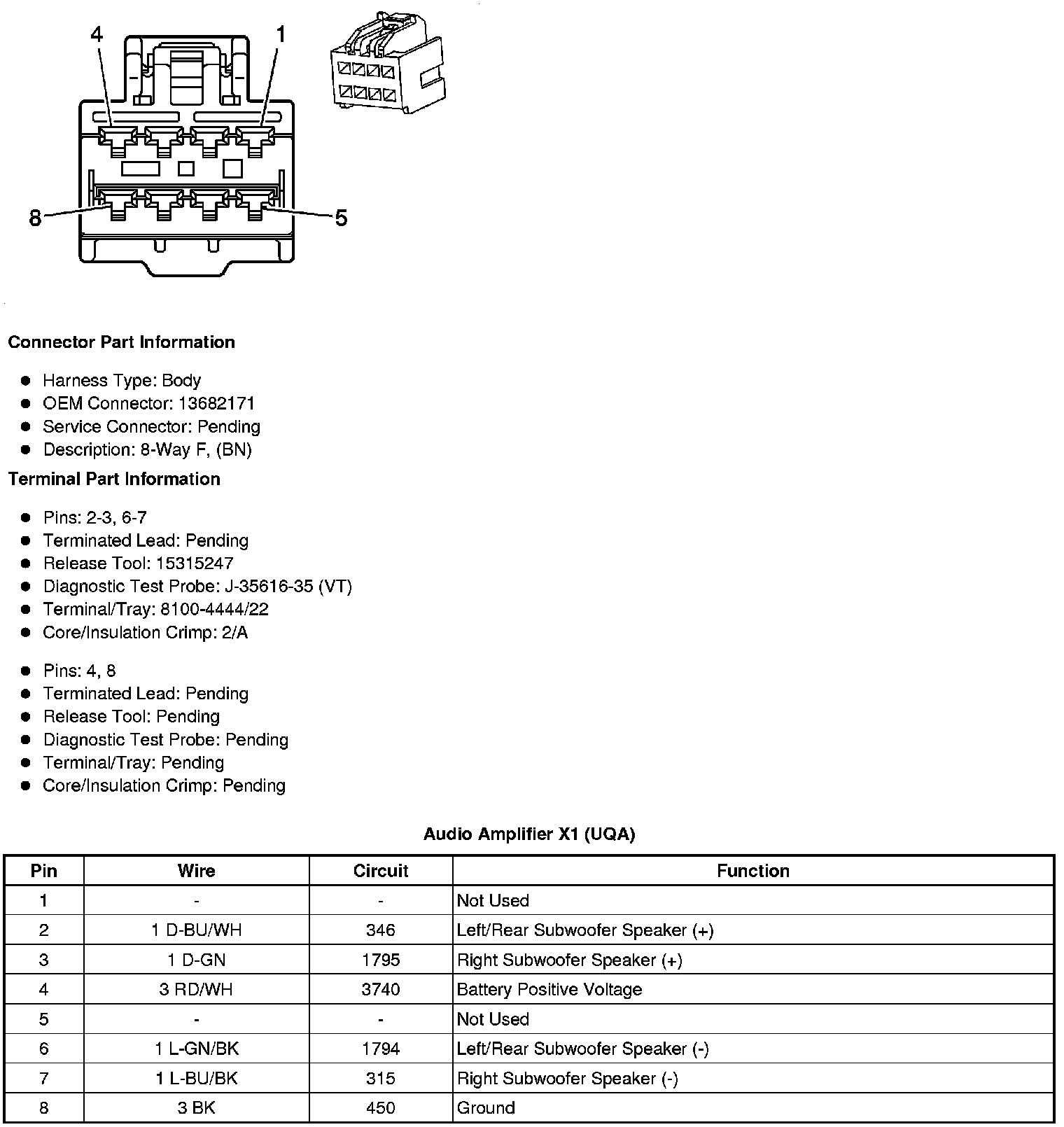

Audio Amplifier X1 (UQA)

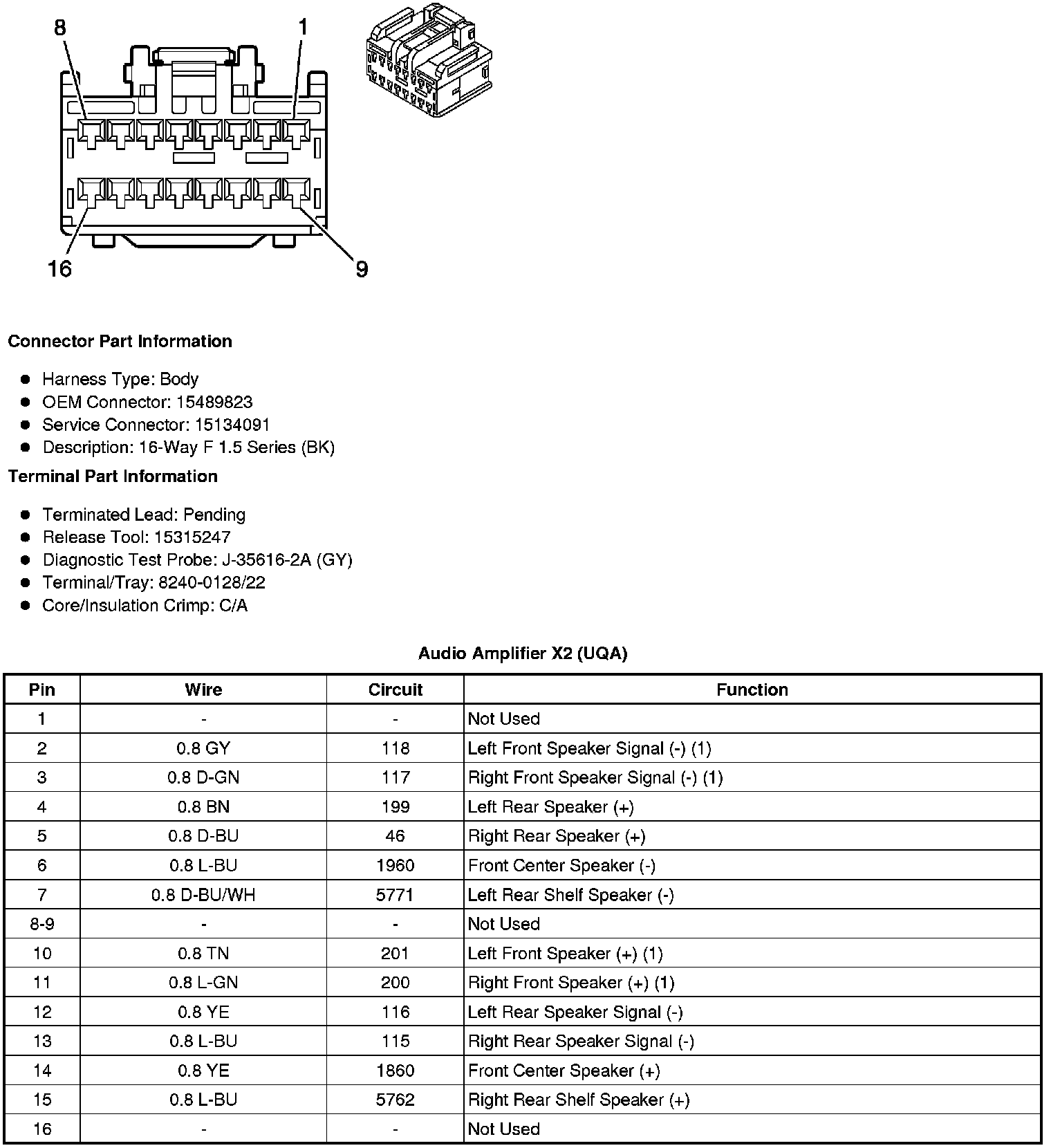

Audio Amplifier X2 (UQA)

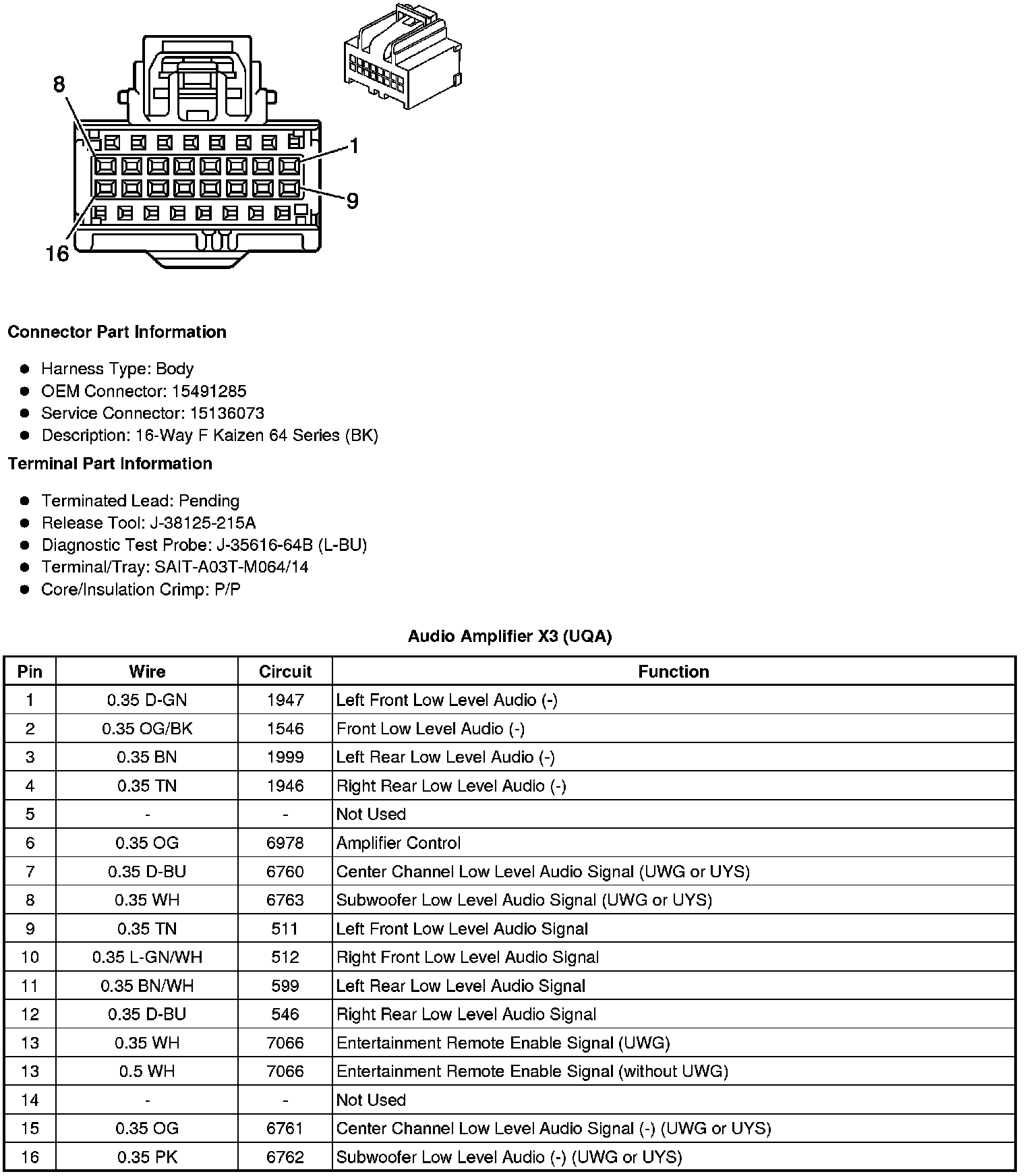

Audio Amplifier X3 (UQA)
