Transmission Mode Switch, A/T




Component Connector End Views

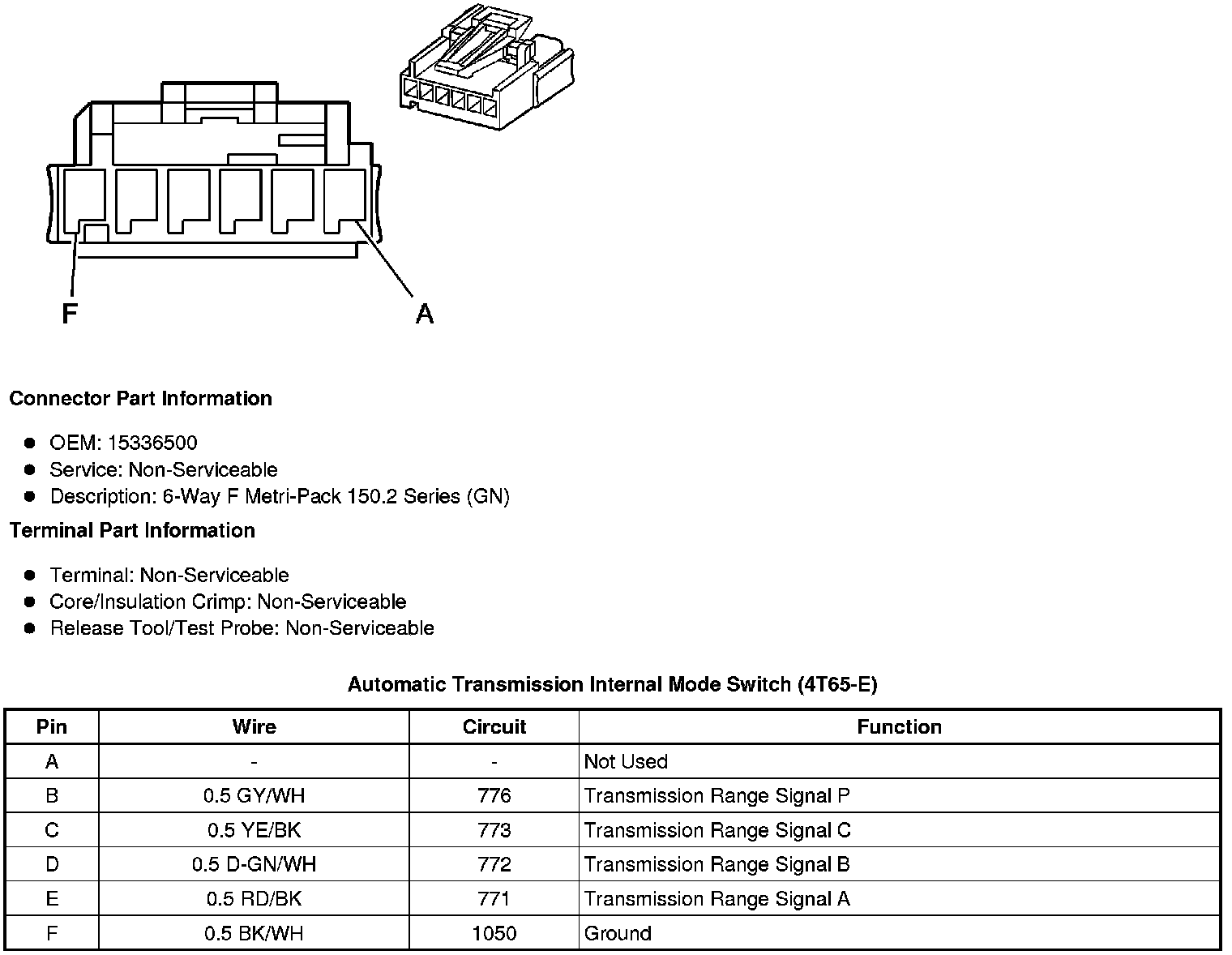

Automatic Transmission Internal Mode Switch (4T65-E)

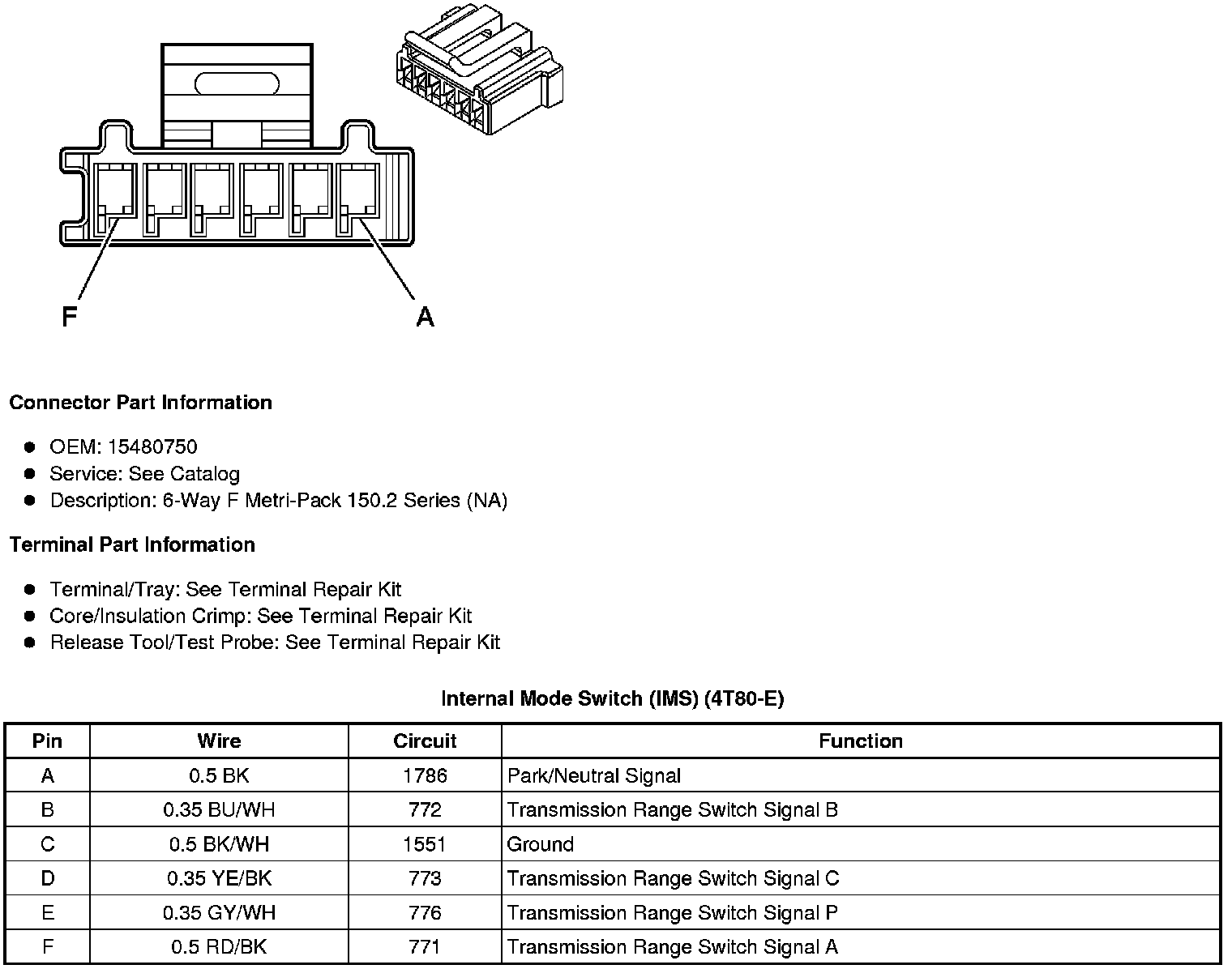

Internal Mode Switch (IMS) (4T80-E)
