Telescoping Wheel Switch




Component Connector End Views

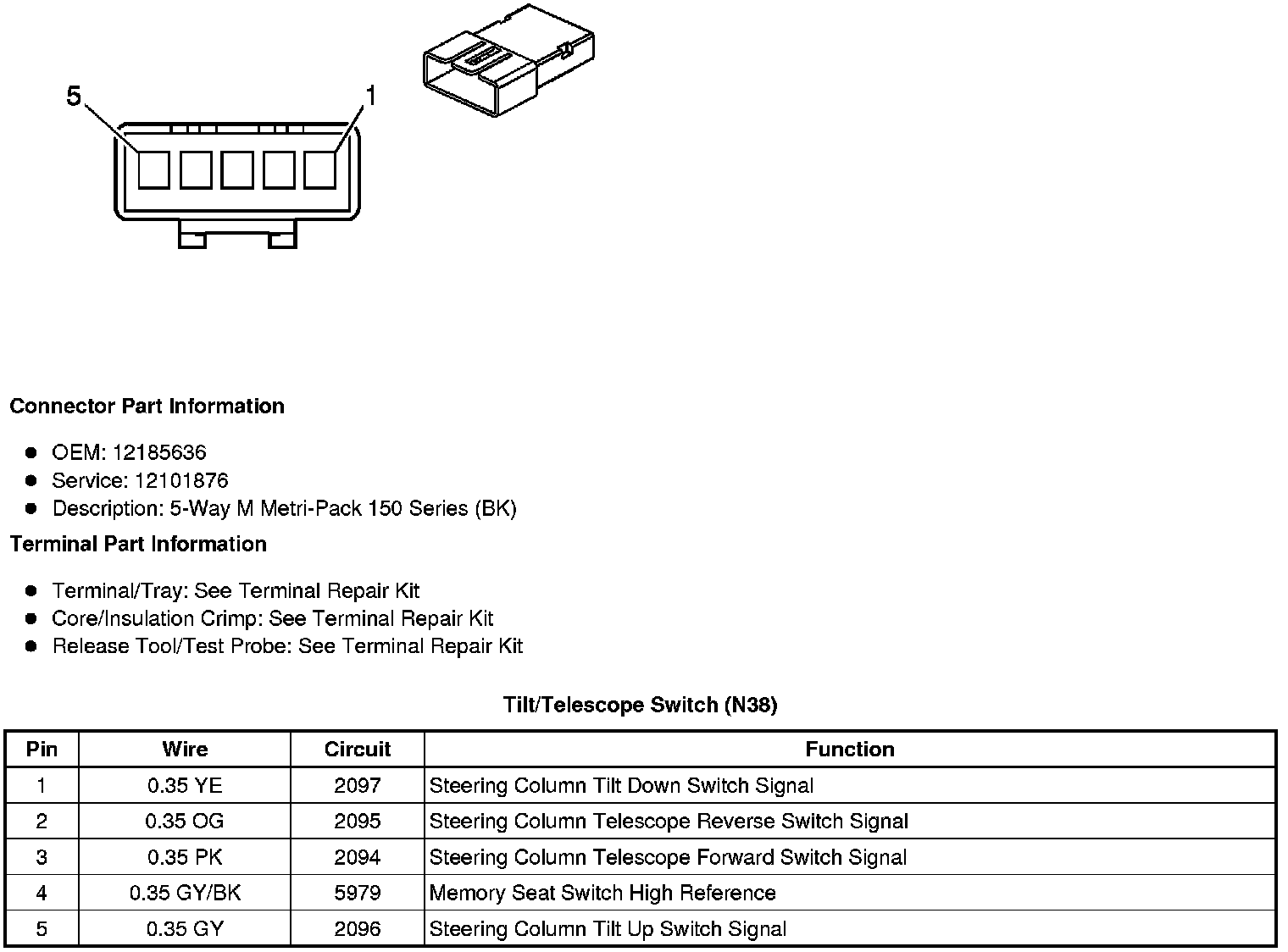

Tilt/Telescope Switch (N38)






Telescoping Actuator X1 (N38)






Telescoping Actuator X2 (N38)
