Home
>>
Buick
>>
2009
>>
Lucerne V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Solar Sensor, HVAC
Solar Sensor, HVAC

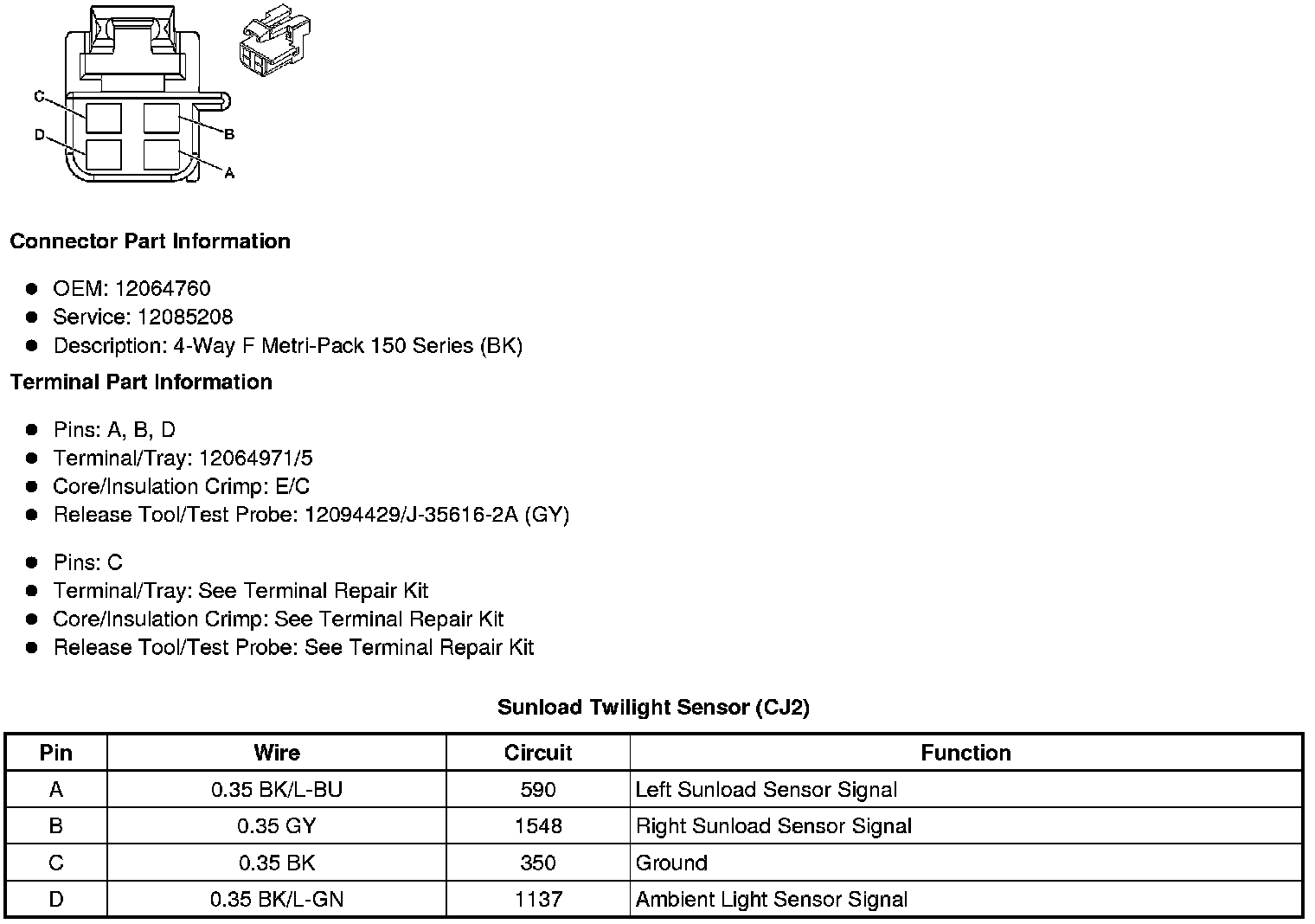

Component Connector End Views
Sunload Twilight Sensor (CJ2)
