Home >> Buick >> 2009 >> Lucerne V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Position Sensor

Seat Position Sensor

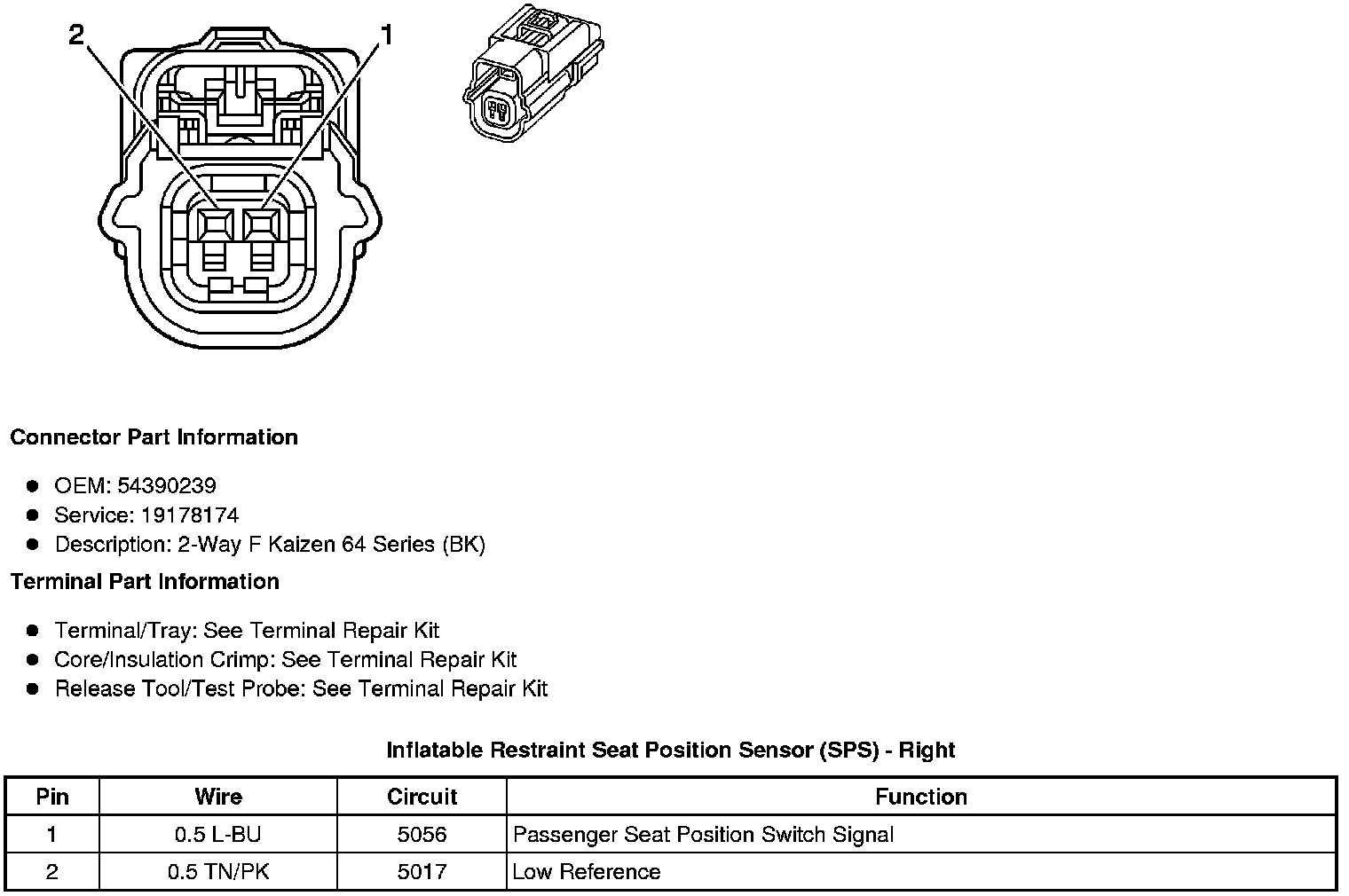

Component Connector End Views

Inflatable Restraint Seat Position Sensor (SPS) - Right
