Power Window Switch




Component Connector End Views

Window Switch - Left Rear Door

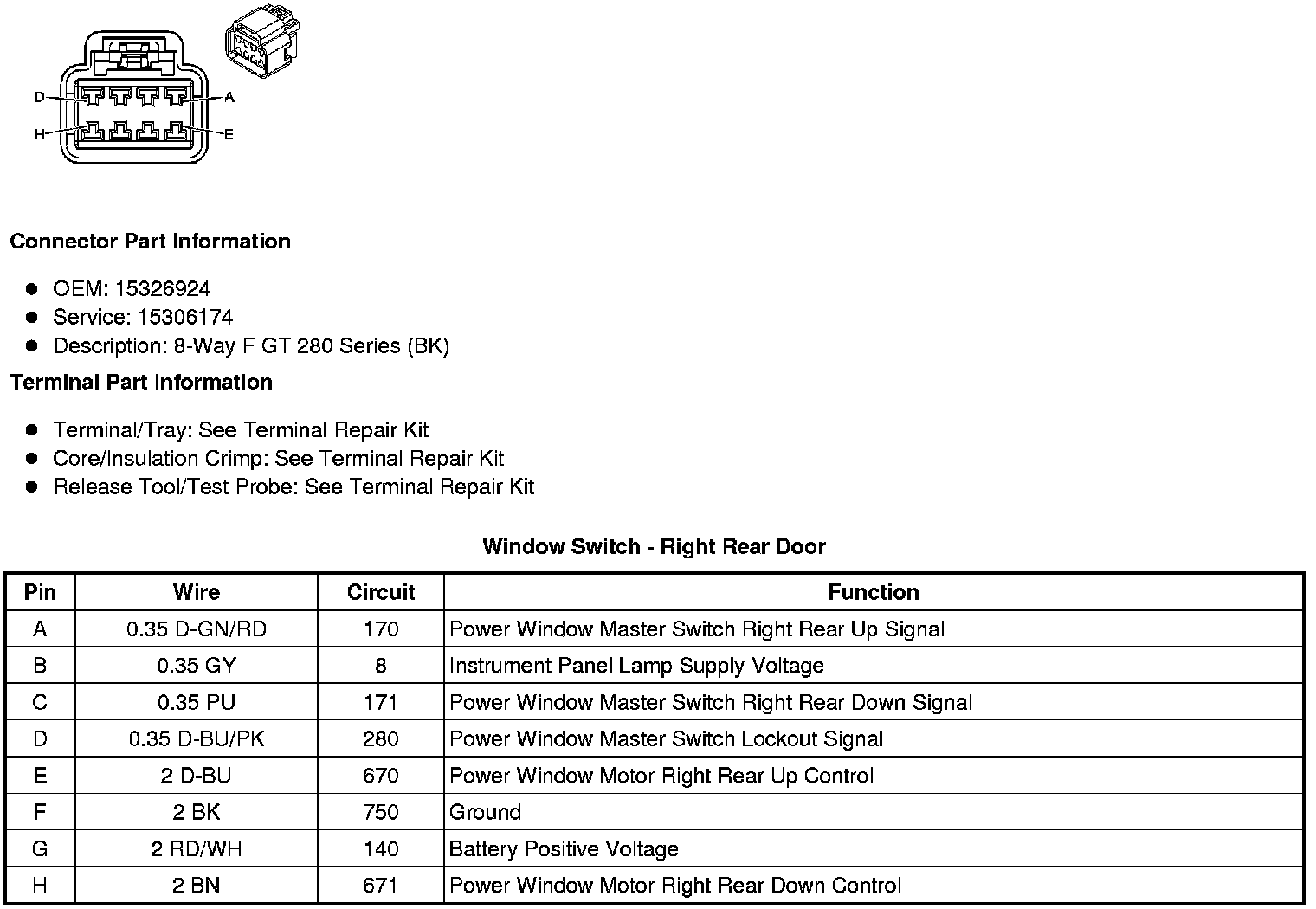

Window Switch - Right Rear Door
