Oxygen Sensor: Diagrams

Component Connector End Views

Heated Oxygen Sensor (HO2S) 1 (L26 without NU6)

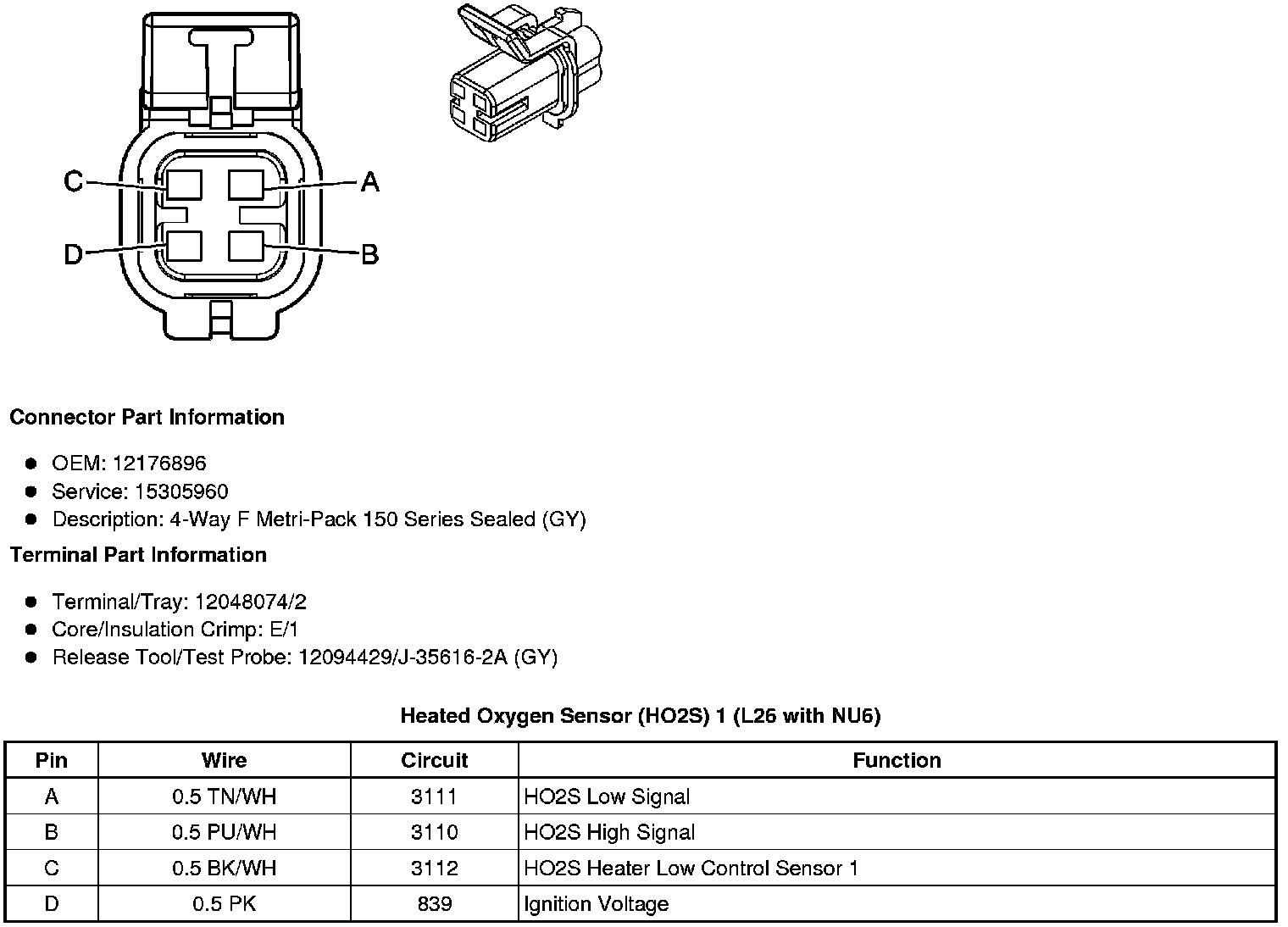

Heated Oxygen Sensor (HO2S) 1 (L26 with NU6)

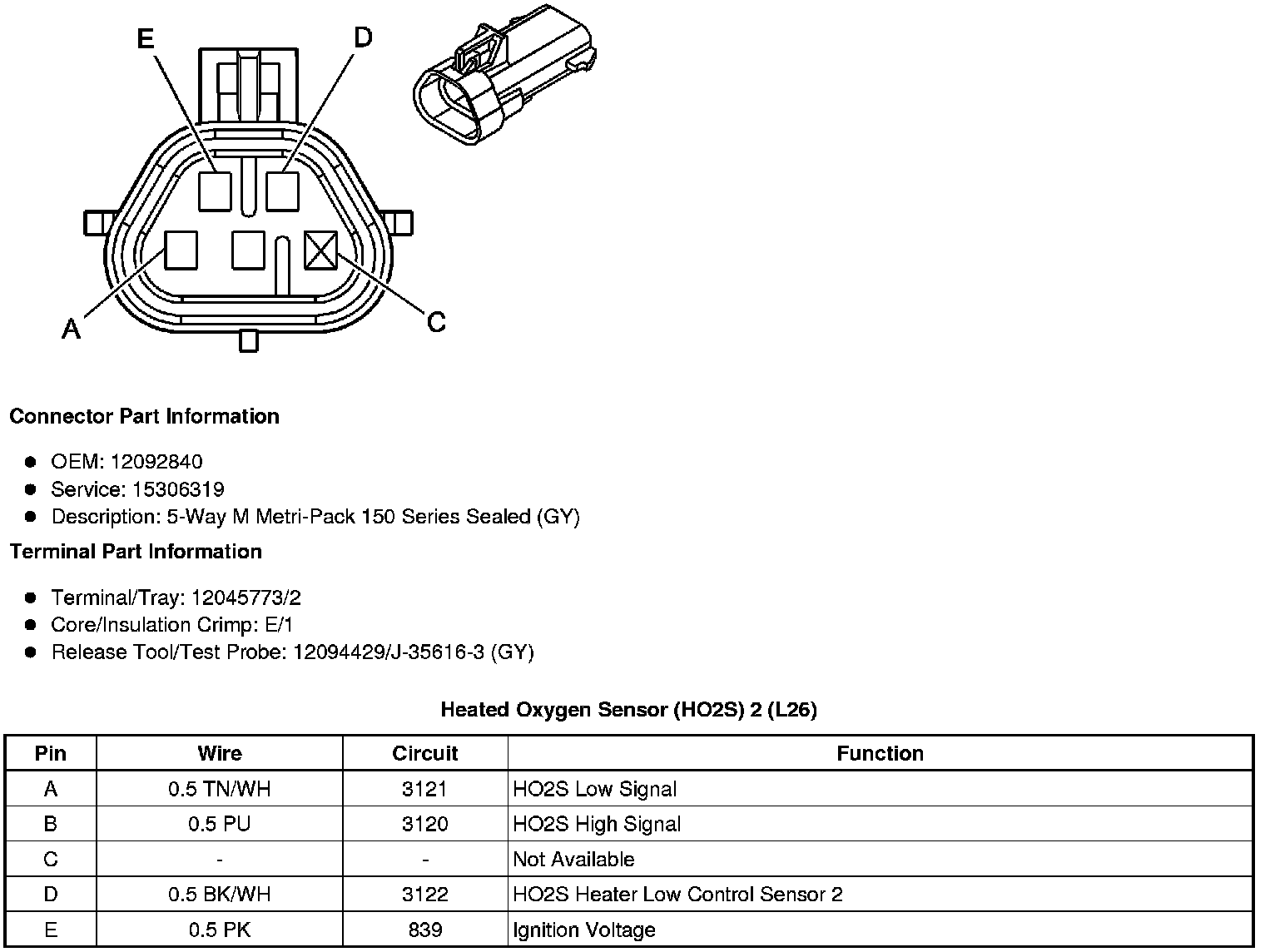

Heated Oxygen Sensor (HO2S) 2 (L26)
