Impact Sensor




Component Connector End Views

Inflatable Restraint Front End Sensor - Left






Inflatable Restraint Front End Sensor - Right

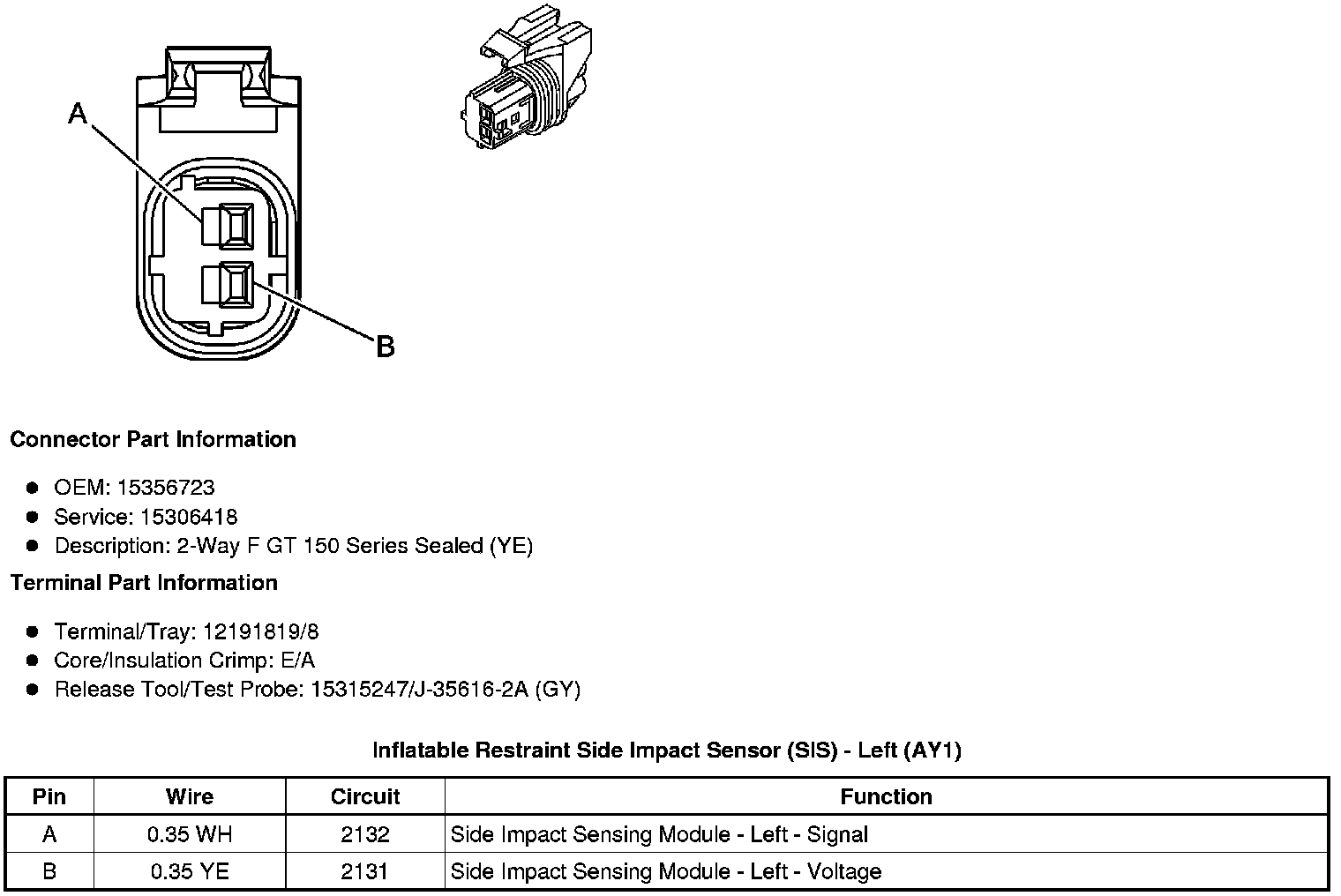

Inflatable Restraint Side Impact Sensor (SIS) - Left (AY1)

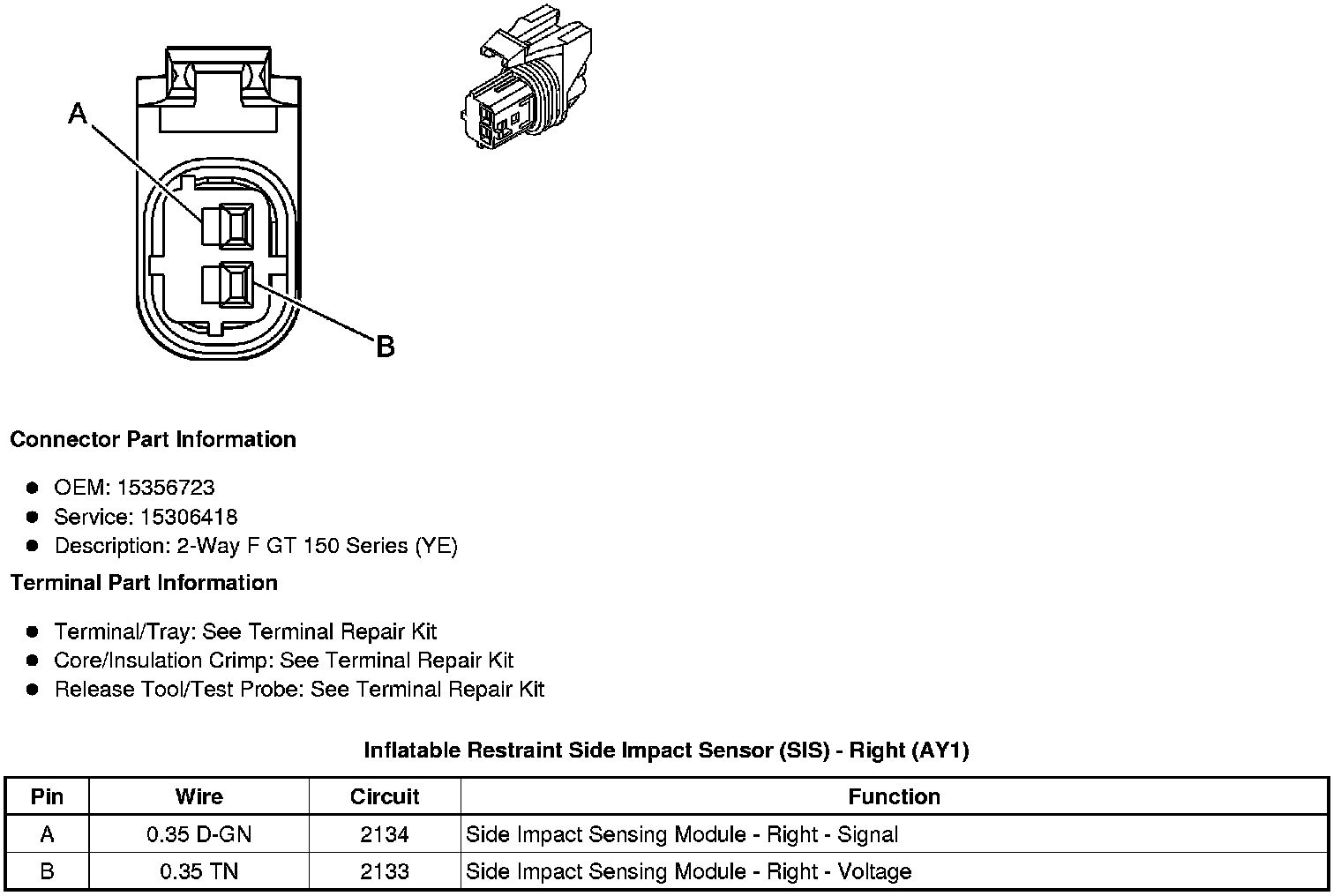

Inflatable Restraint Side Impact Sensor (SIS) - Right (AY1)
