Knock Sensor: Diagrams
Component Connector End Views
Knock Sensor (KS) 1 (LD8/L37/4.6L)

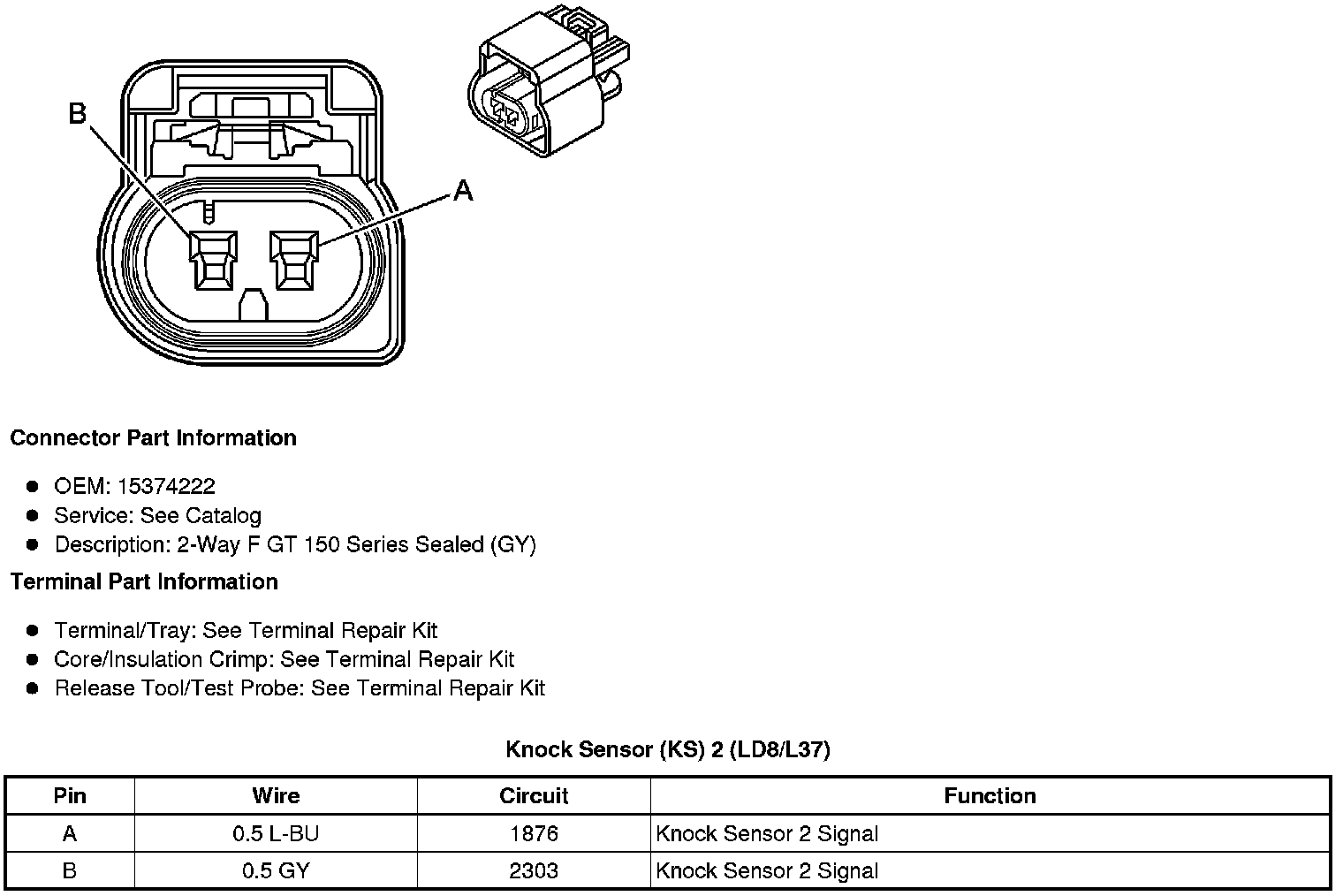

Knock Sensor (KS) 2 (LD8/L37/4.6L)
