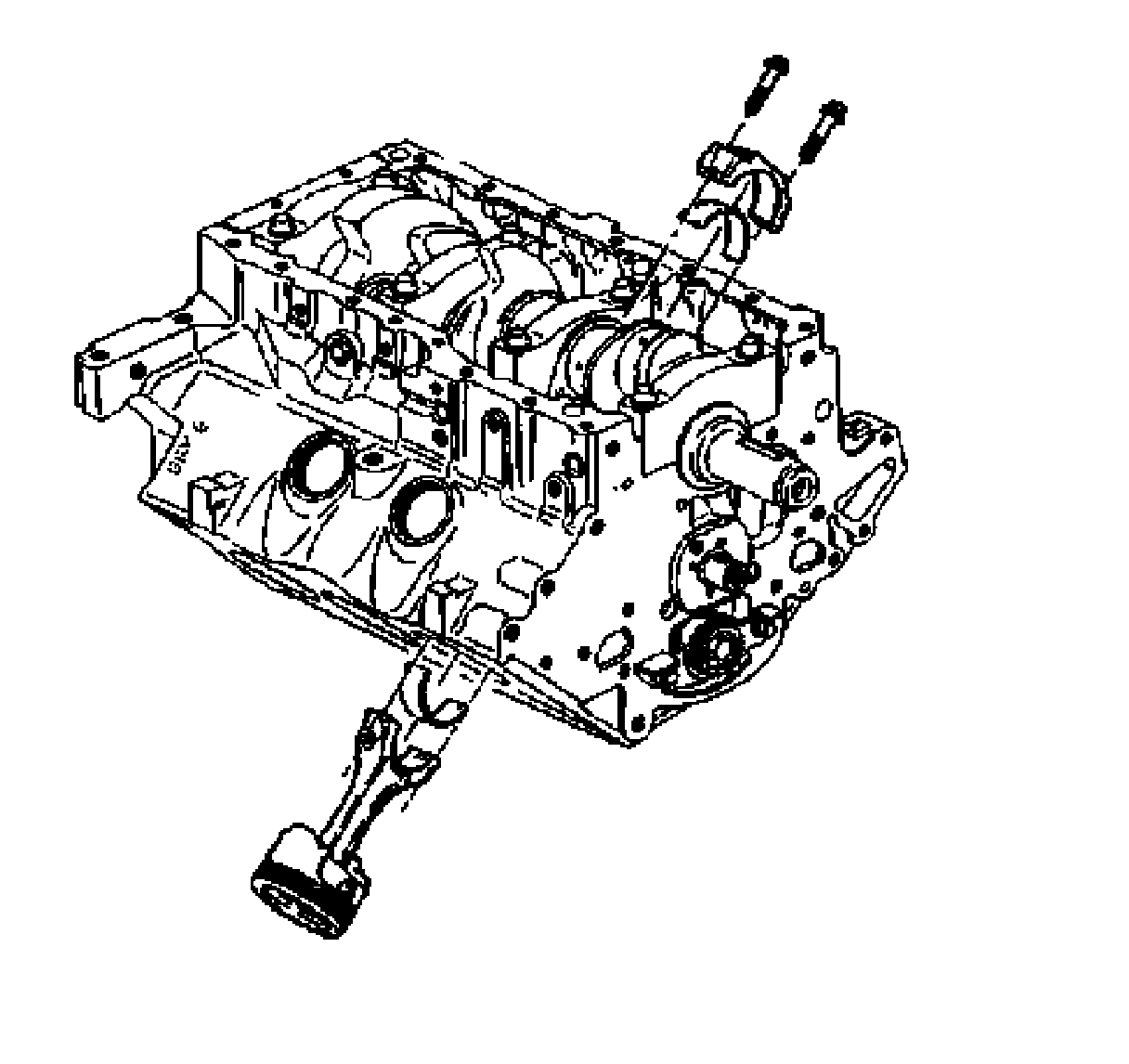

Connecting Rod Bearing





Connecting Rod Bearing Cap Bolts
First Pass 27 N.m (20 lb ft)
Final Pass 50 degrees

Connecting Rod Bearing Clearence 0.0127-0.0660 mm (0.0005-0.0026 in)
