Oxygen Sensor: Diagrams



Component Connector End Views

Heated Oxygen Sensor (HO2S) 1 (L26/3.8L)

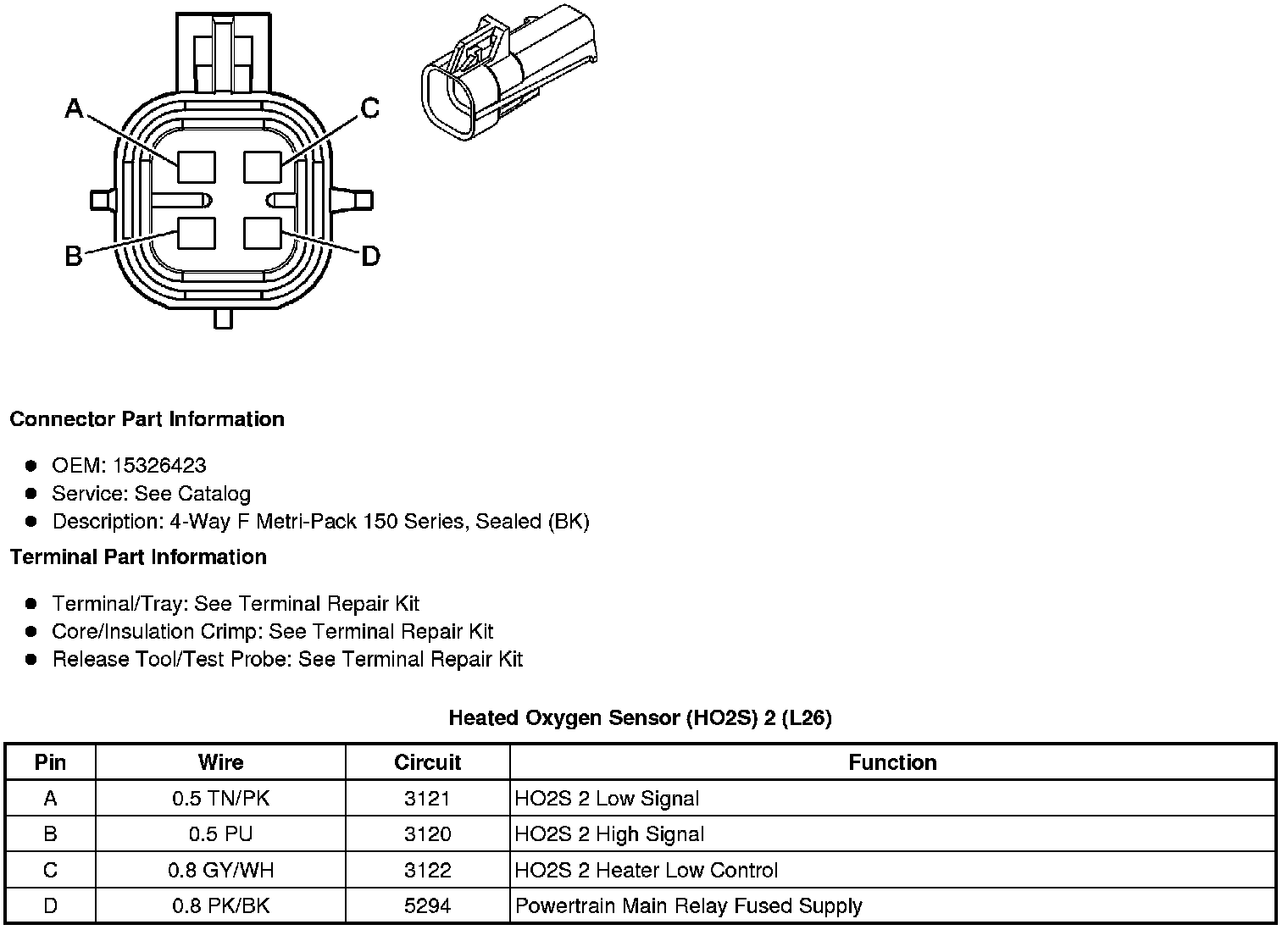

Heated Oxygen Sensor (HO2S) 2 (L26/3.8L)
