Door Control Module Schematics



Door Control Module Schematics

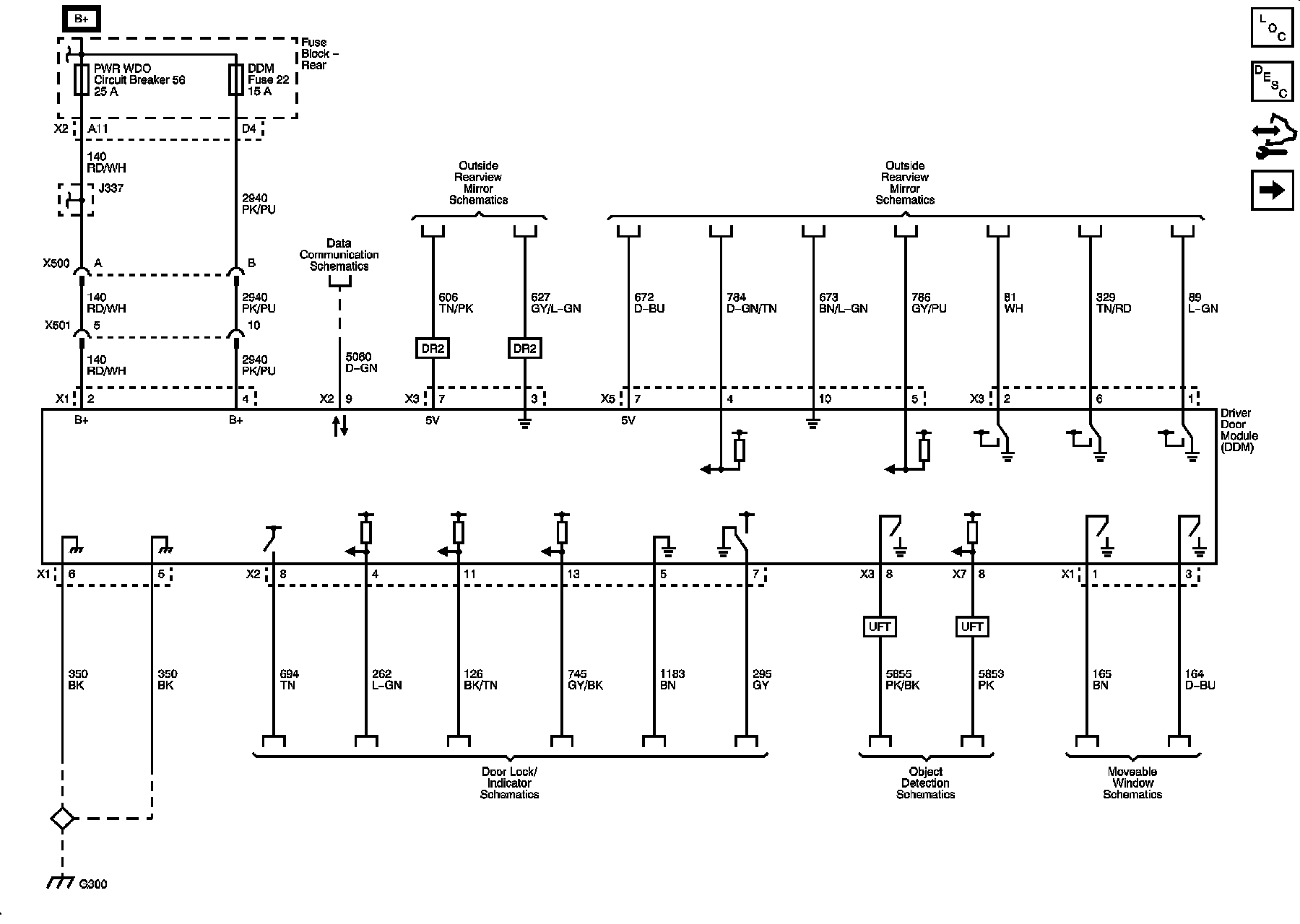

Driver Door Module (DDM)

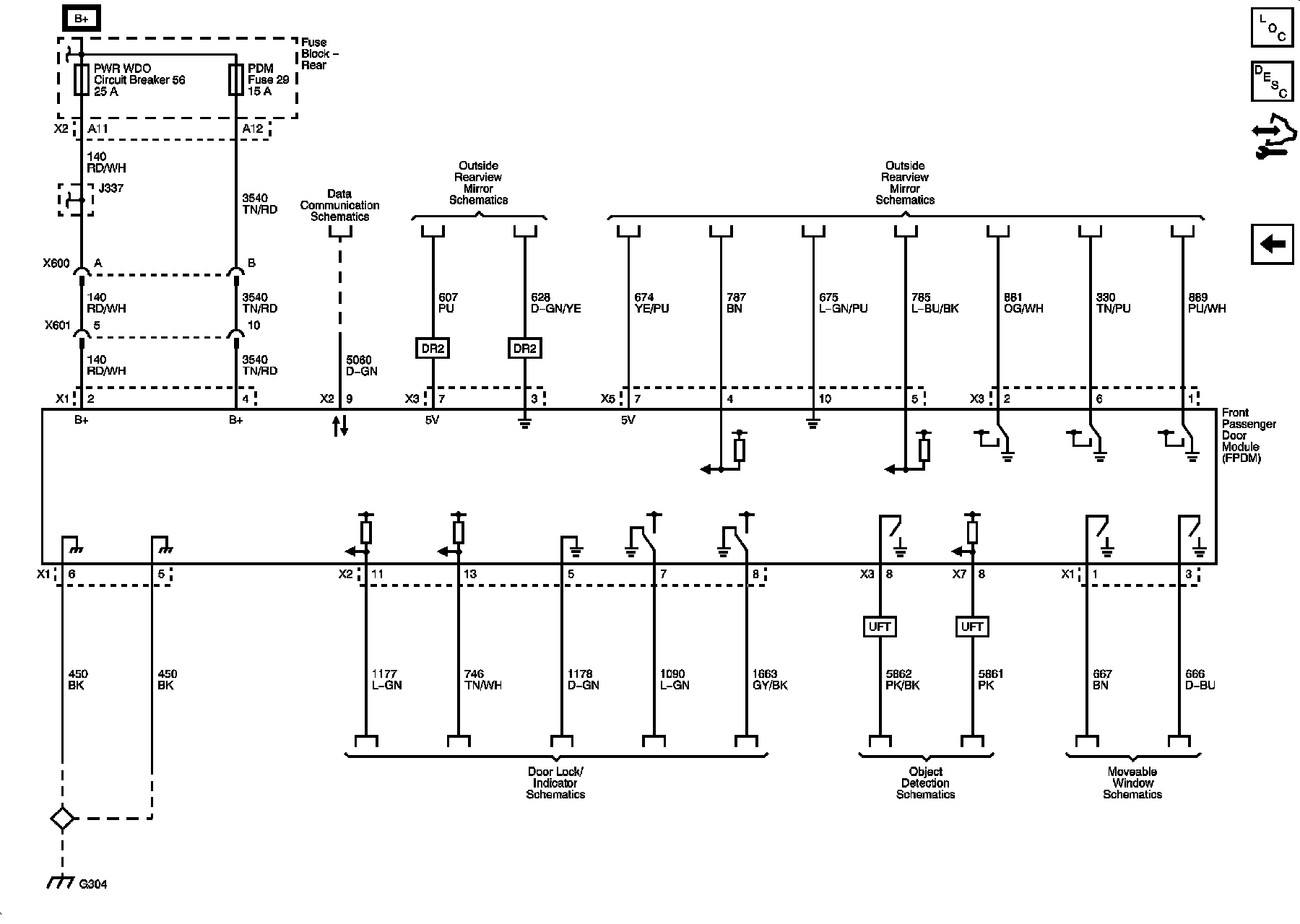

Front Passenger Door Module (FPDM)
