Suspension Control Pressure Sensor/Switch



Component Connector End Views

Suspension Damper - Left Front (F55)

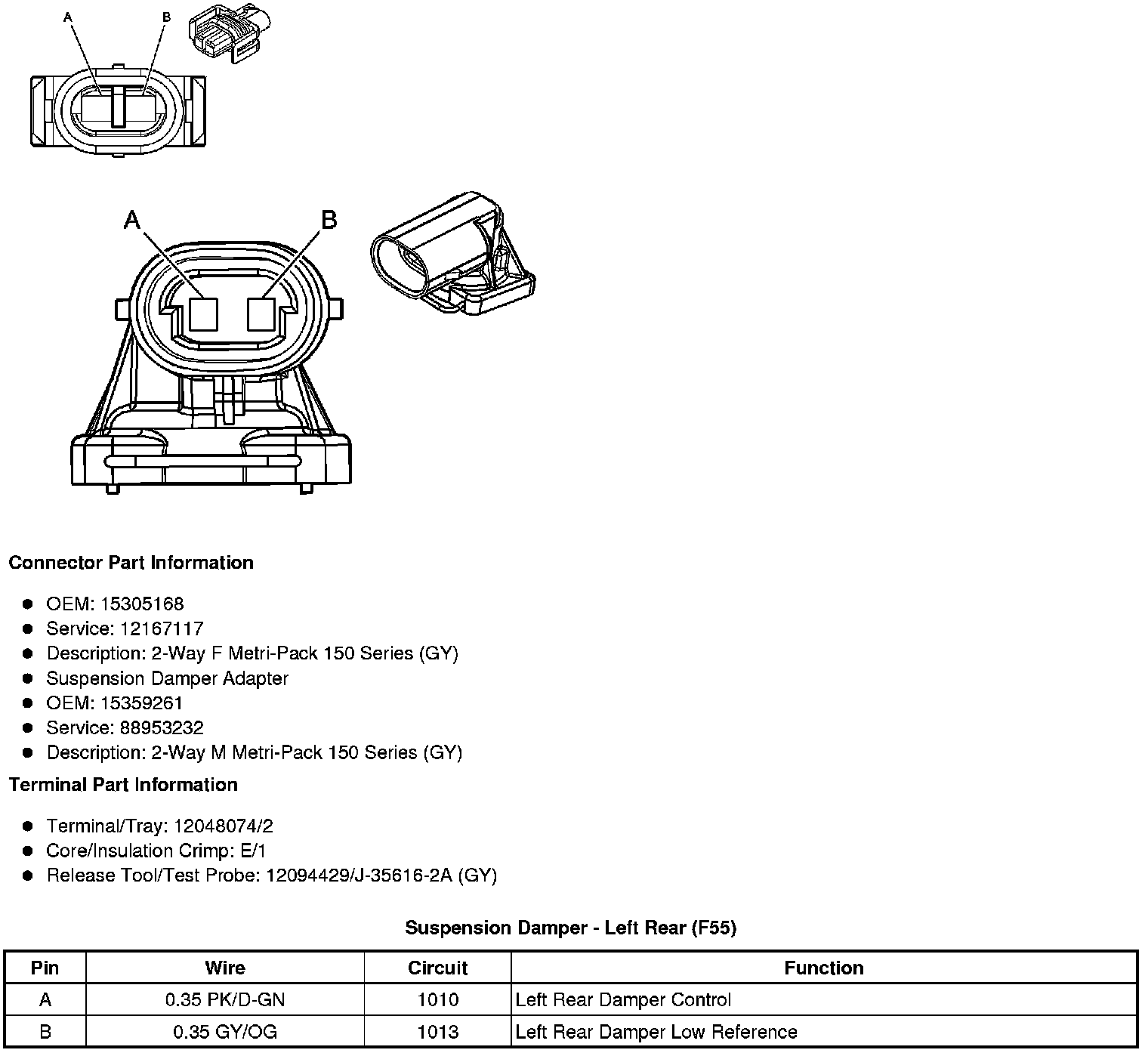

Suspension Damper - Left Rear (F55)





Suspension Damper - Right Front (F55)

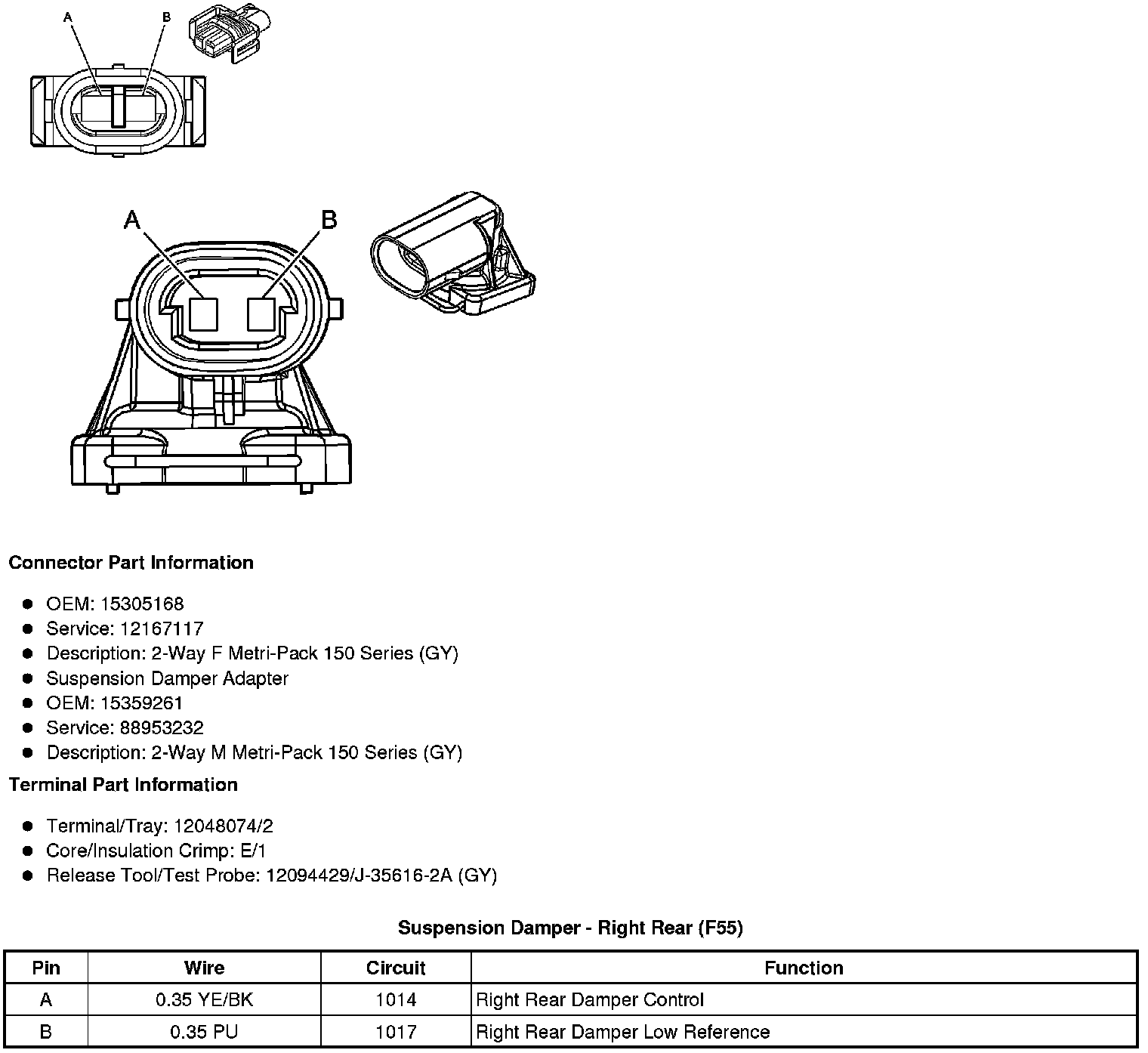

Suspension Damper - Right Rear (F55)
