Steering Mounted Controls Assembly



Component Connector End Views

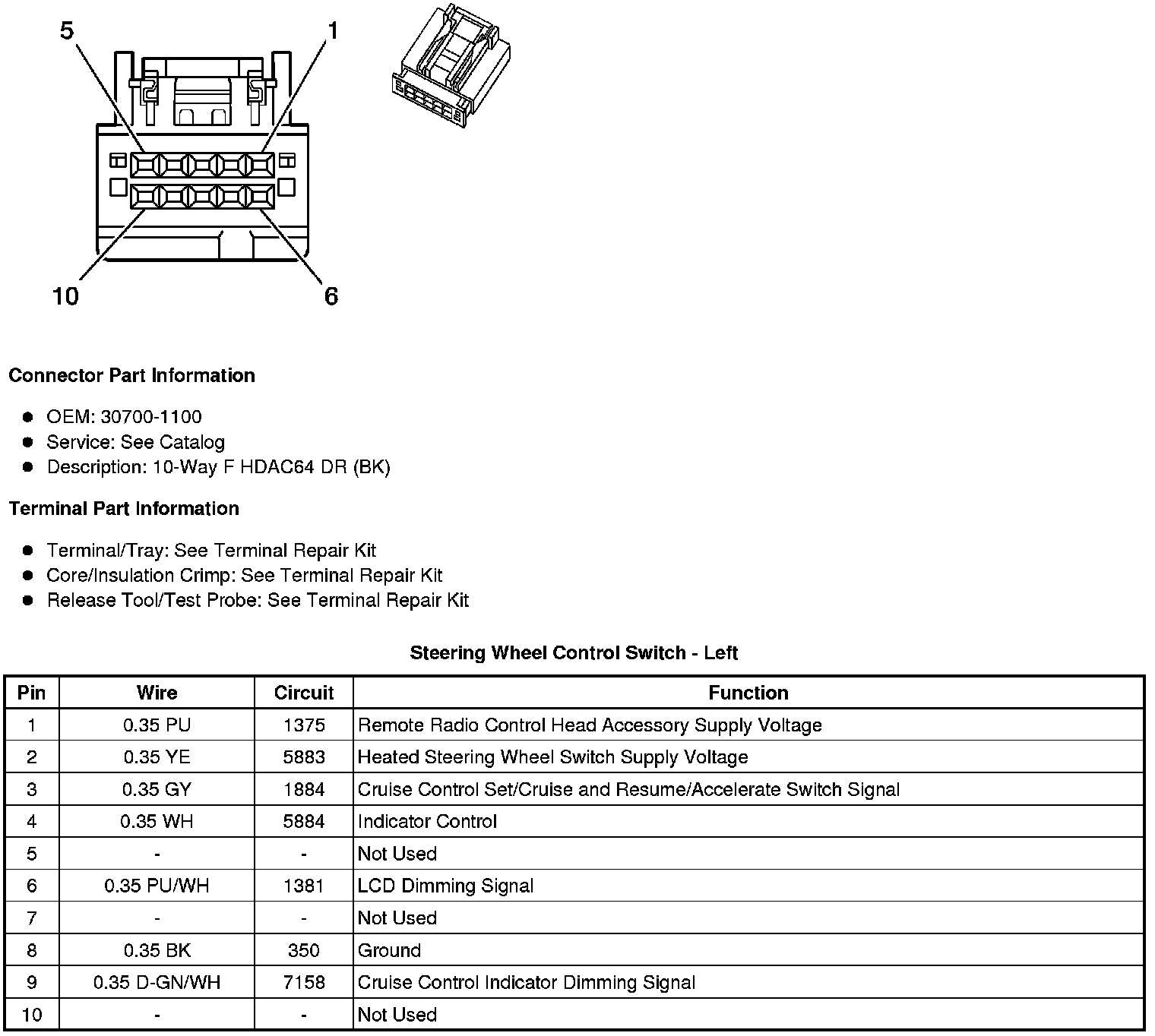

Steering Wheel Control Switch - Left

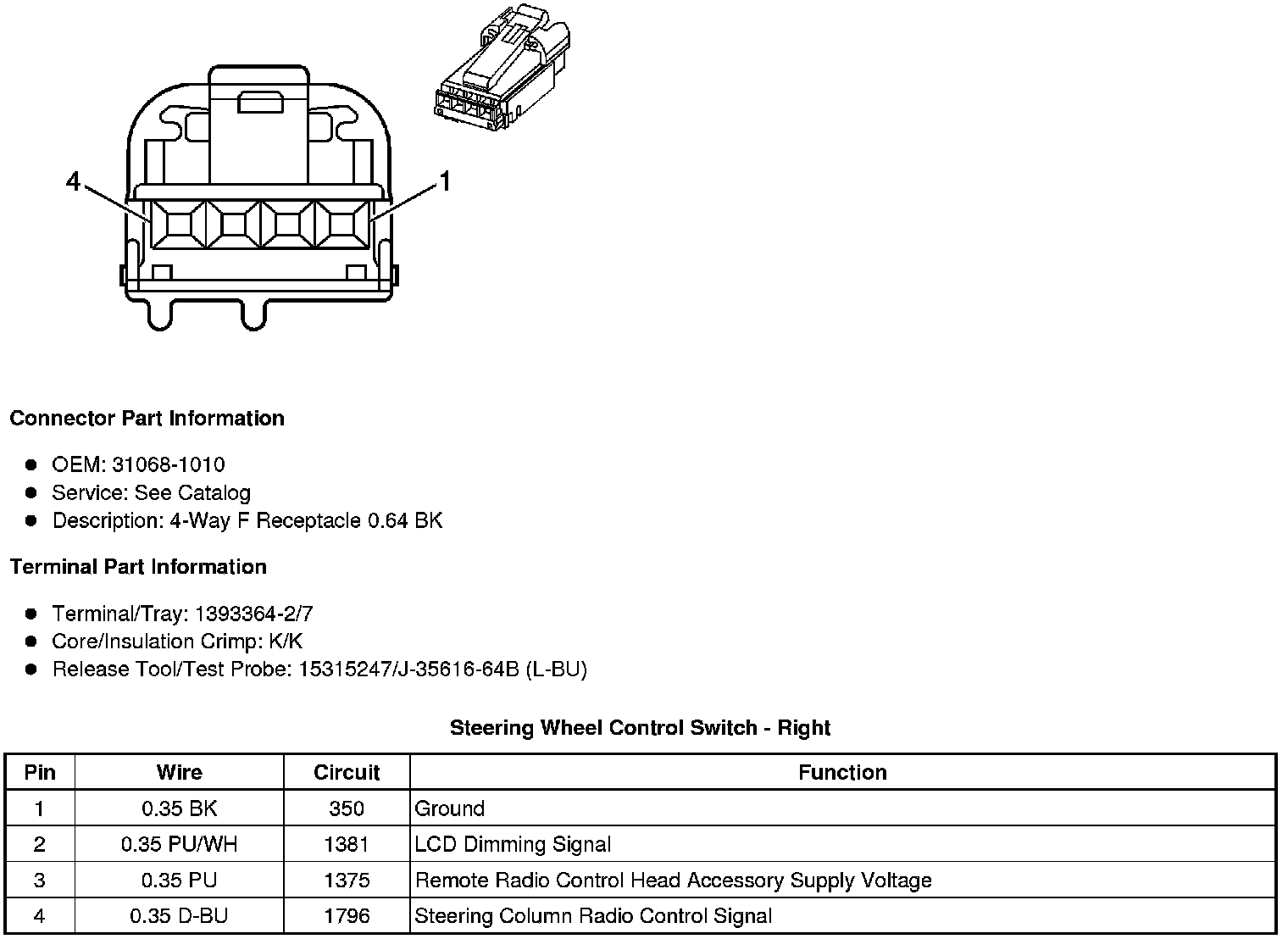

Steering Wheel Control Switch - Right
