Home >> Buick >> 2008 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch



Component Connector End Views

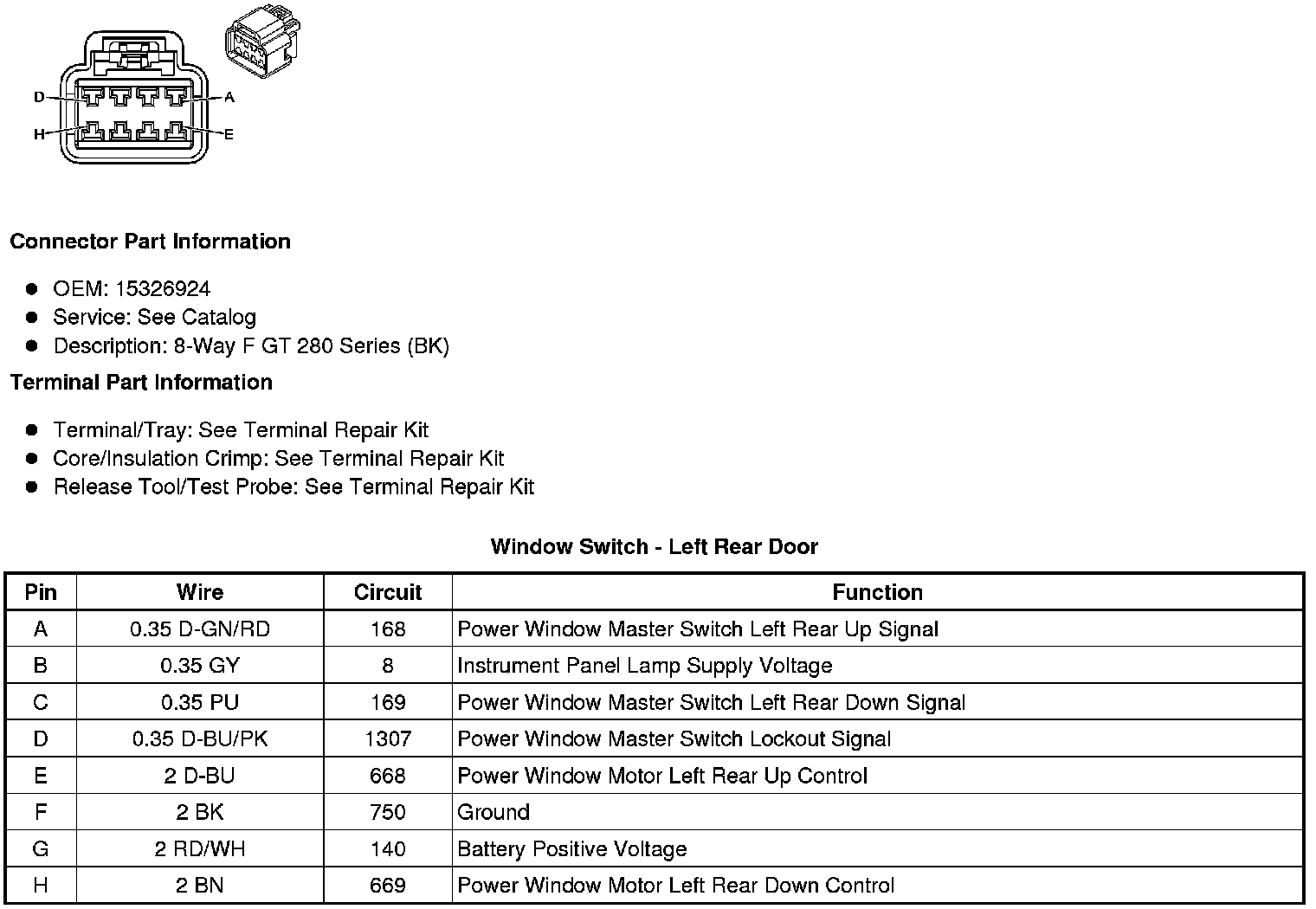

Window Switch - Left Rear Door





Window Switch - Right Rear Door
