Compressor Clutch
Compressor Clutch
Component Connector End Views
A/C Compressor Clutch (C67)

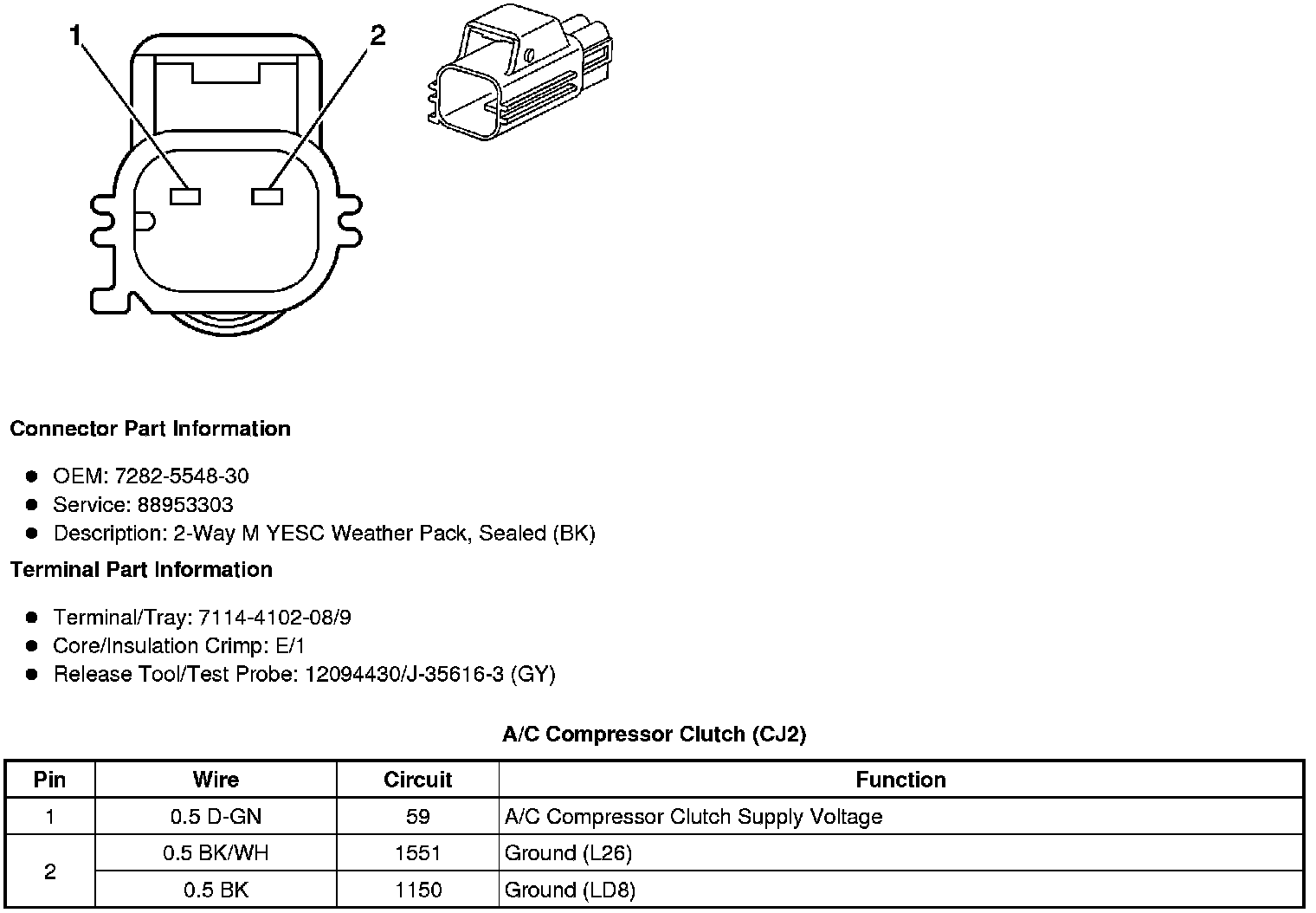

A/C Compressor Clutch (CJ2)
