Electronic Brake Control Module



Component Connector End Views

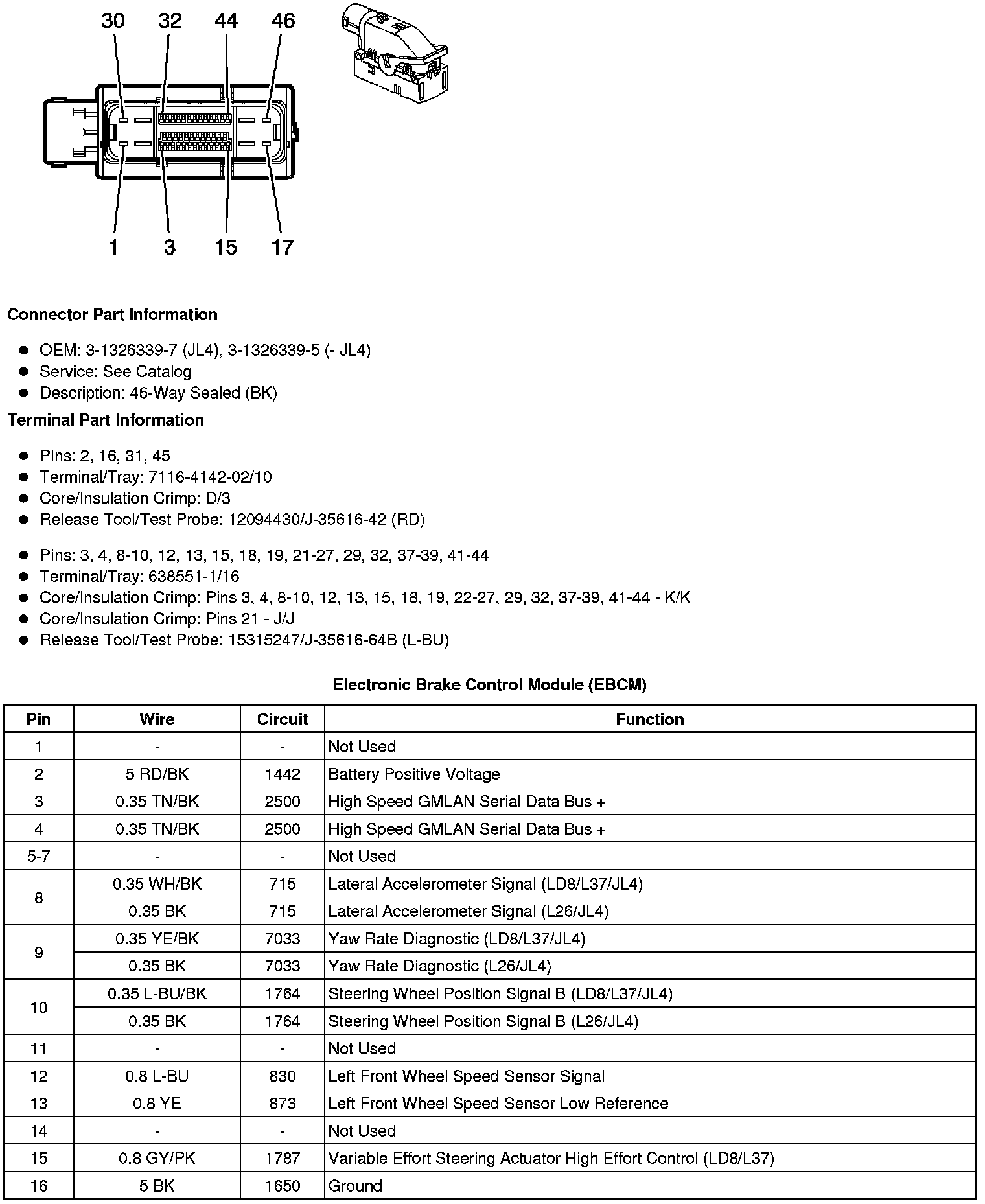

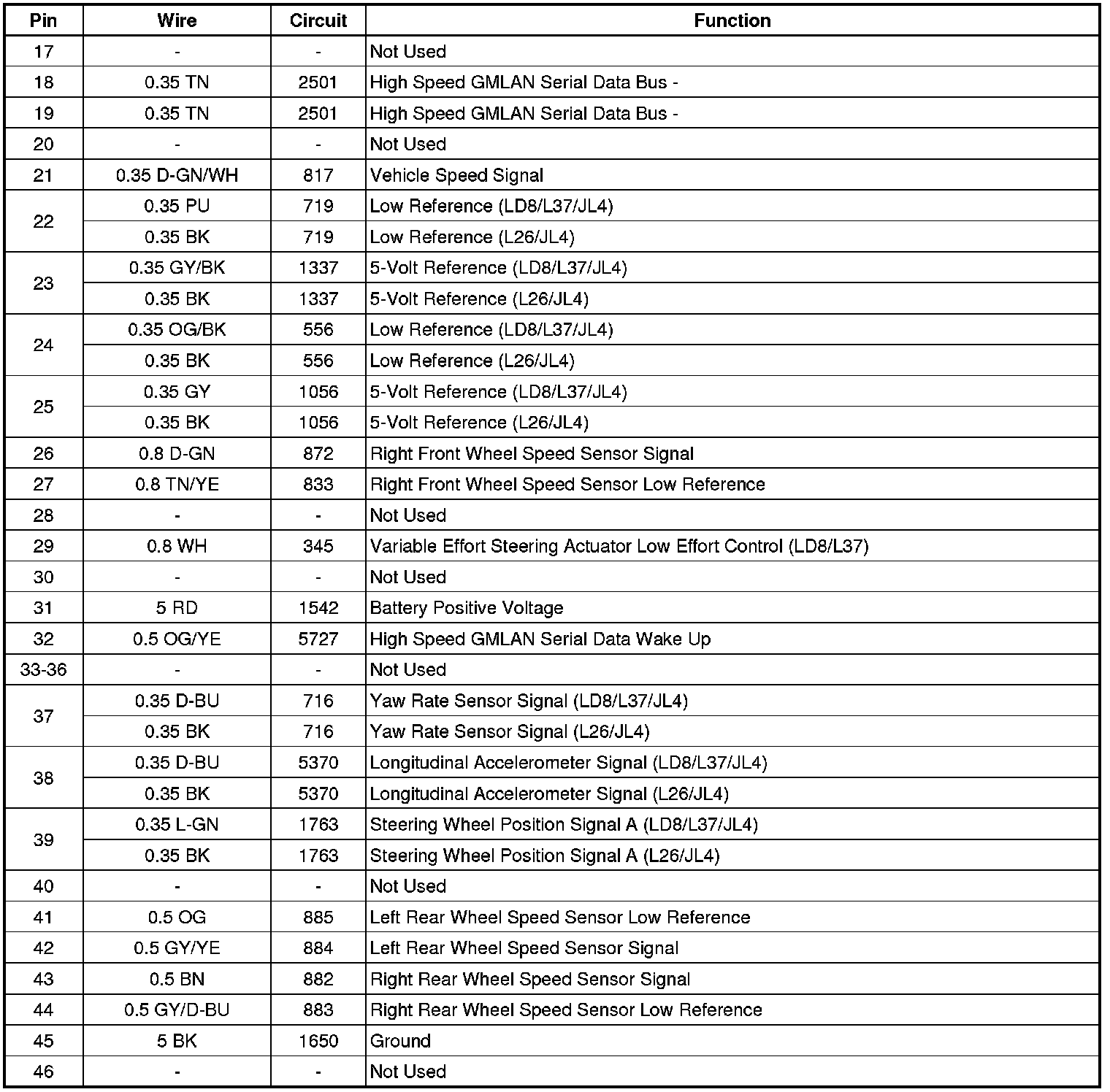

Electronic Brake Control Module (EBCM)
