LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
2008
>>
Lucerne V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System
Component Connector End Views

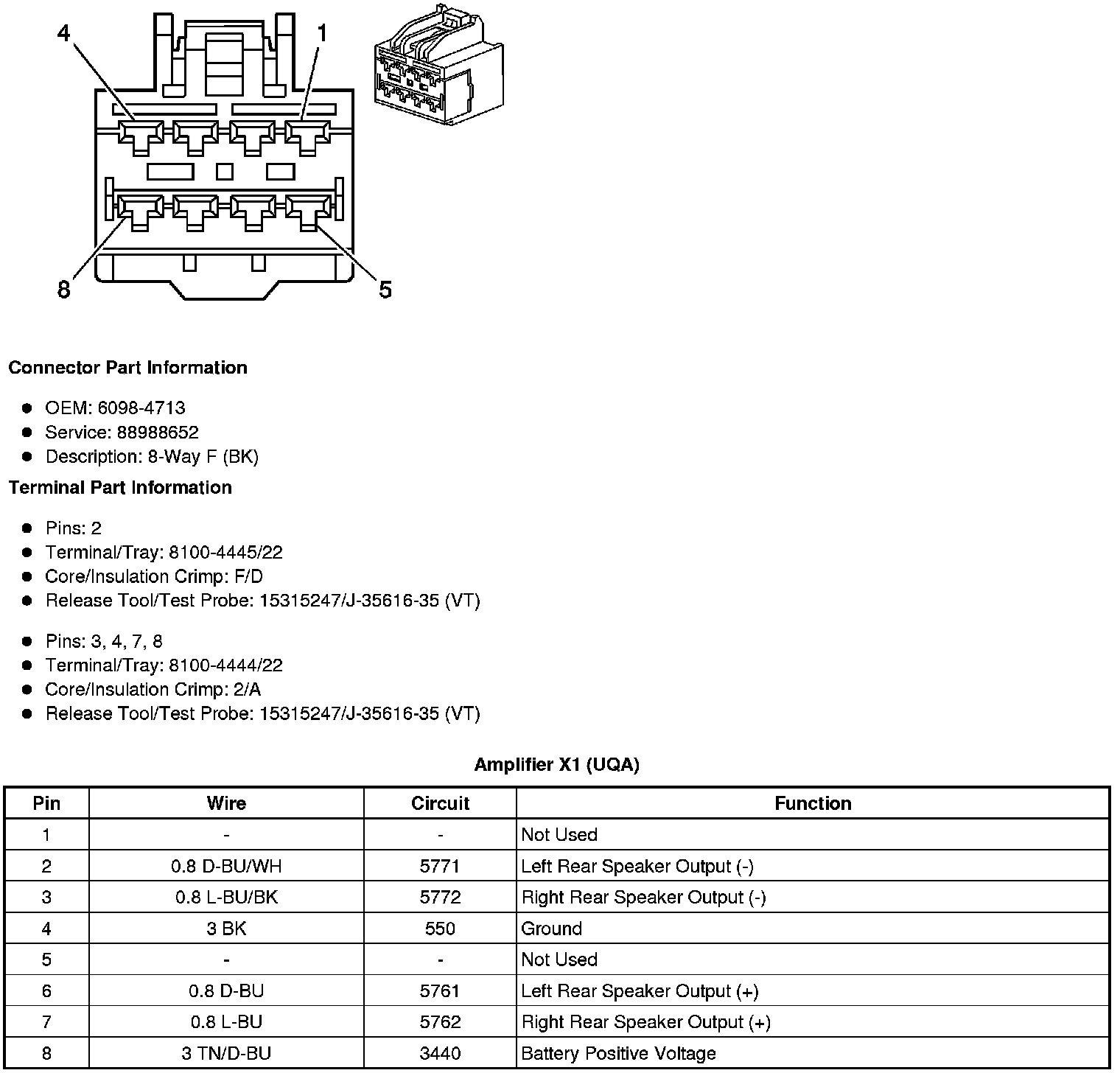

Amplifier
X1 (UQA)

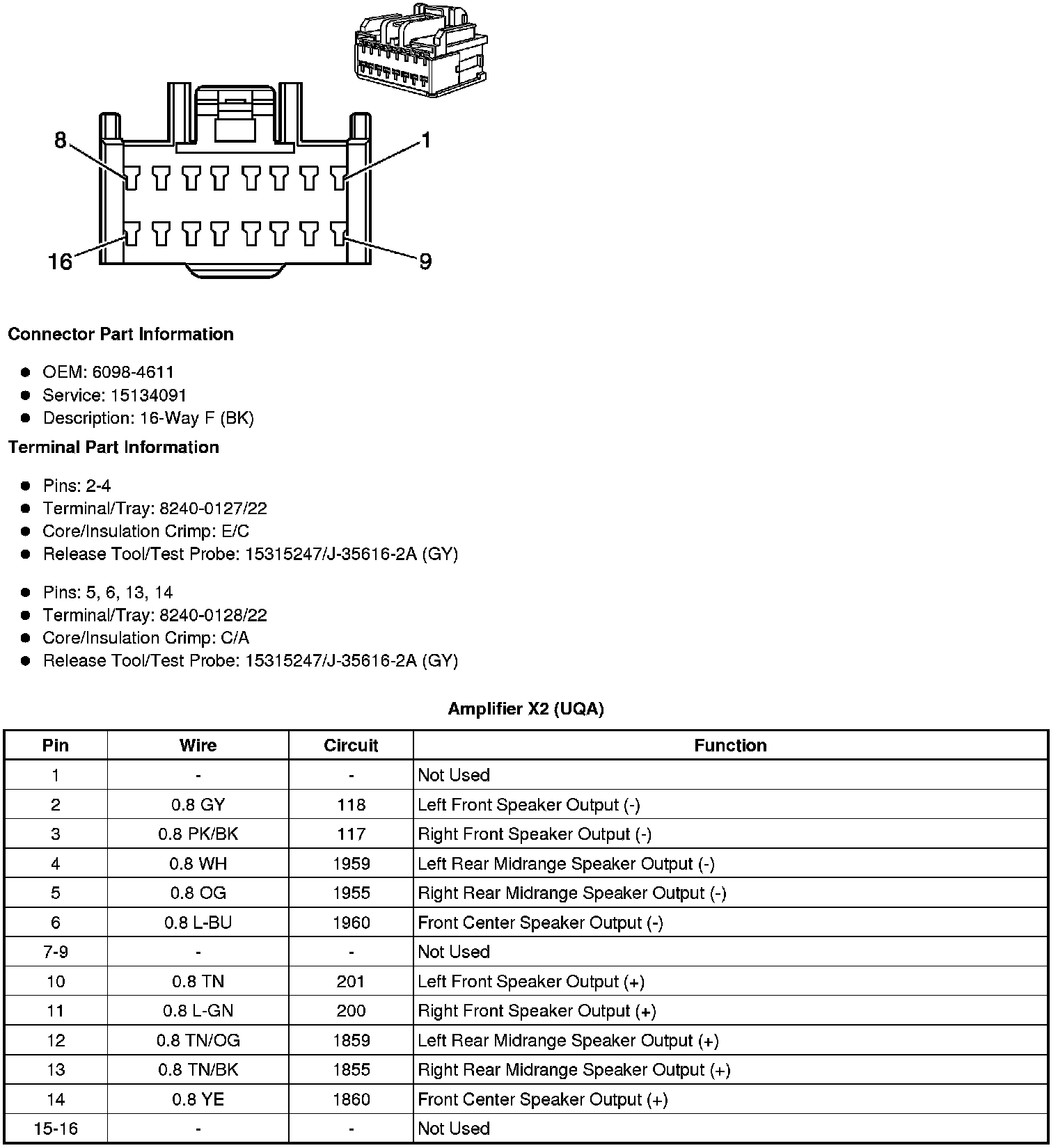

Amplifier
X2 (UQA)

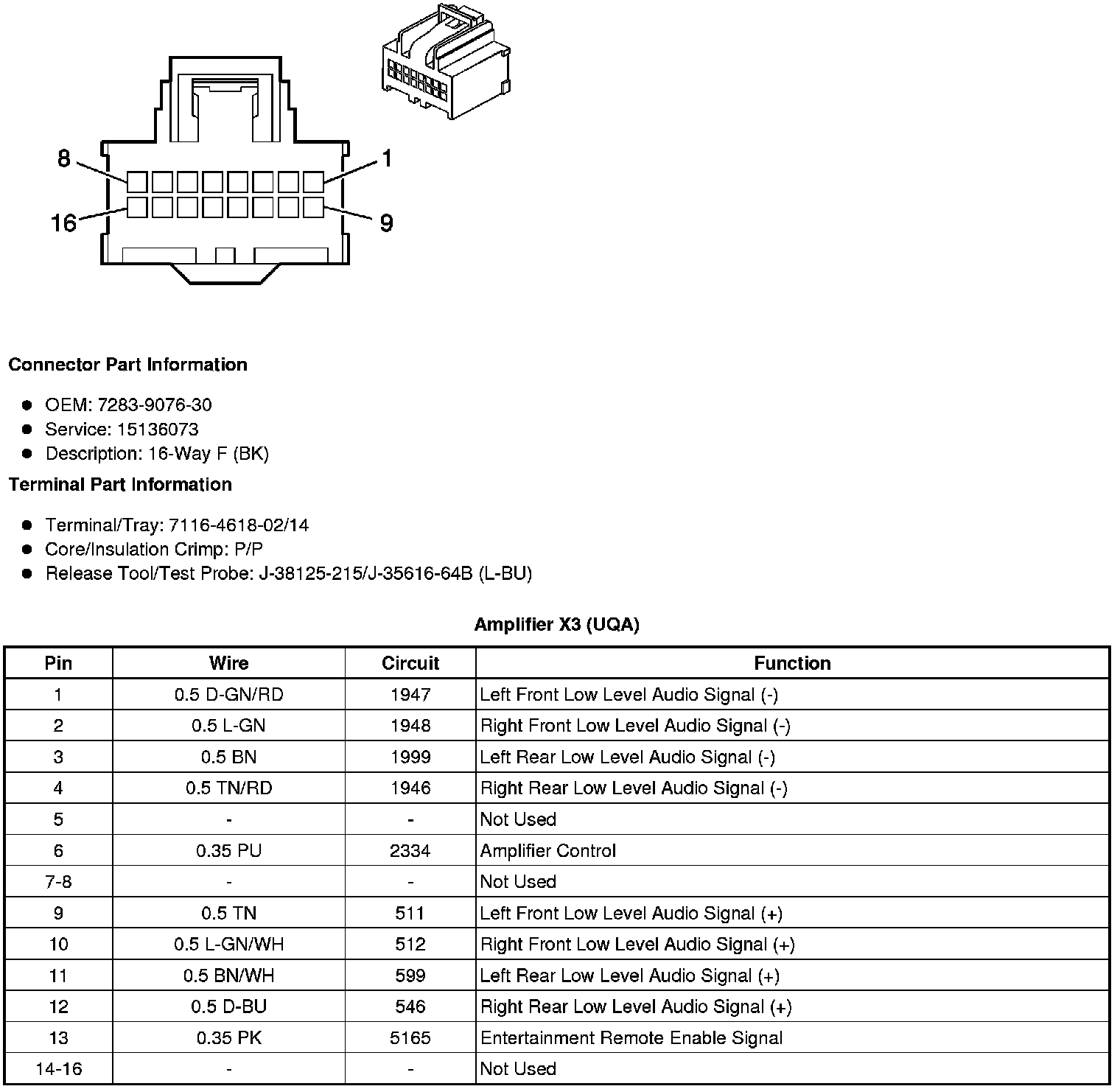

Amplifier
X3 (UQA)
