Home >> Buick >> 2008 >> LaCrosse V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch

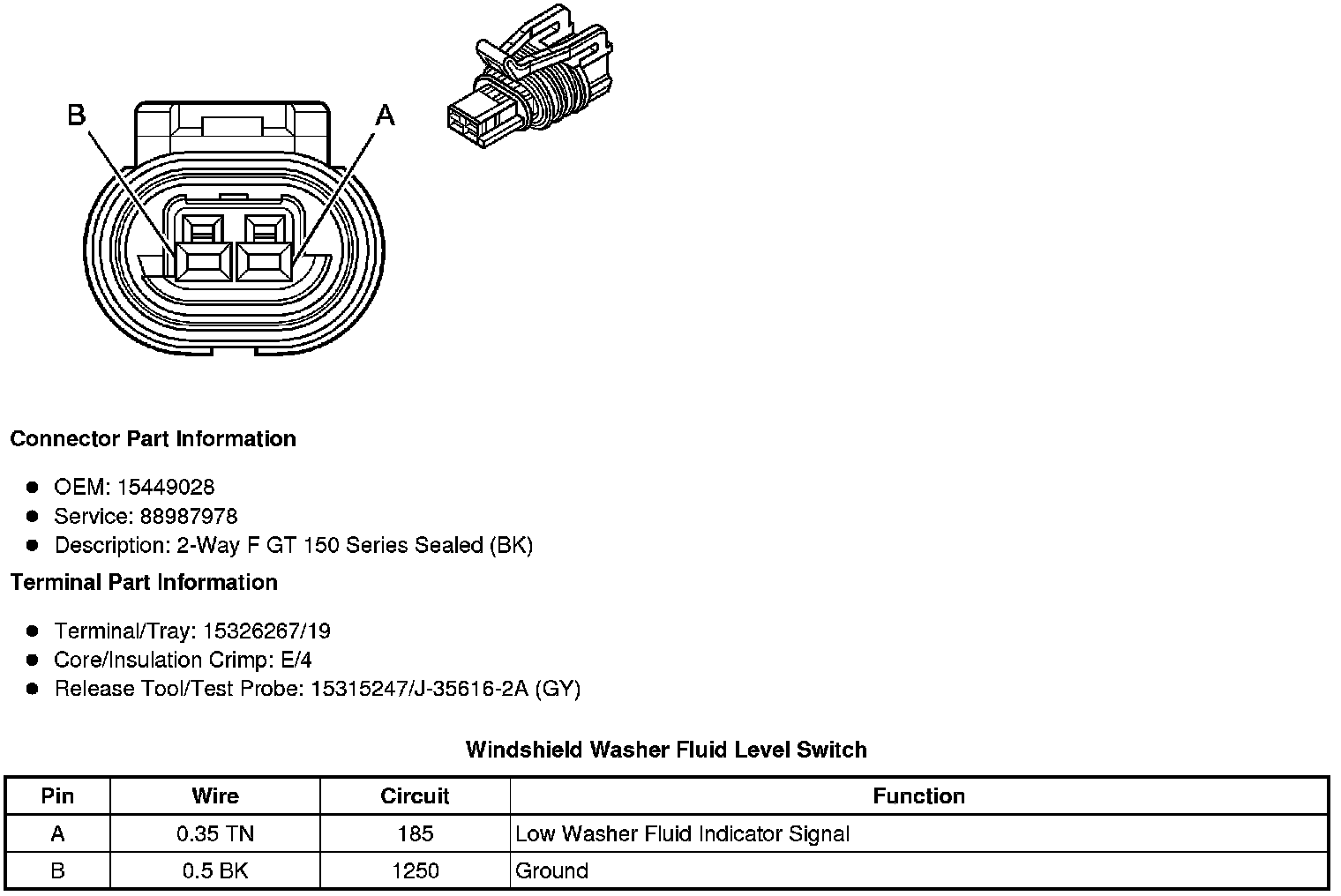

Washer Fluid Level Switch



Component Connector End Views

Windshield Washer Fluid Level Switch
