Ignition Coil: Diagrams



Component Connector End Views

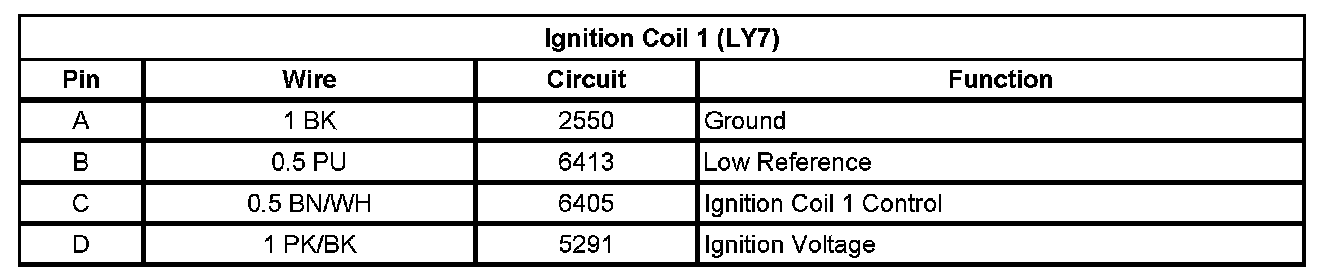

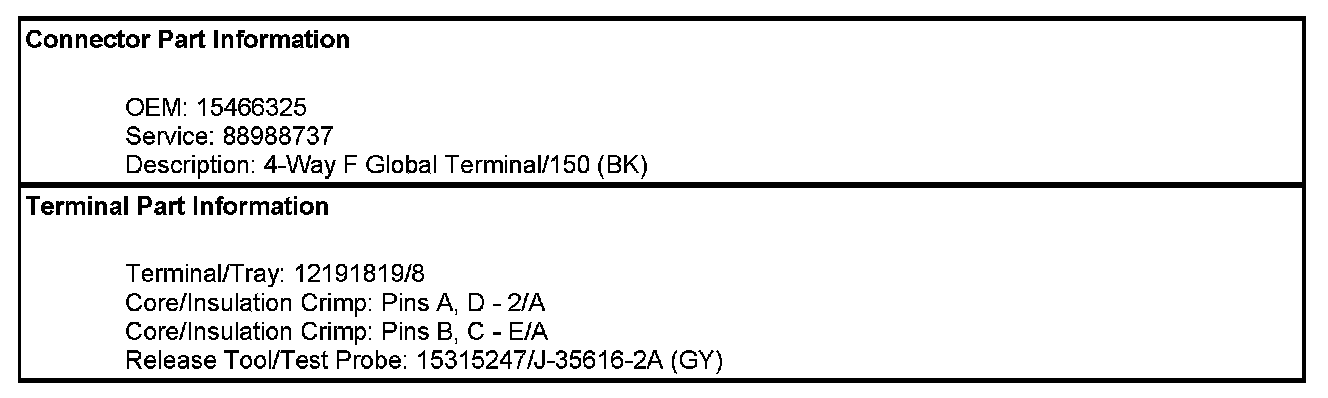

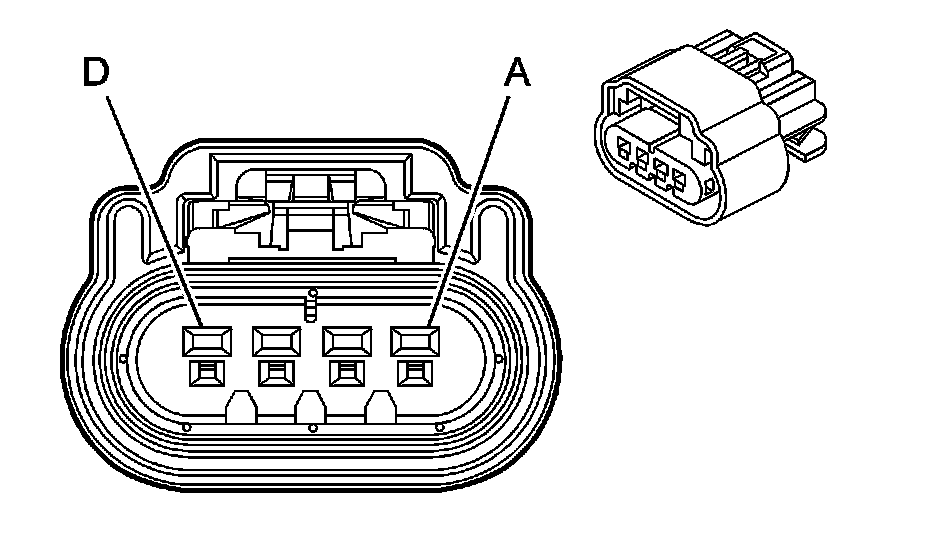

Ignition Coil 1 (LY7)

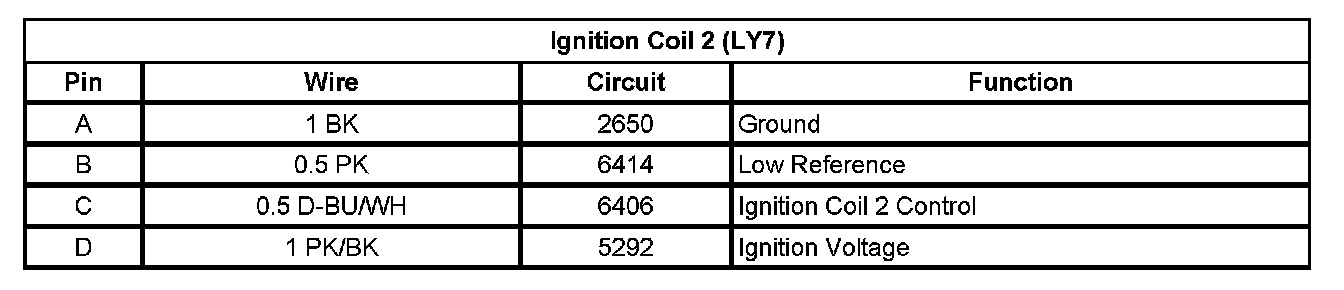

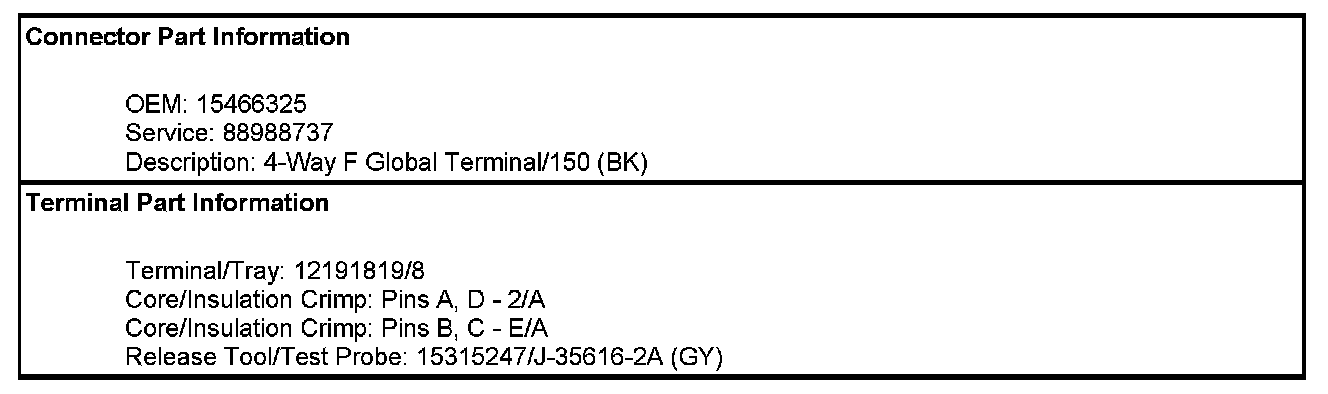

Ignition Coil 2 (LY7)

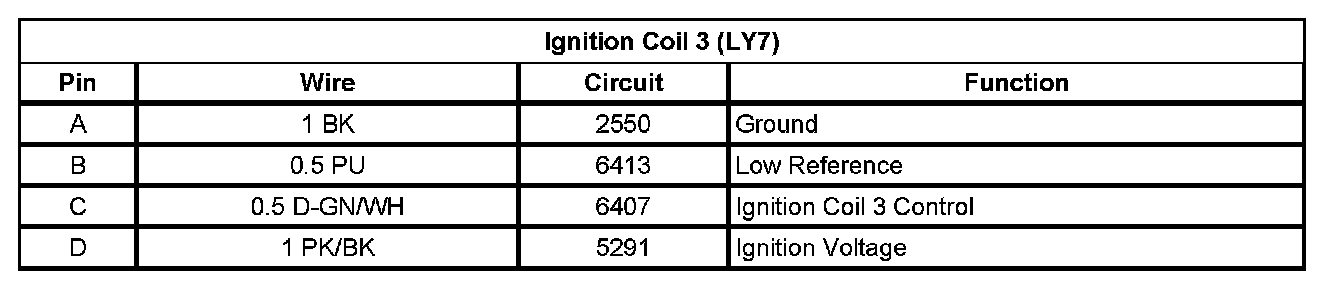

Ignition Coil 3 (LY7)

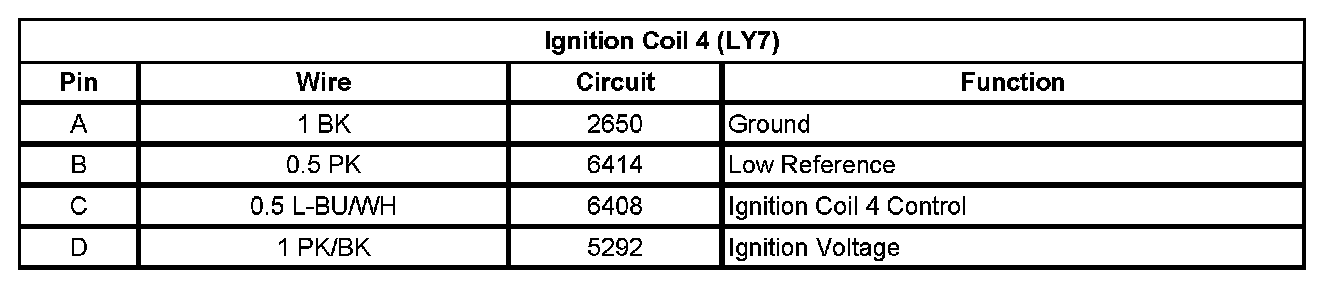

Ignition Coil 4 (LY7)














Ignition Coil 5 (LY7)

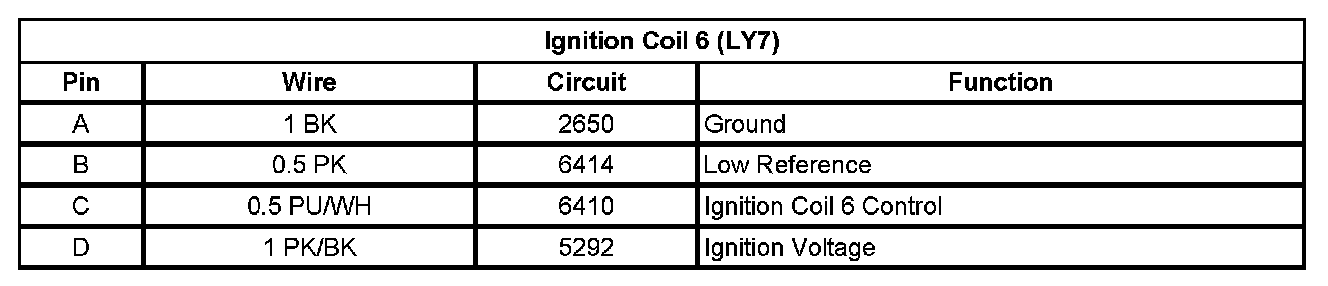

Ignition Coil 6 (LY7)
