Enclave AWD V6-3.6L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Master Splice List
Master Splice List
Master Electrical Component List

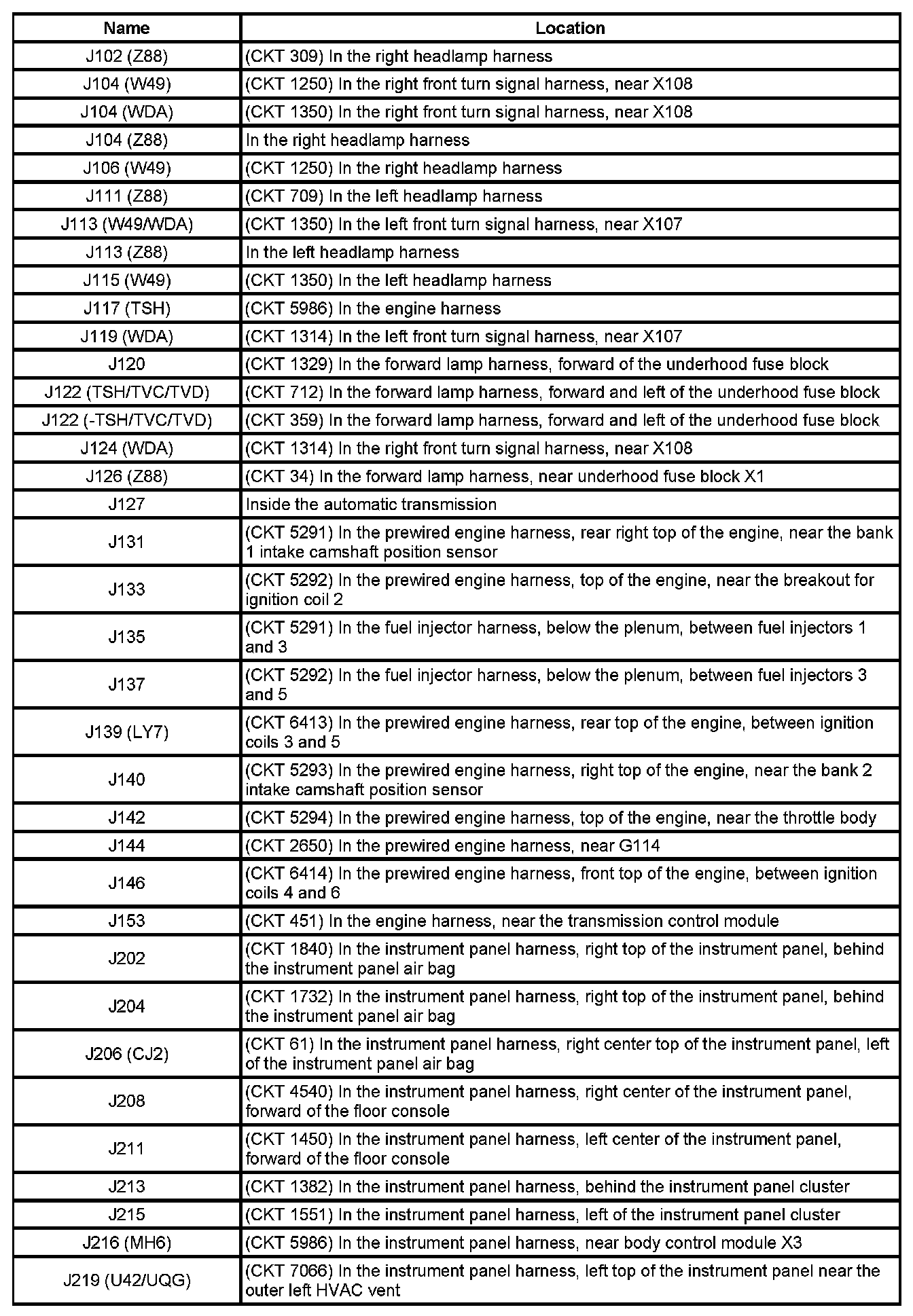

J102 - J219:

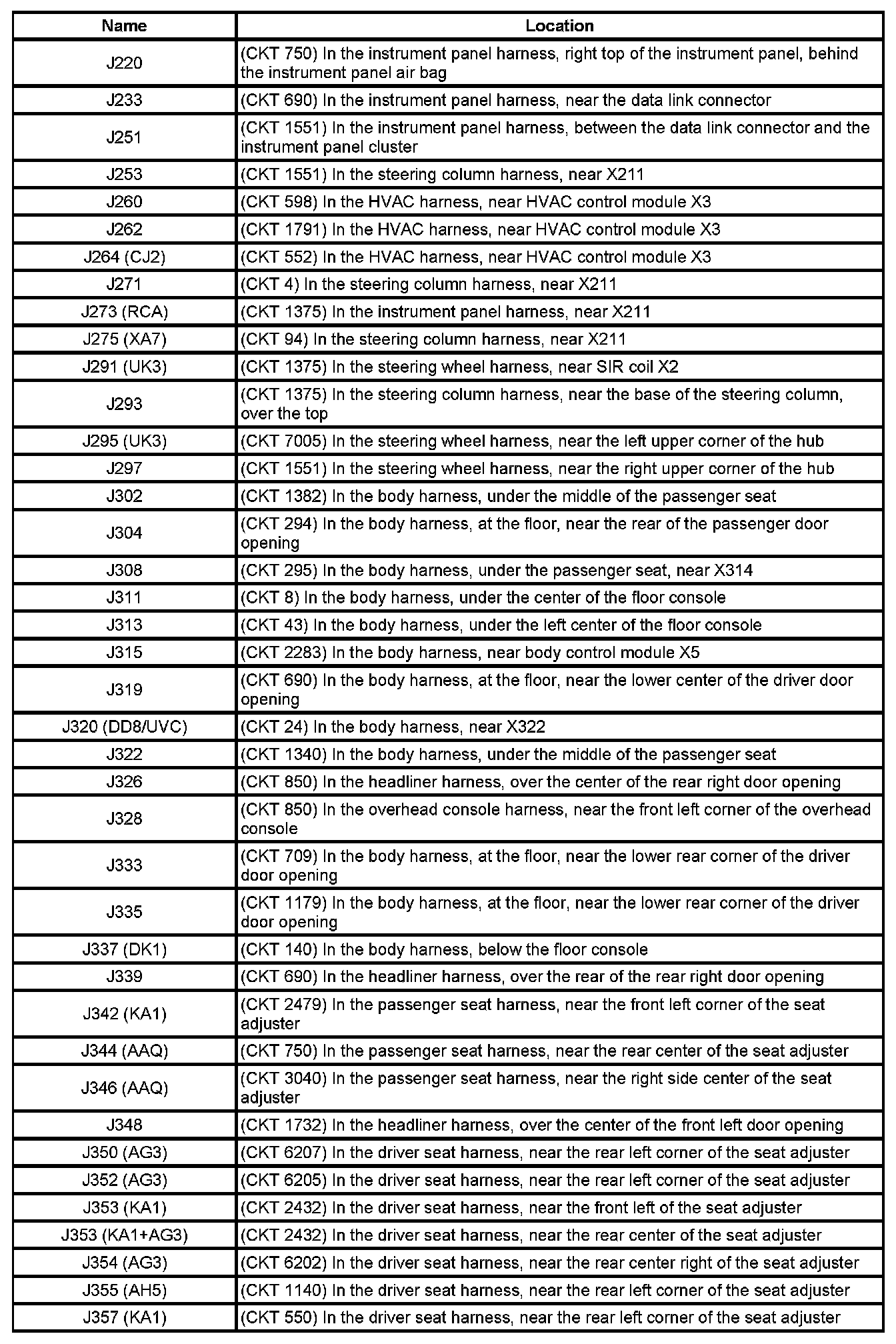

J220 - J357:

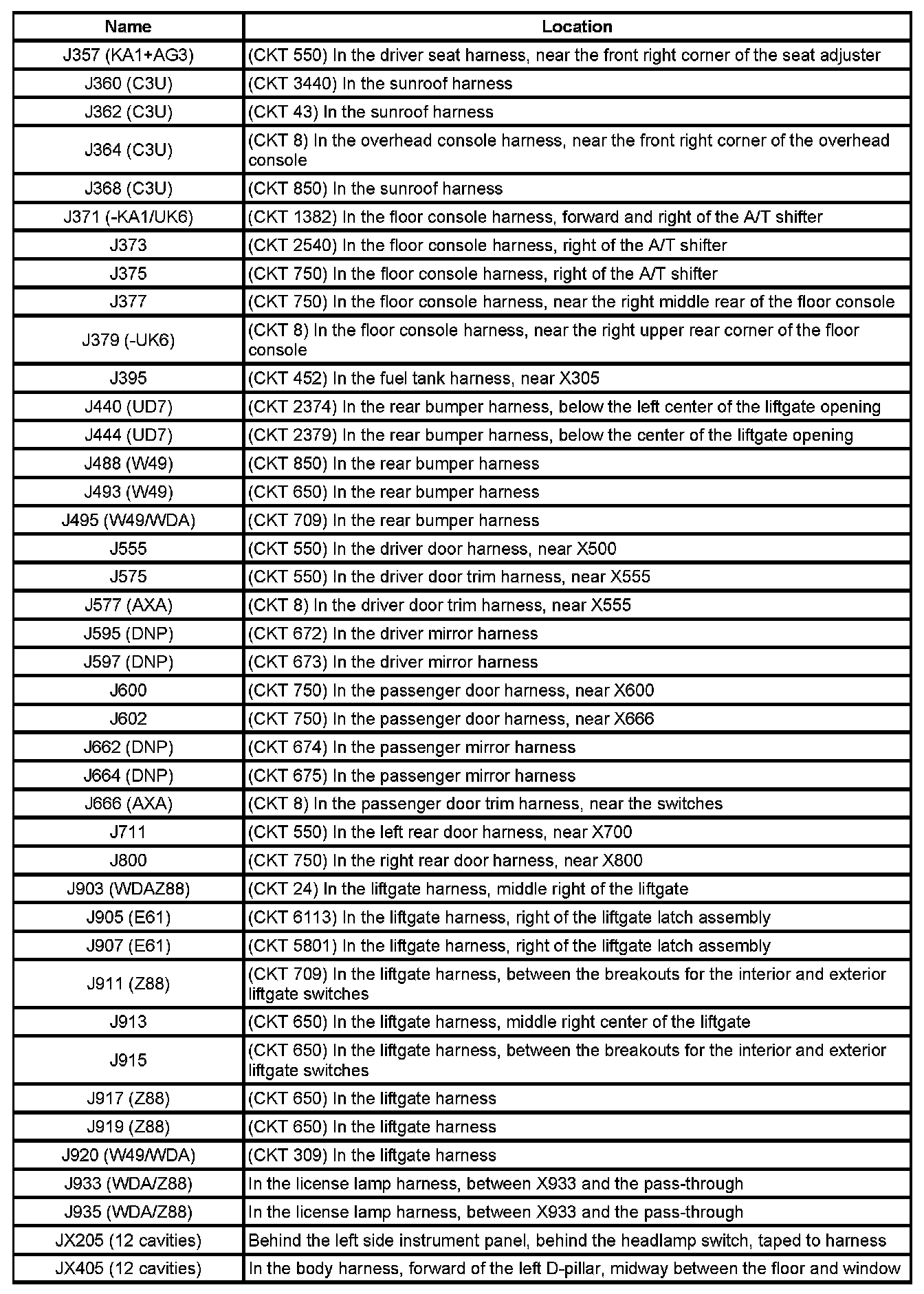

J357 - JX405:
