Engine Harness

Harness Routing Views

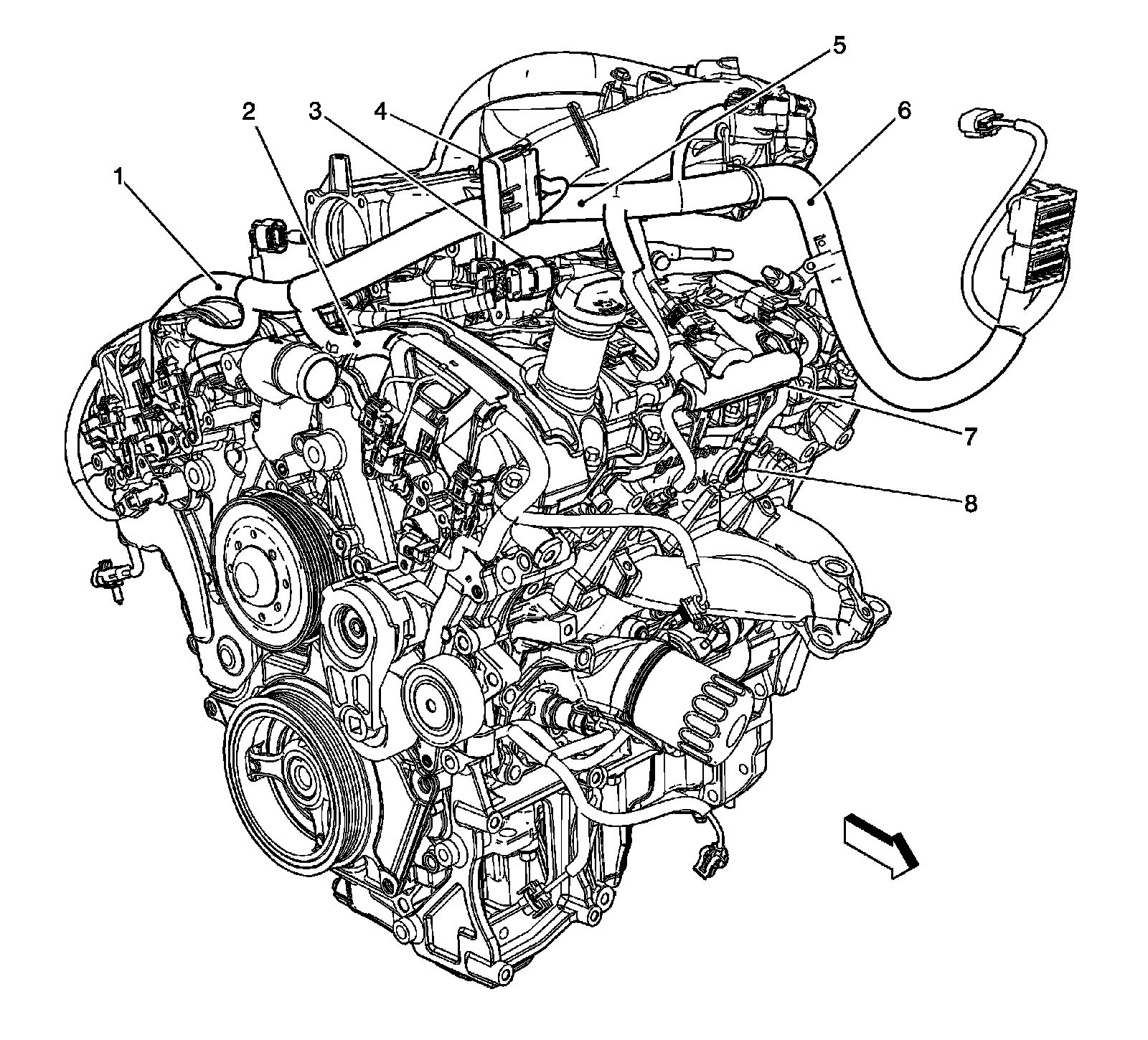

Engine Harness - Front




1 - J131
2 - J140
3 - X101
4 - X103
5 - J133
6 - J142
7 - J146
8 - G114

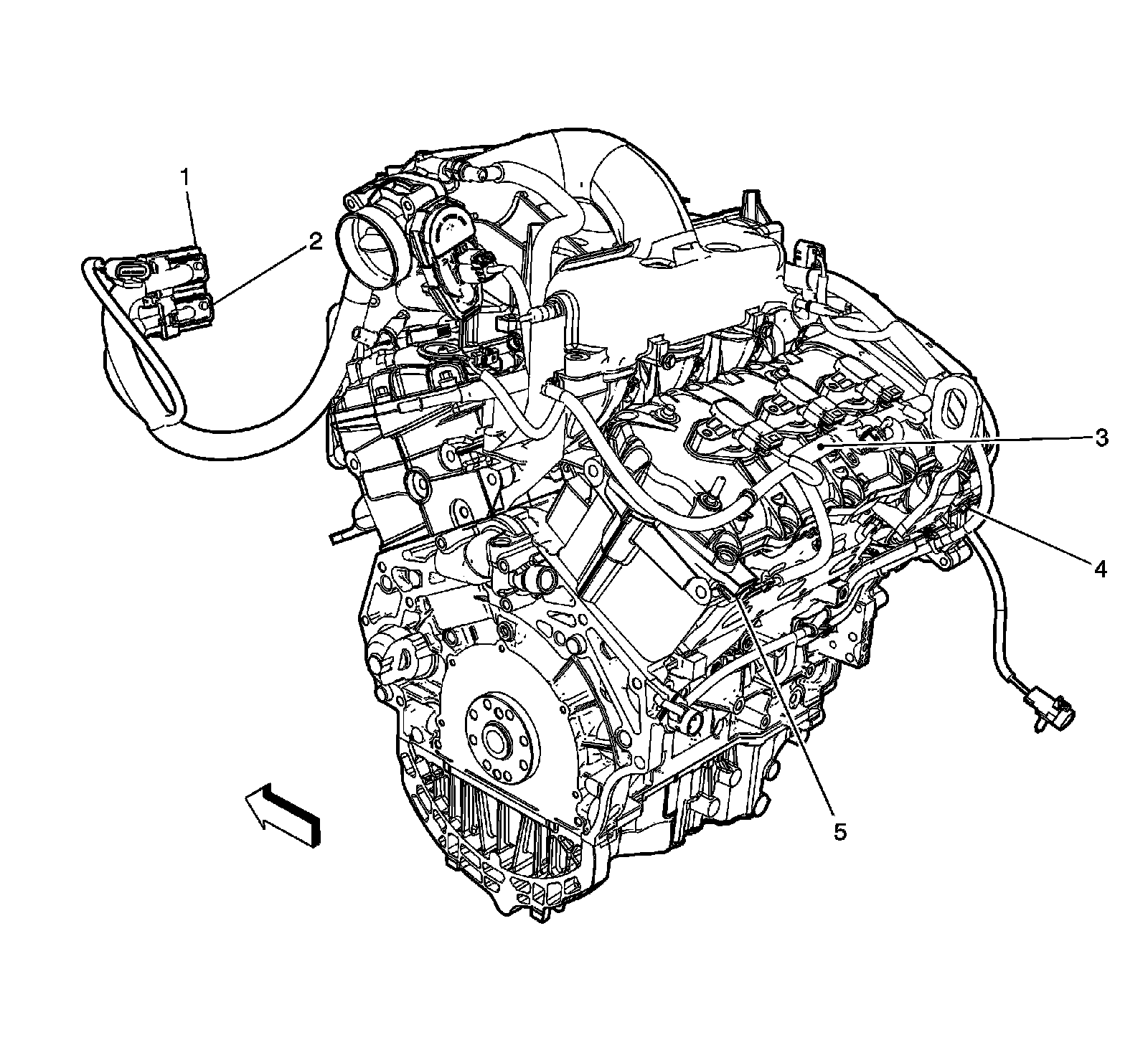

Engine Harness - Rear




1 - Engine Control Module (ECM) X2
2 - Engine Control Module (ECM) X3
3 - J139
4 - G110
5 - G112
