Body Control Systems

Body Control System Schematics

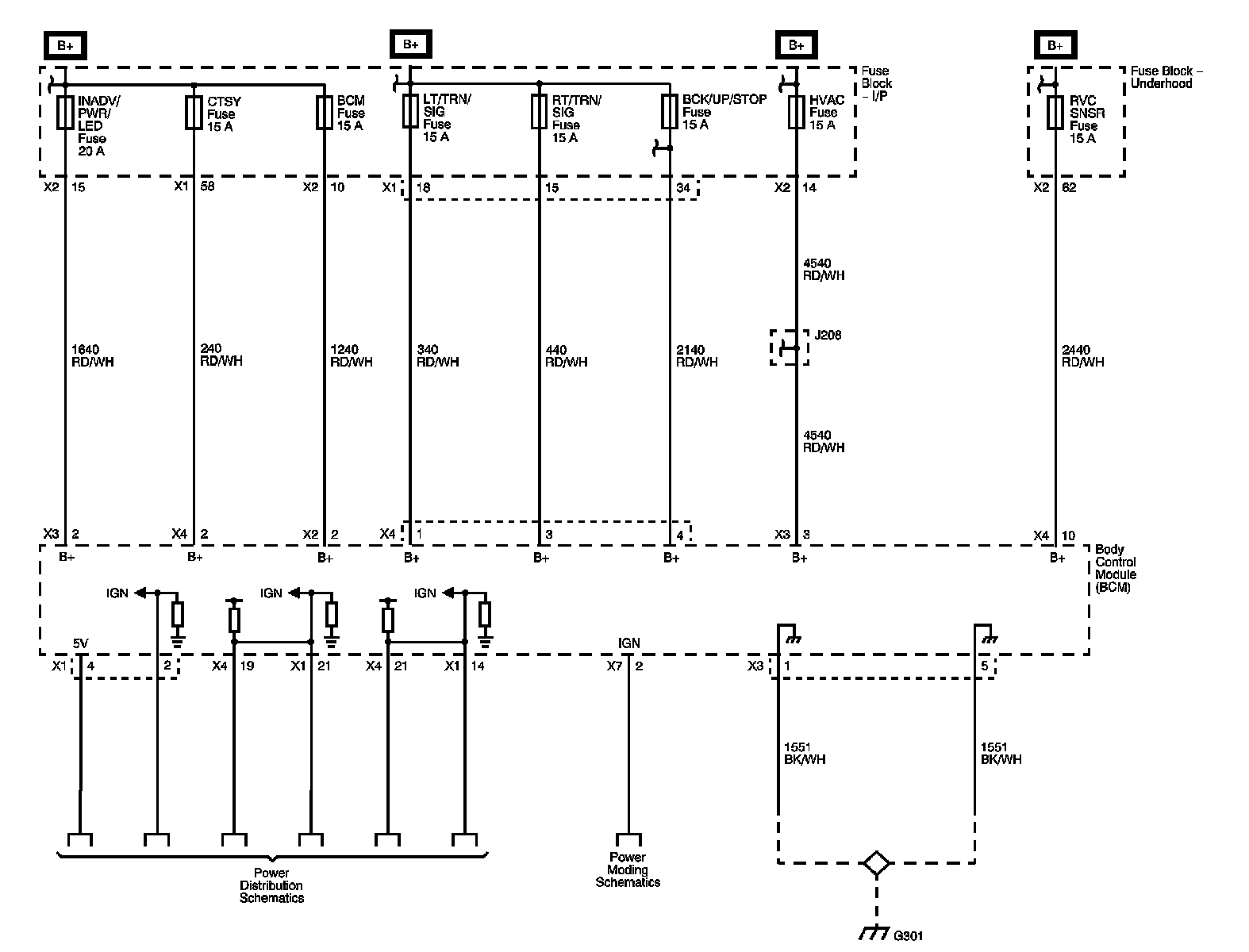

Module Power, Ground, and References to Power Distribution and Power Moding

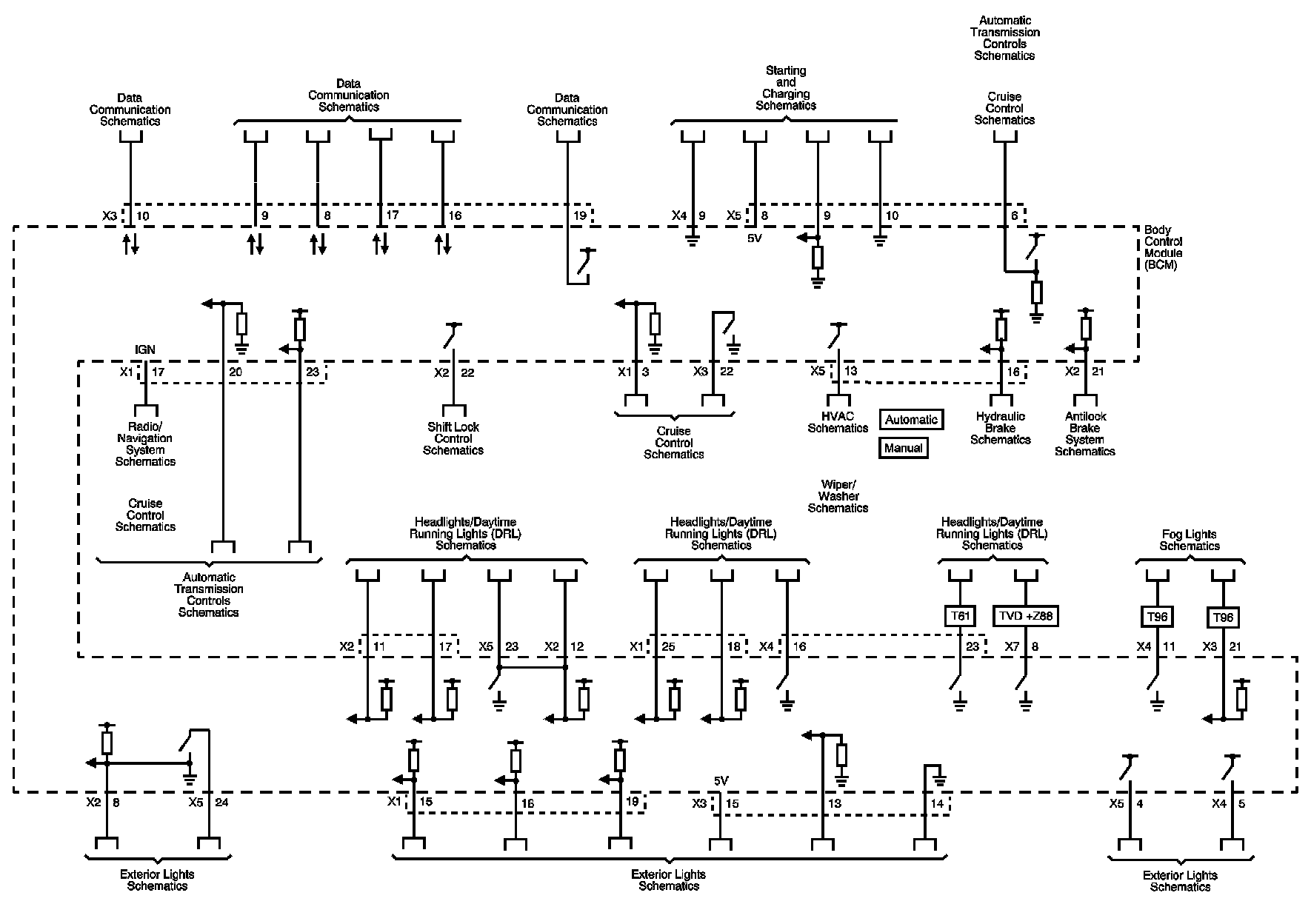

Subsystem References 1 of 3

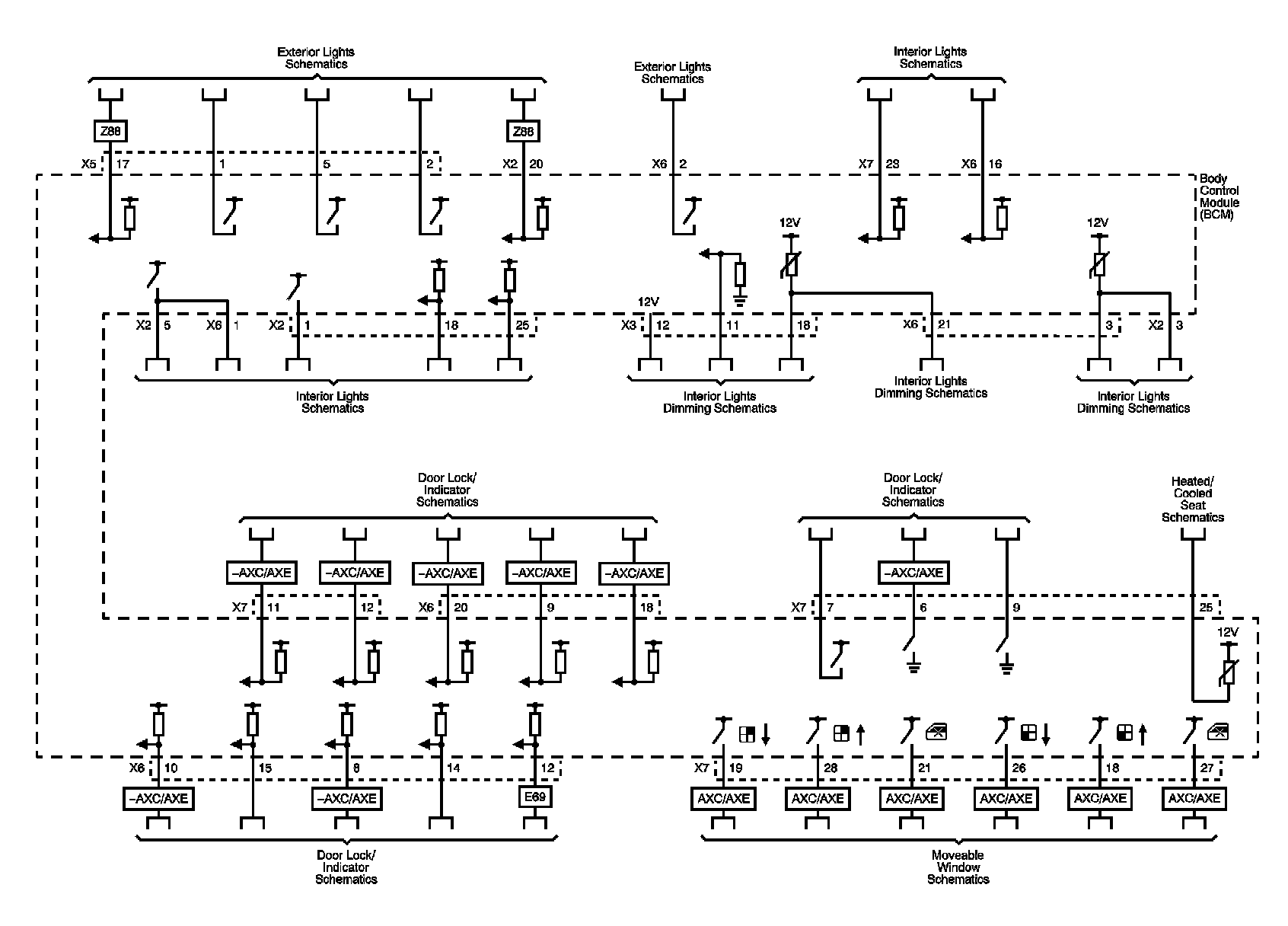

Subsystem References 2 of 3

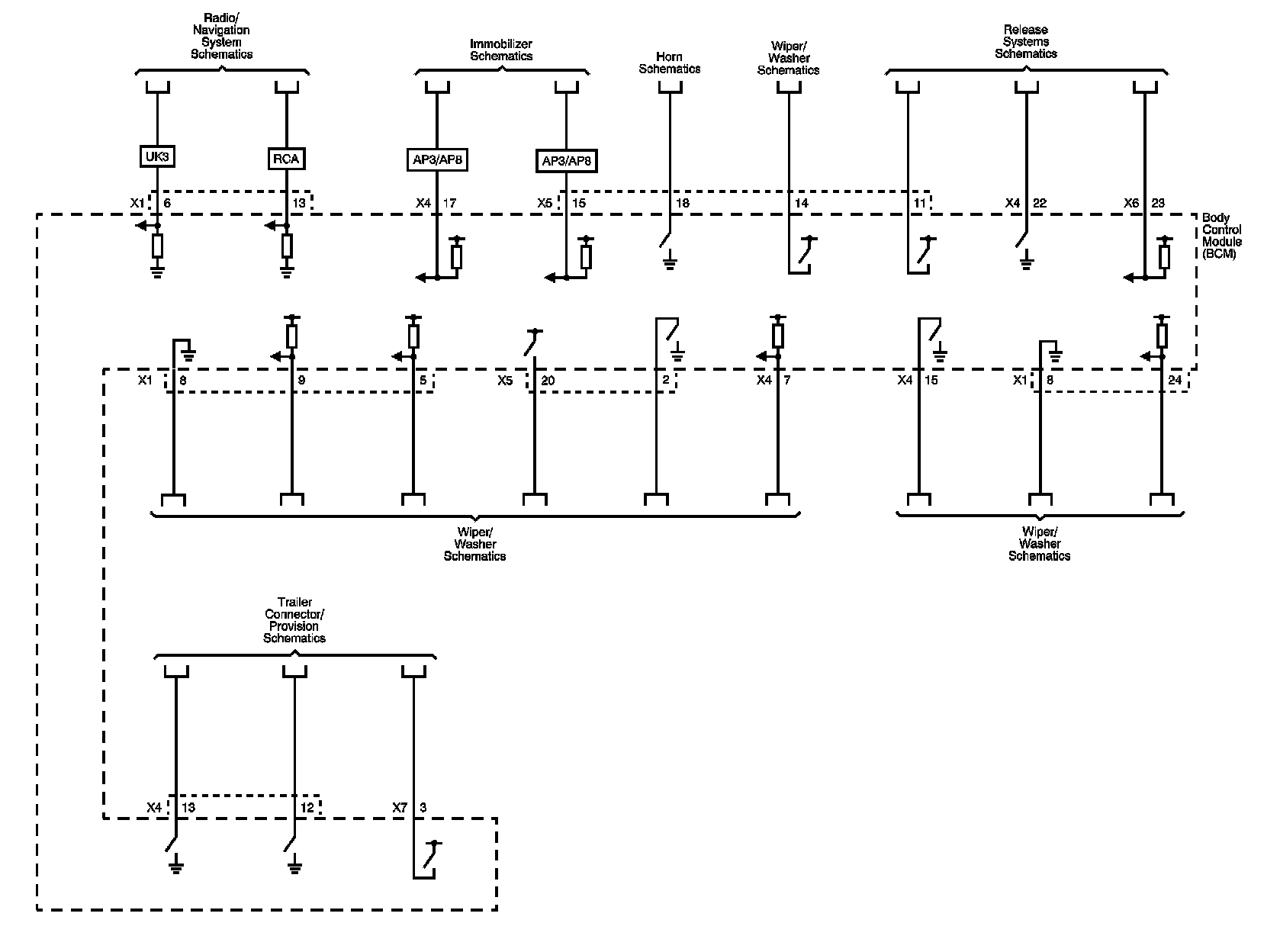

Subsystem References 3 of 3






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
