Home >> Buick >> 2008 >> Enclave AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch

Washer Fluid Level Switch

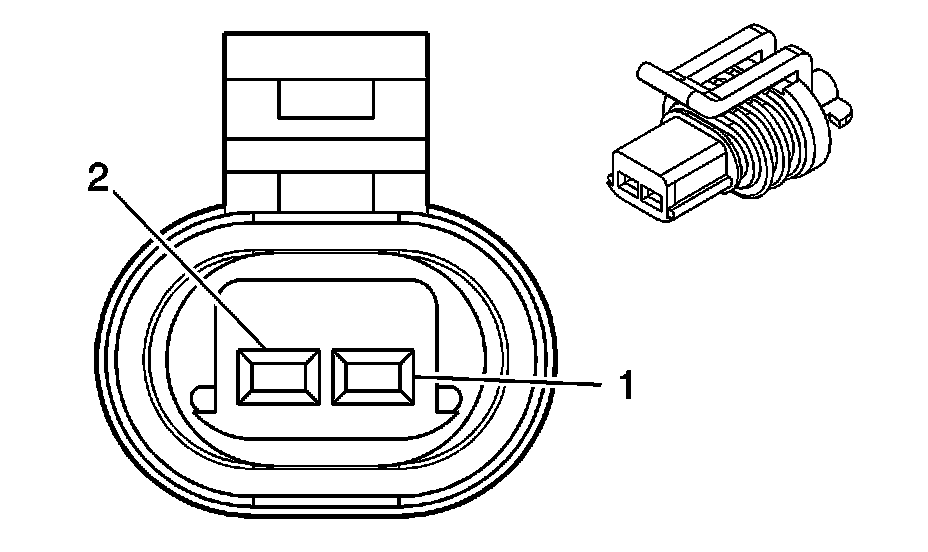

Component Connector End Views - Continued

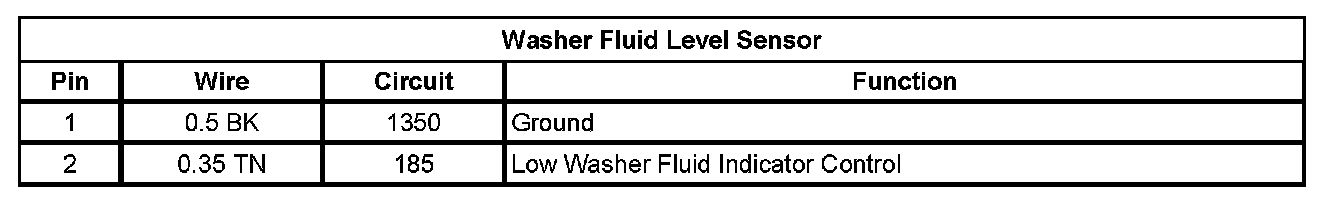

Washer Fluid Level Sensor
