Variable Induction Control Solenoid

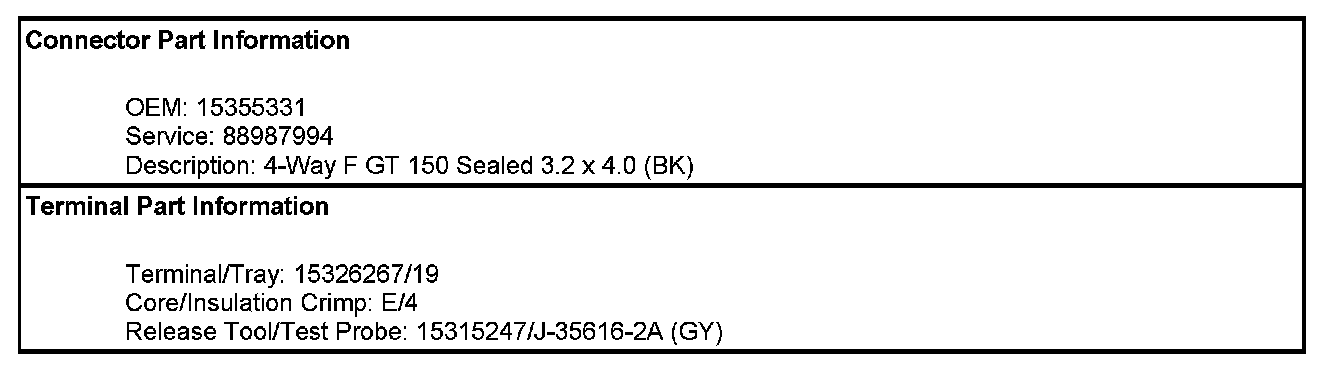

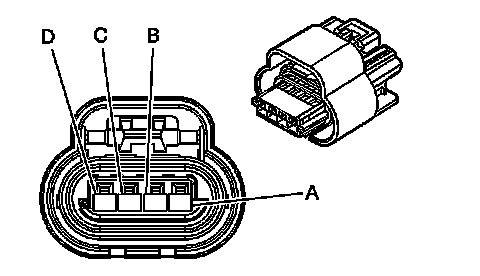

Component Connector End Views - Continued

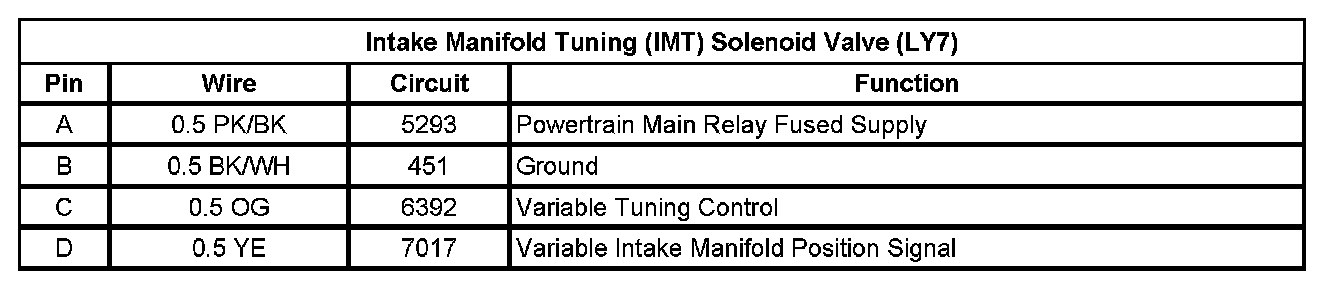

Intake Manifold Tuning (IMT) Solenoid Valve (LY7)
