Trunk / Liftgate Switch



Component Connector End Views - Continued

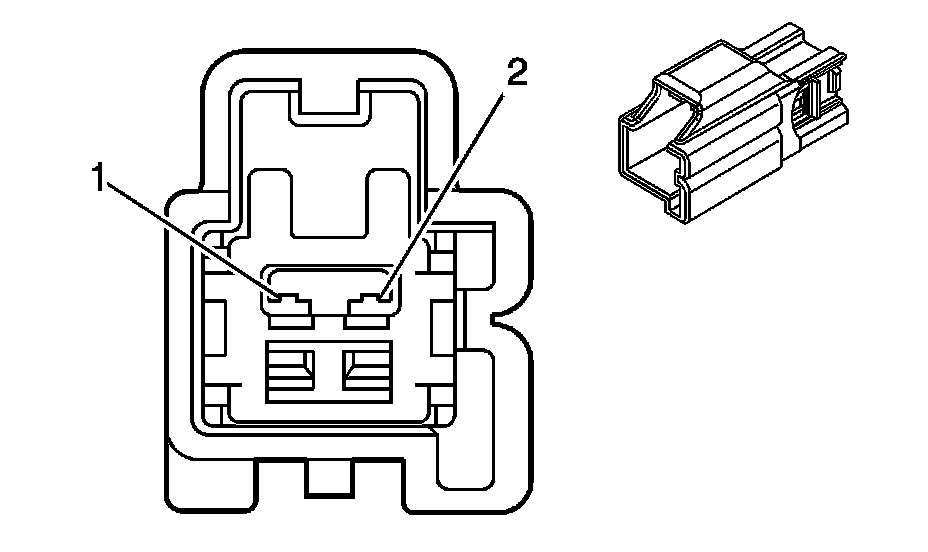

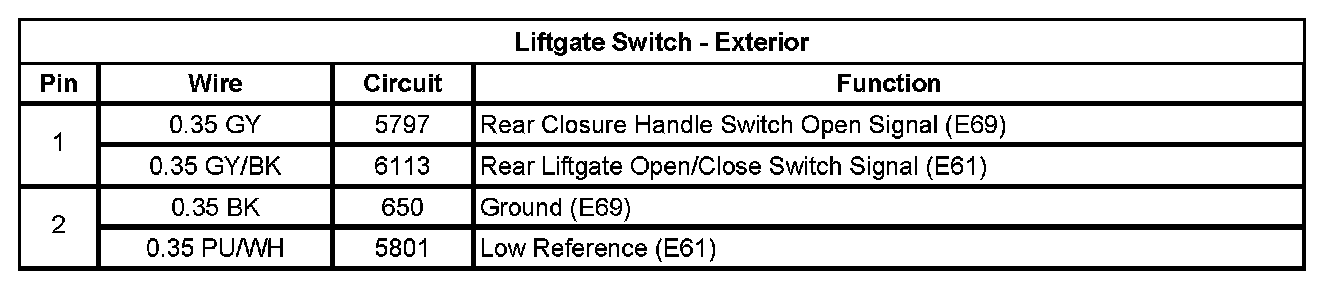

Liftgate Switch - Exterior

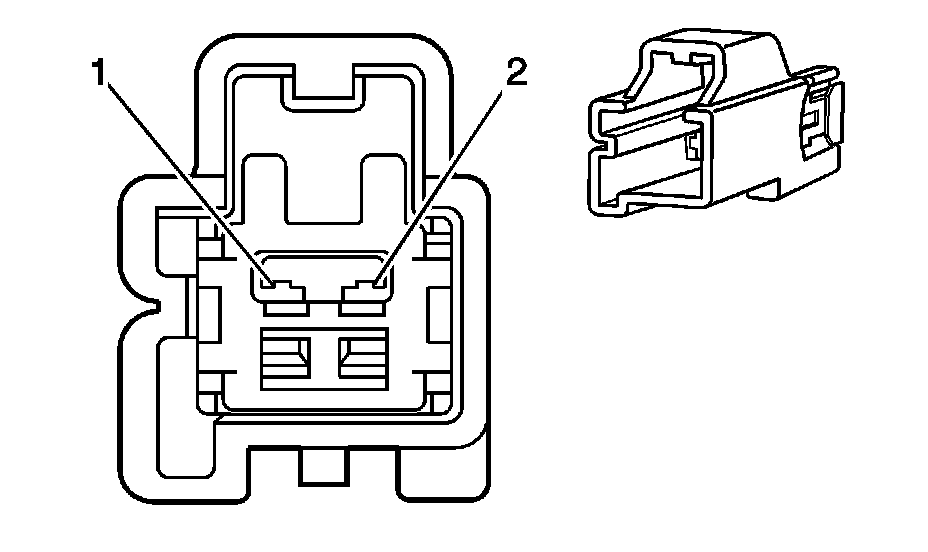

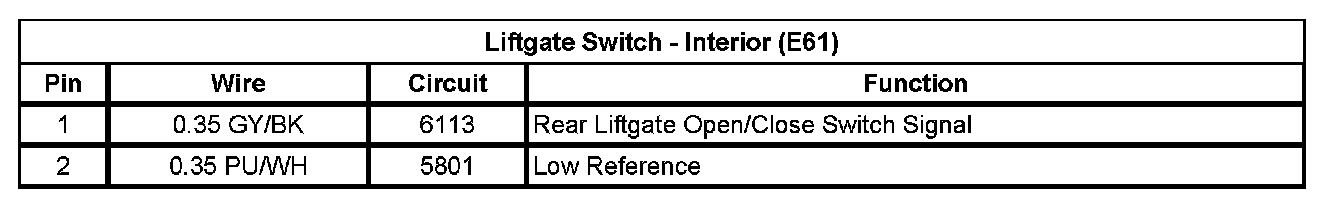

Liftgate Switch - Interior (E61)
