Trunk / Liftgate Latch
Trunk / Liftgate Latch

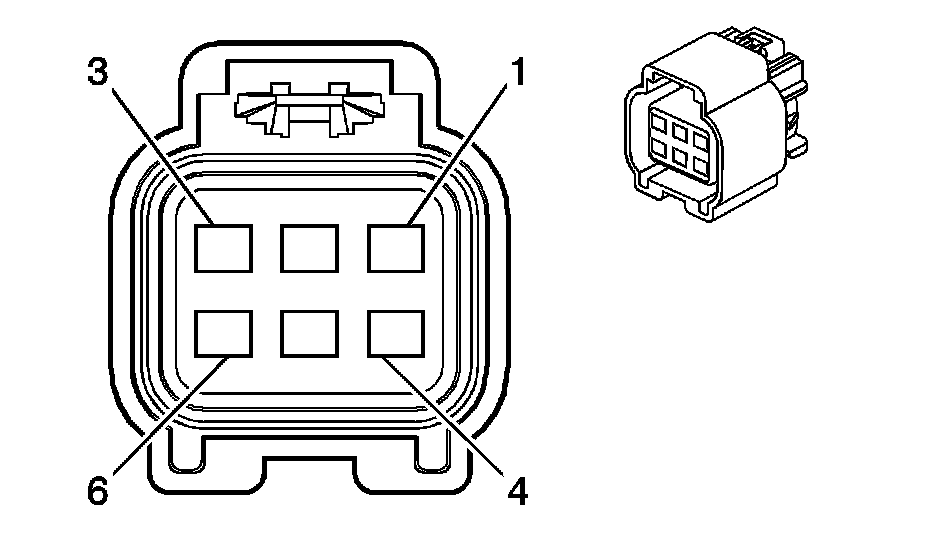

Component Connector End Views - Continued

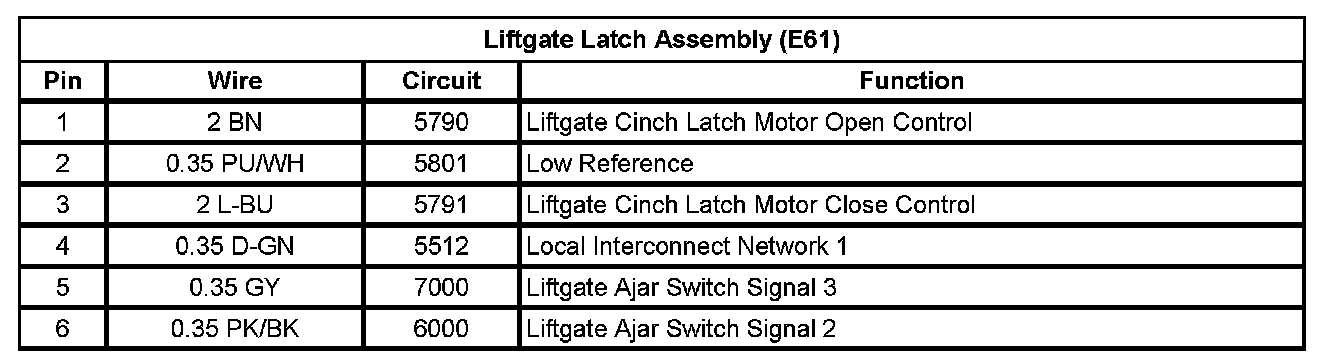

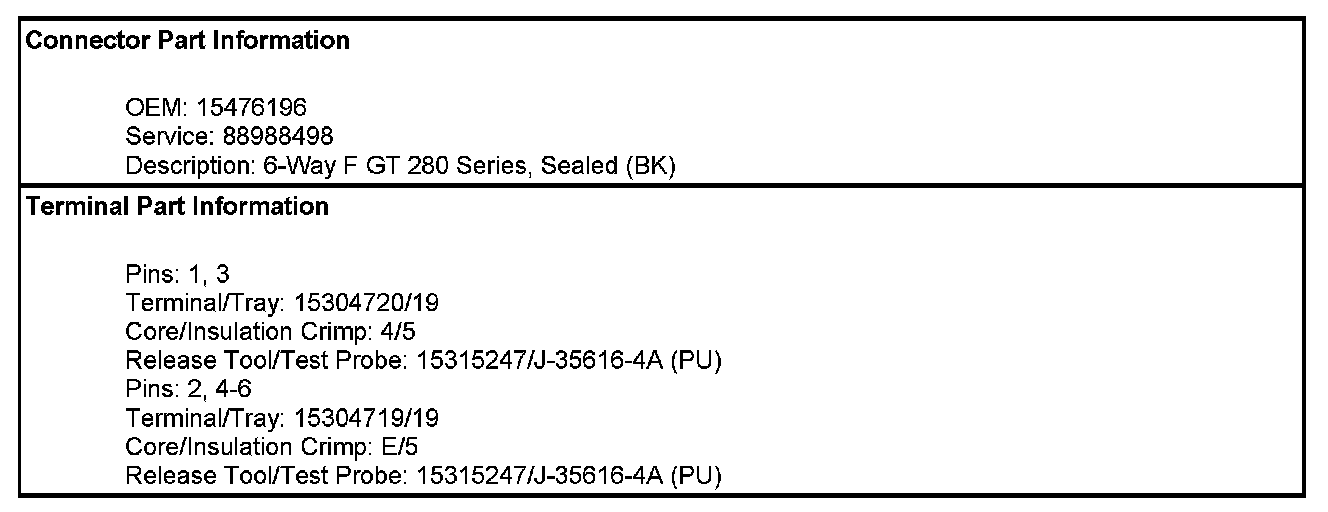

Liftgate Latch Assembly (E61)

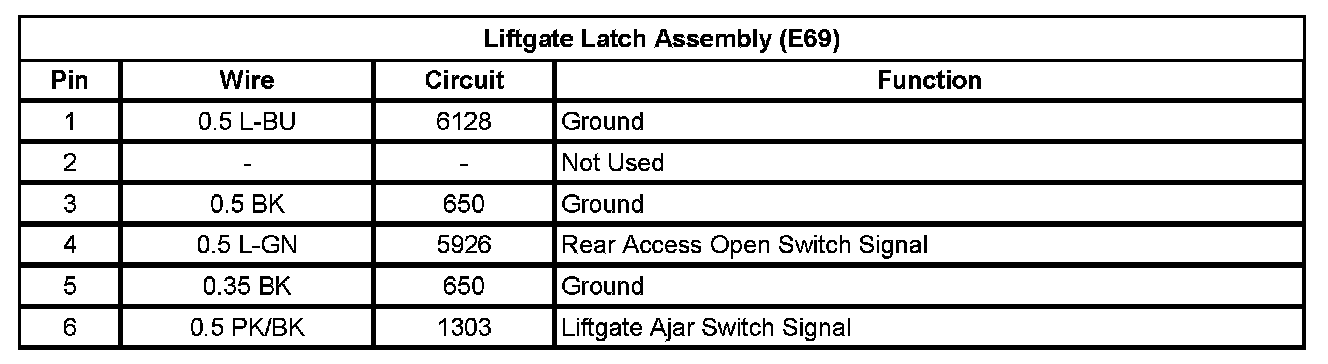

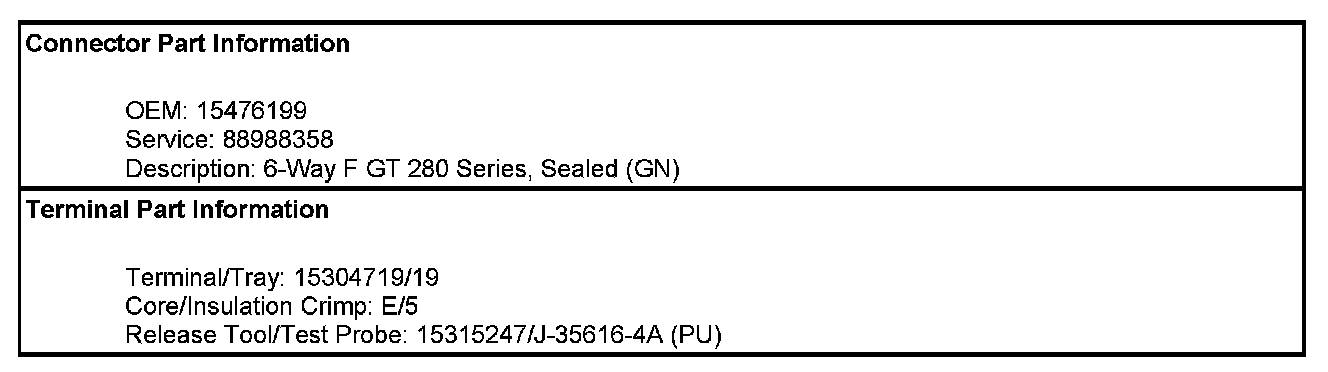

Liftgate Latch Assembly (E69)
