Home >> Buick >> 2008 >> Enclave AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Telescoping Wheel Switch

Telescoping Wheel Switch

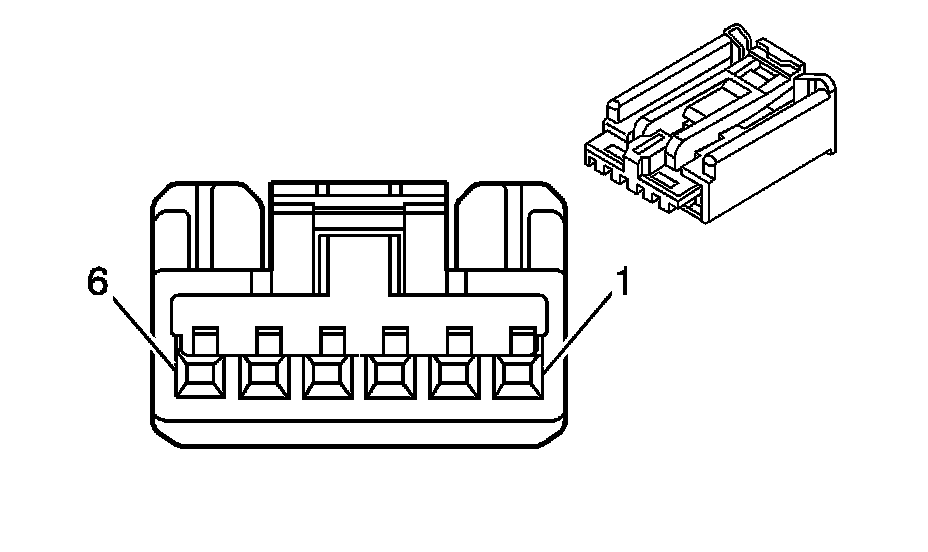

Component Connector End Views - Continued

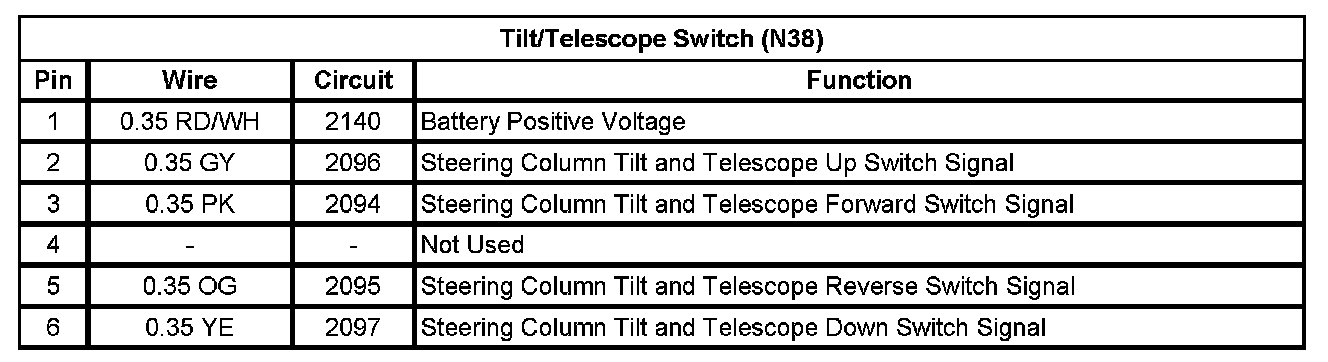

Tilt/Telescope Switch (N38)
