Telescoping Wheel Motor



Component Connector End Views - Continued

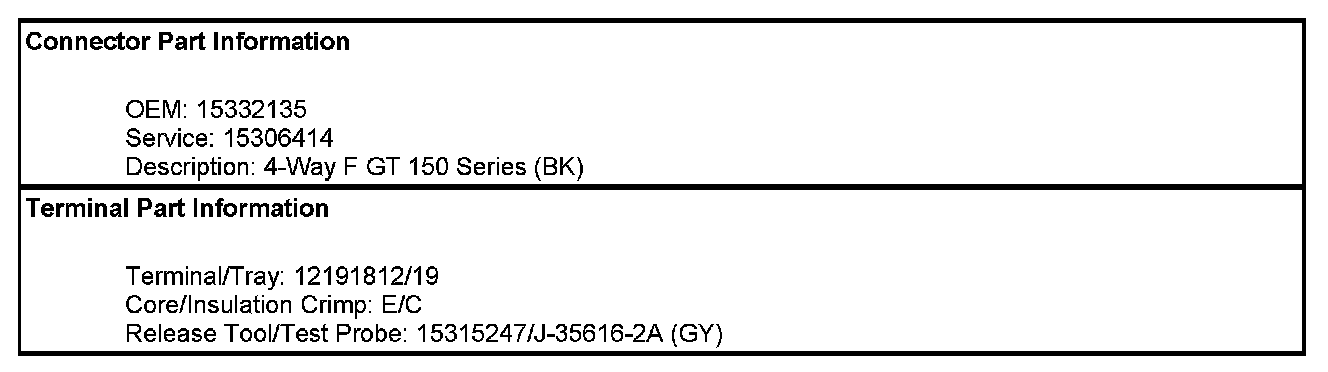

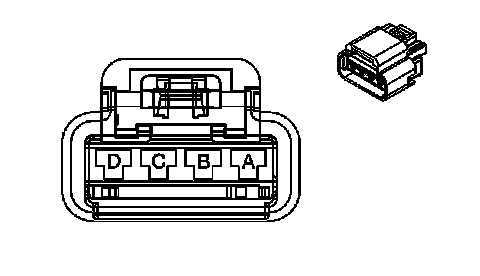

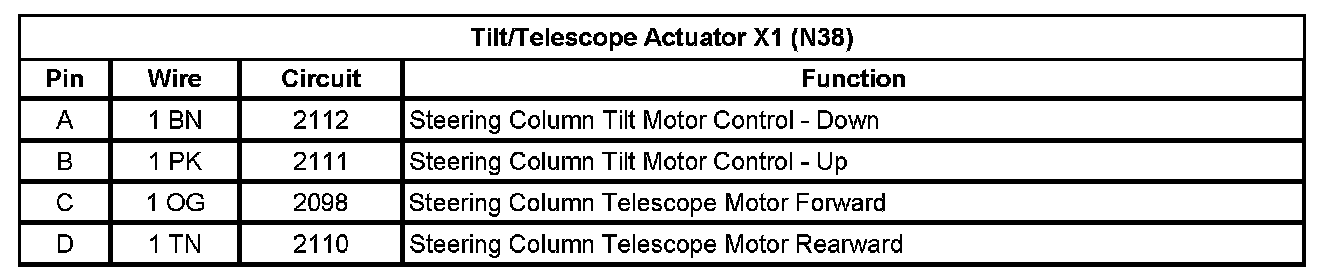

Tilt/Telescope Actuator X1 (N38)

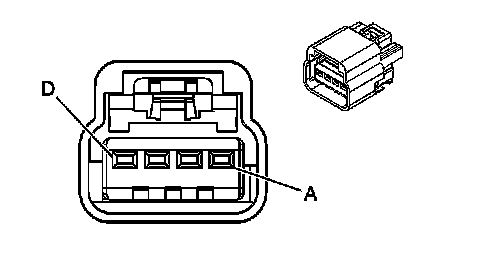

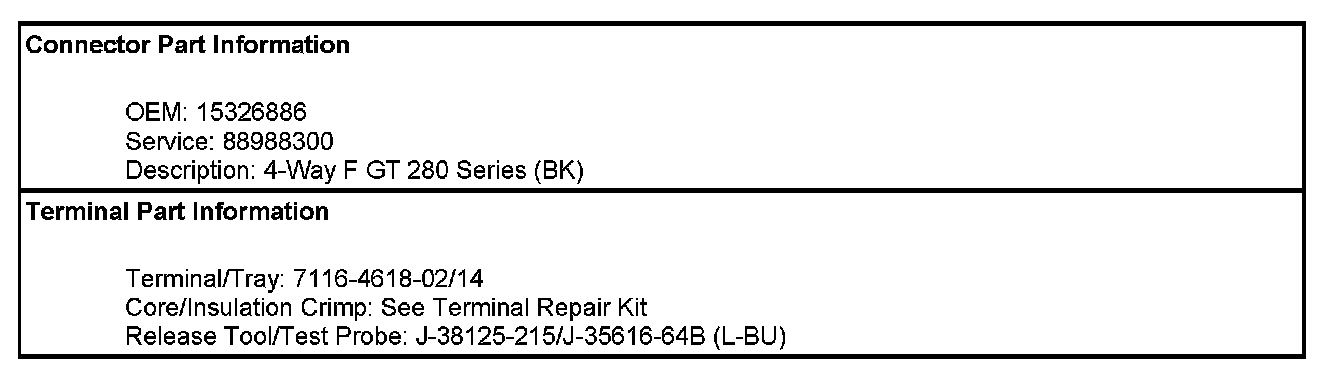

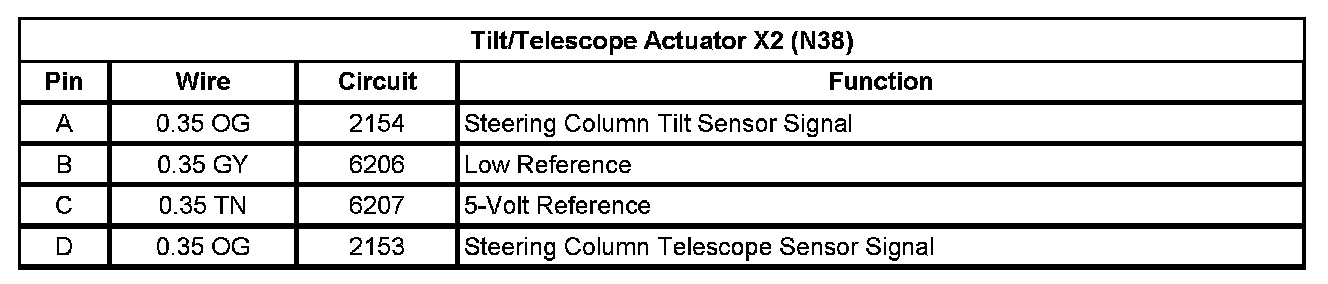

Tilt/Telescope Actuator X2 (N38)
