Tail Lamp



Component Connector End Views

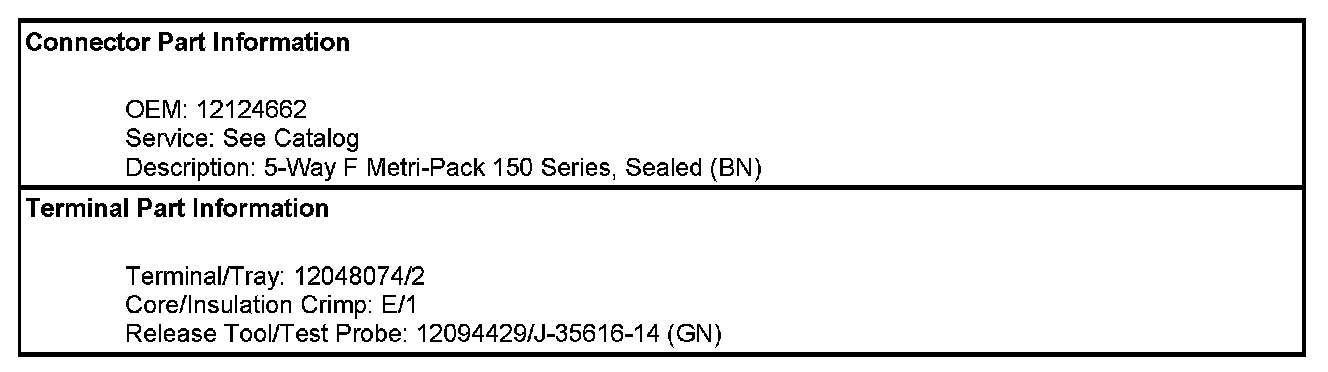

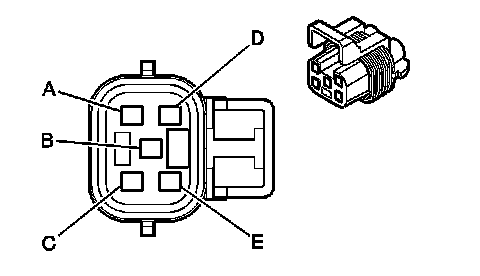

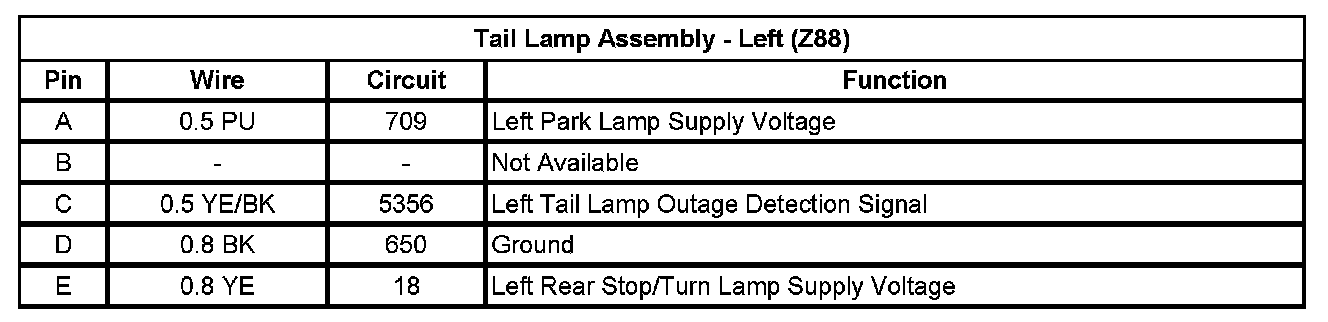

Tail Lamp Assembly - Left (Z88)

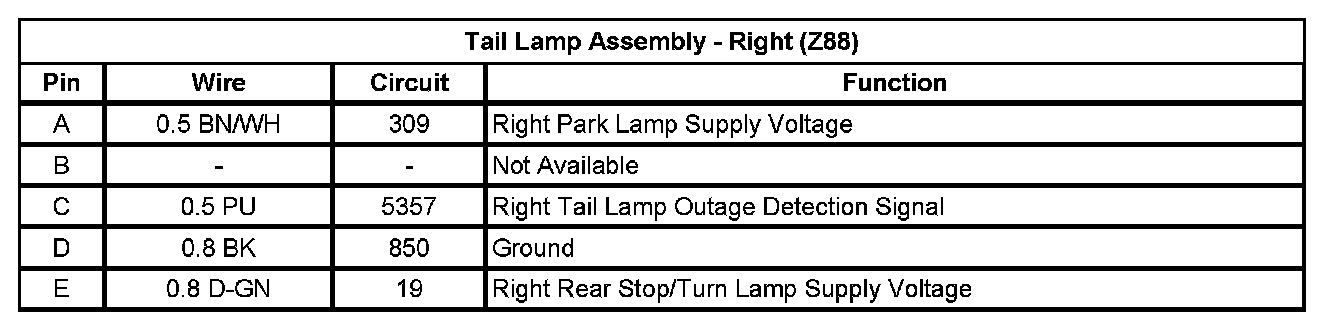

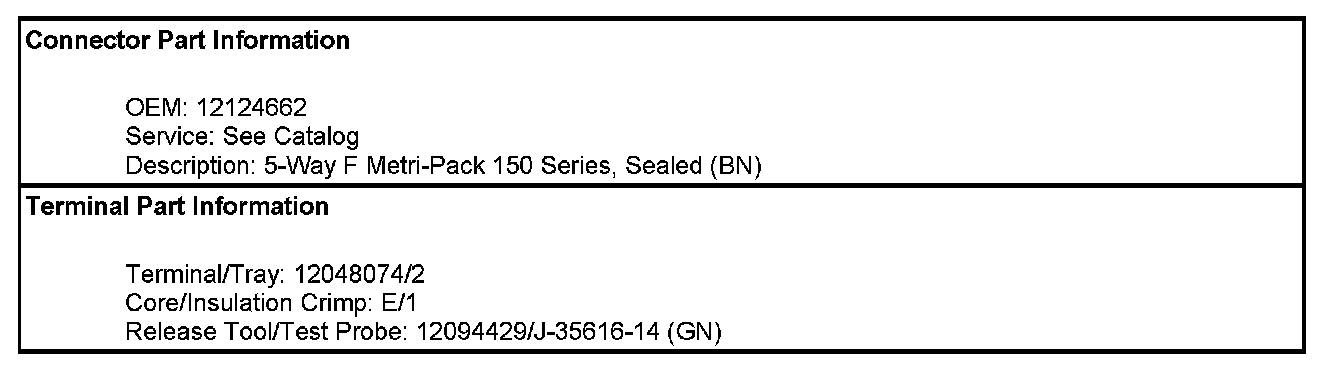

Tail Lamp Assembly - Right (Z88)














Tail/Stop and Turn Signal Lamp - Left (W49/WDA)














Tail/Stop and Turn Signal Lamp - Right (W49/WDA)
