Sun Shade



Component Connector End Views - Continued

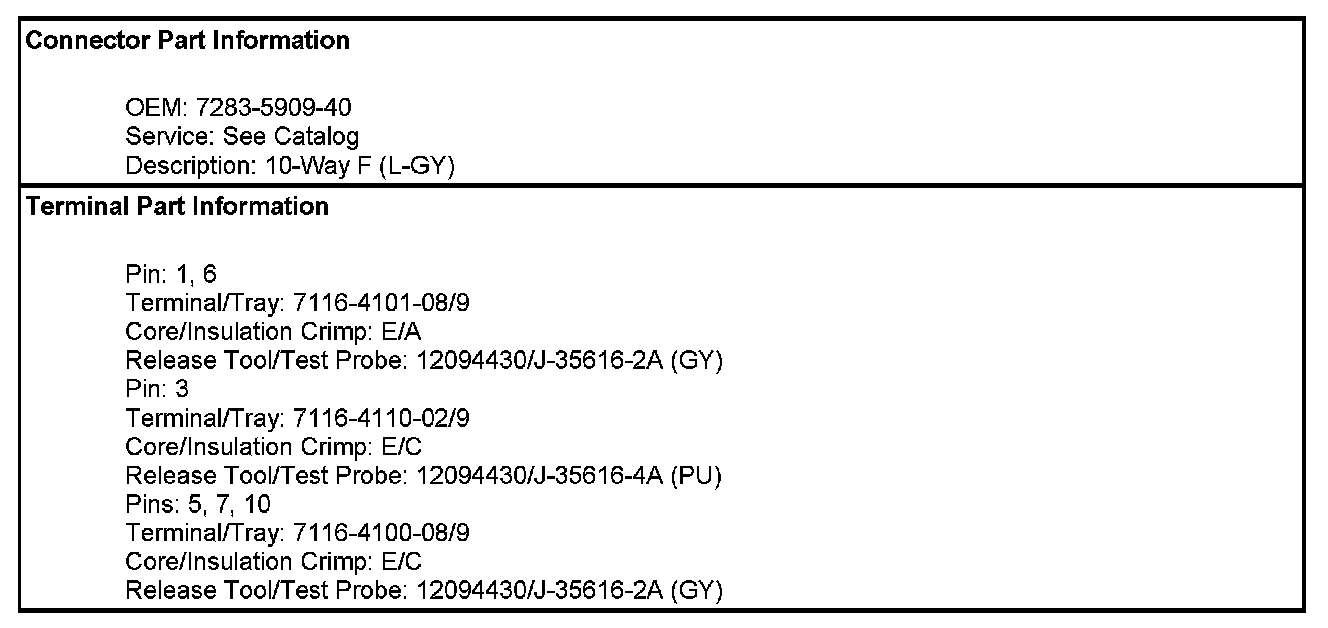

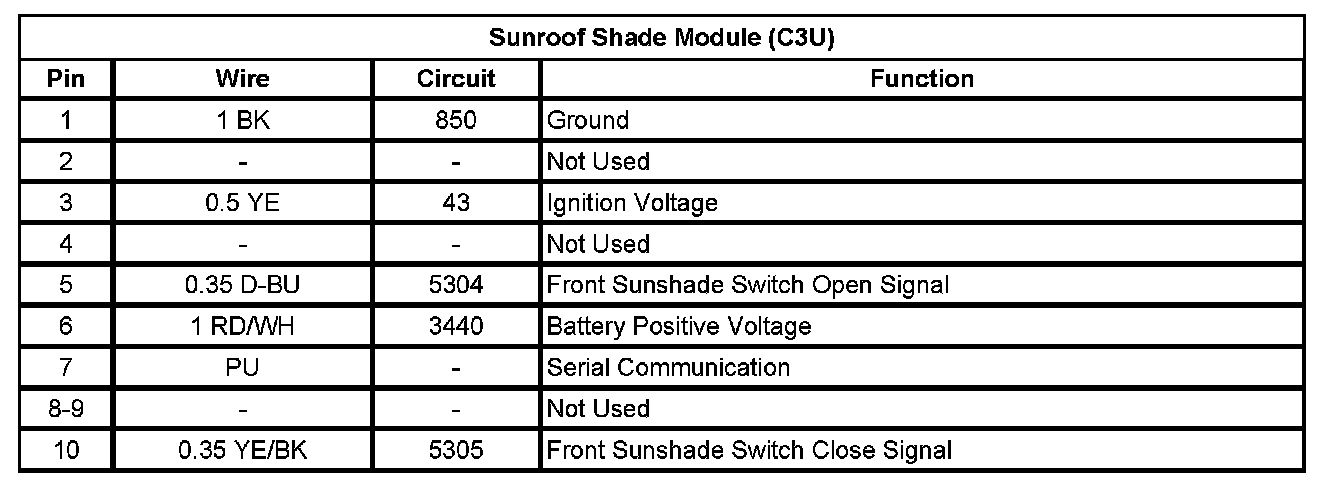

Sunroof Shade Module (C3U)

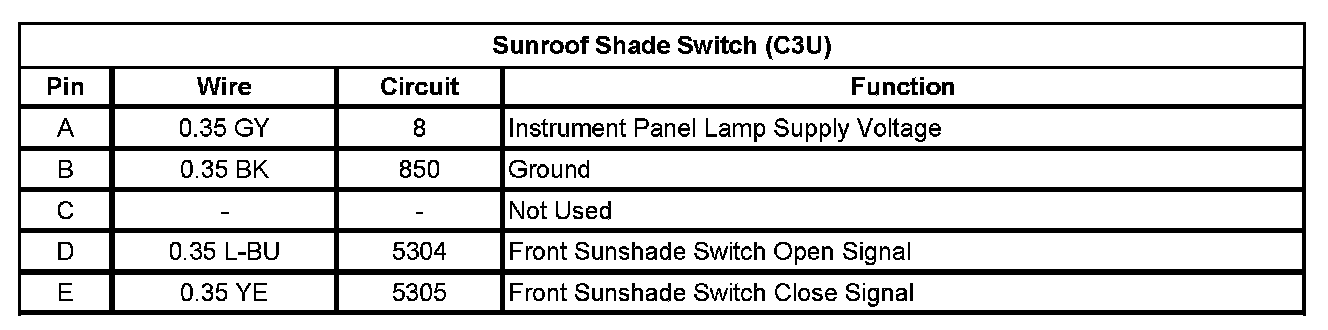

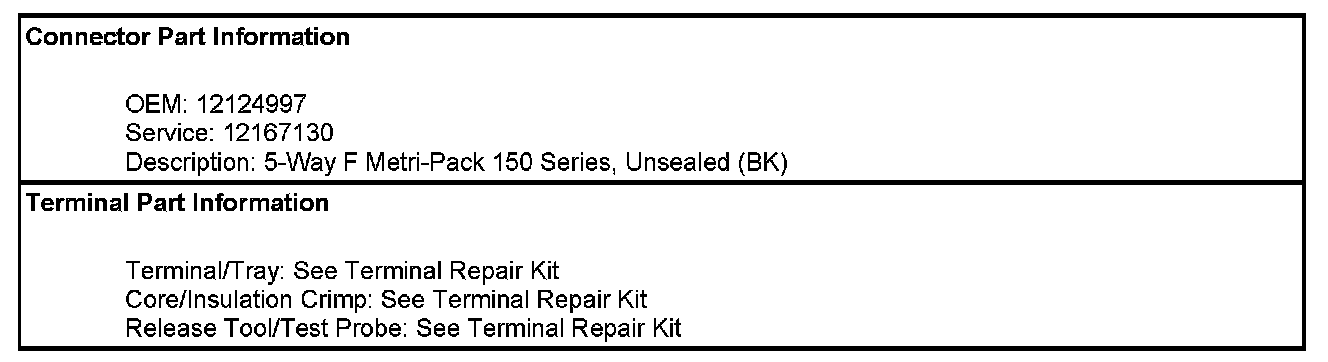

Sunroof Shade Switch (C3U)
