Power Trunk / Liftgate Hazard Sensor

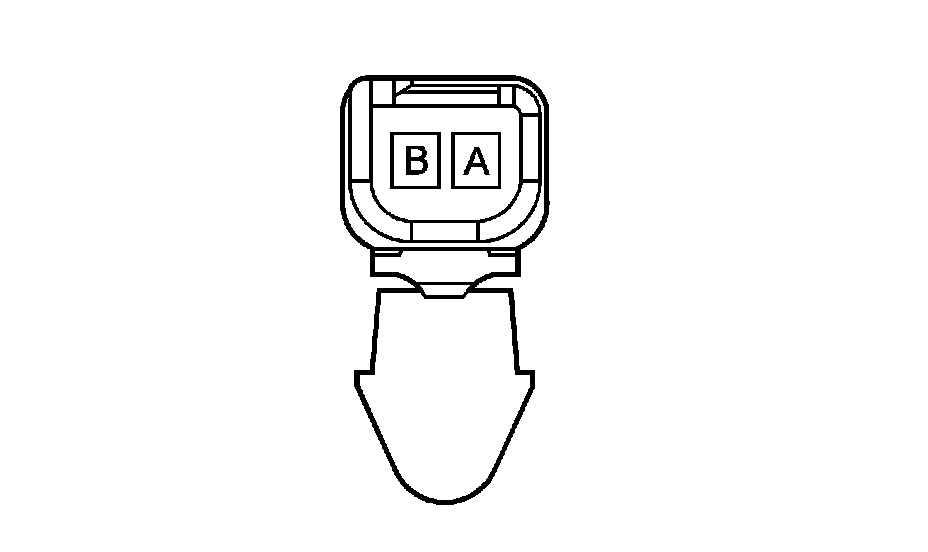

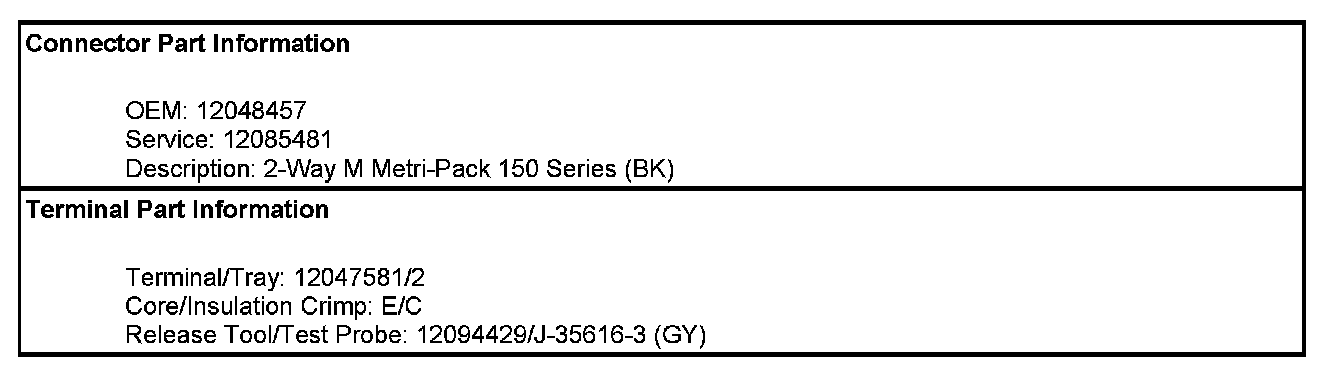

Component Connector End Views - Continued

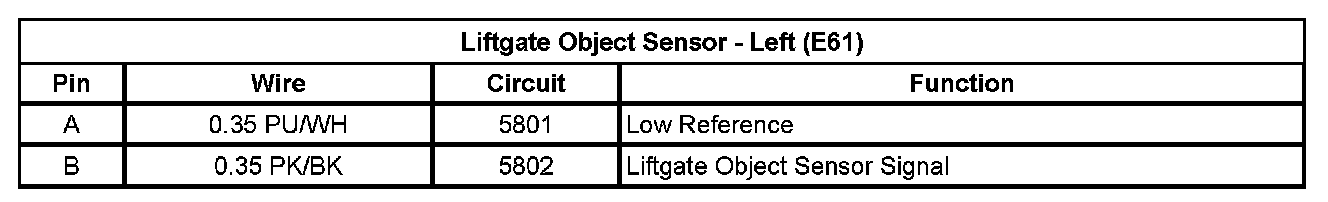

Liftgate Object Sensor - Left (E61)

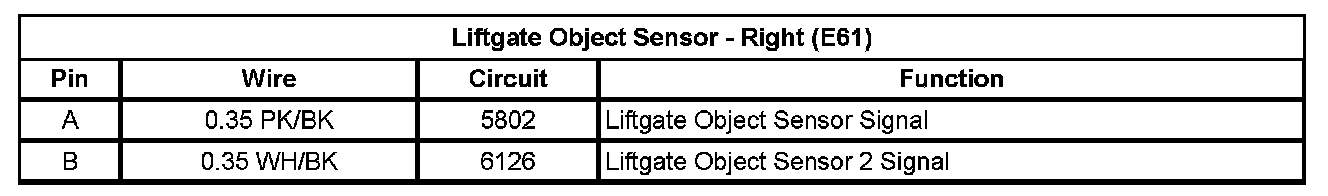

Liftgate Object Sensor - Right (E61)
