Power Steering Pressure Control Valve

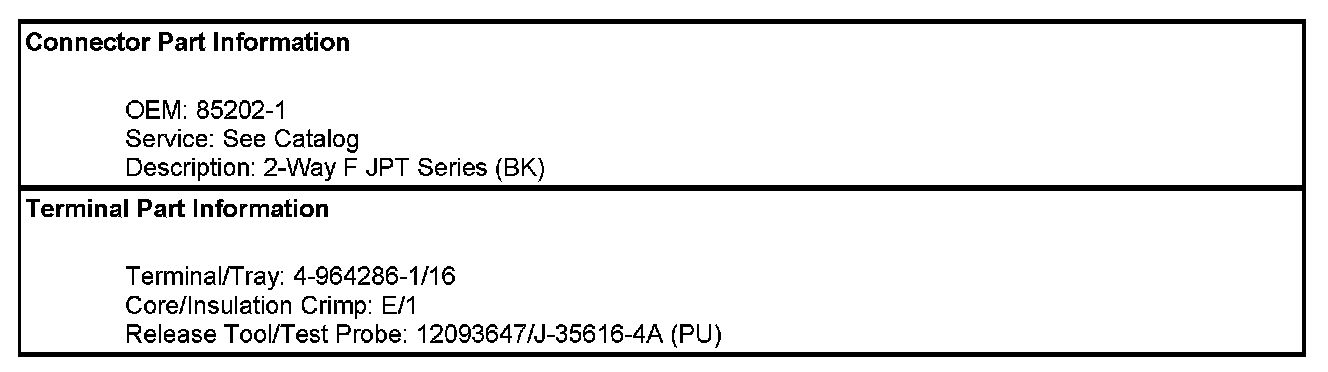

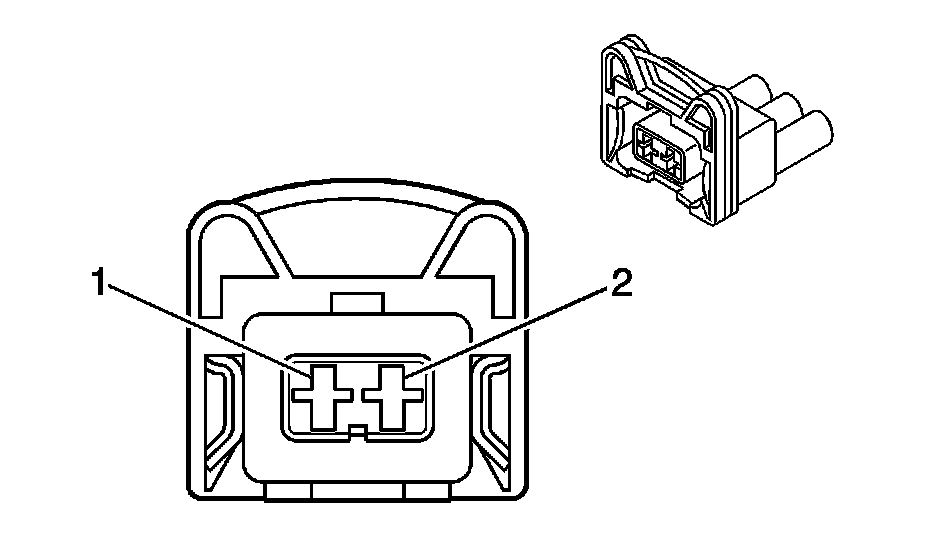

Component Connector End Views - Continued

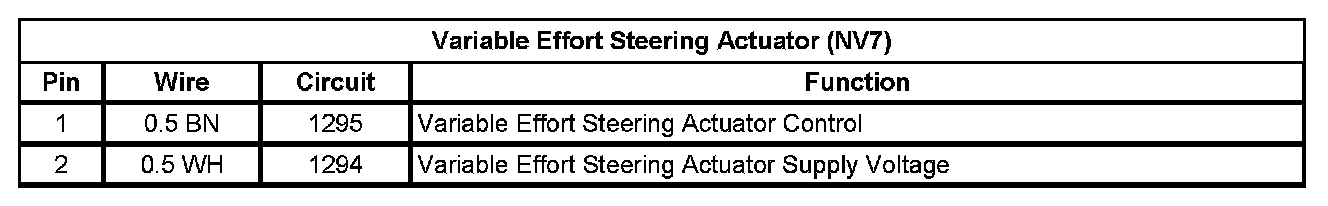

Variable Effort Steering Actuator (NV7)
