Power Seat Motor

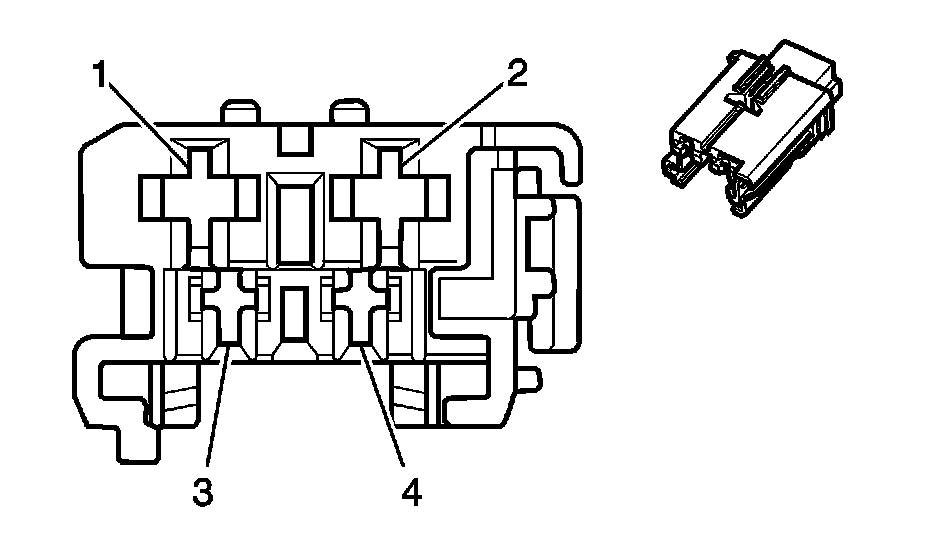

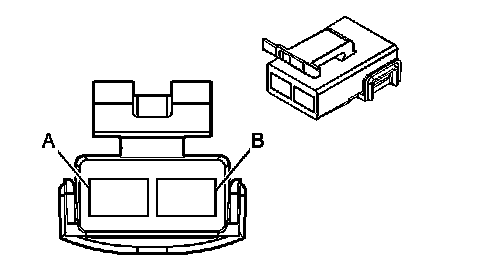

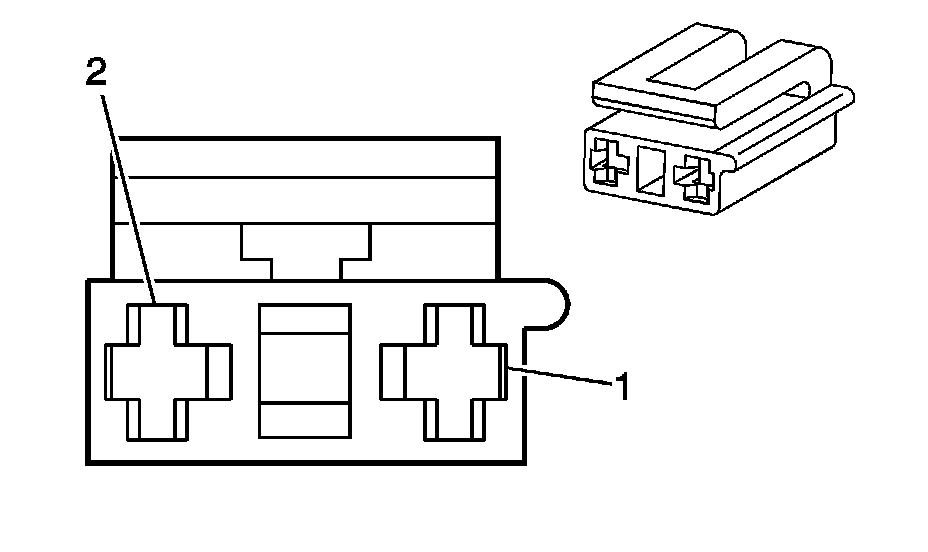

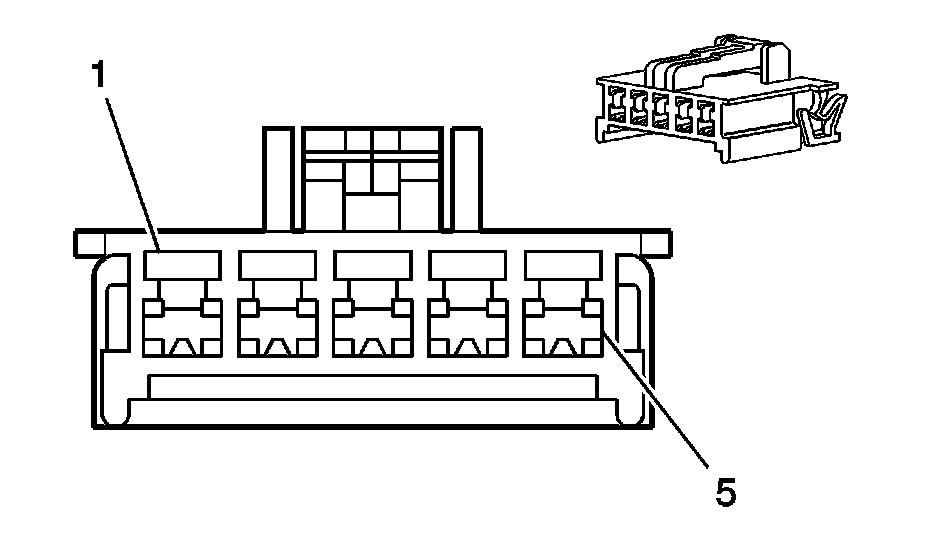

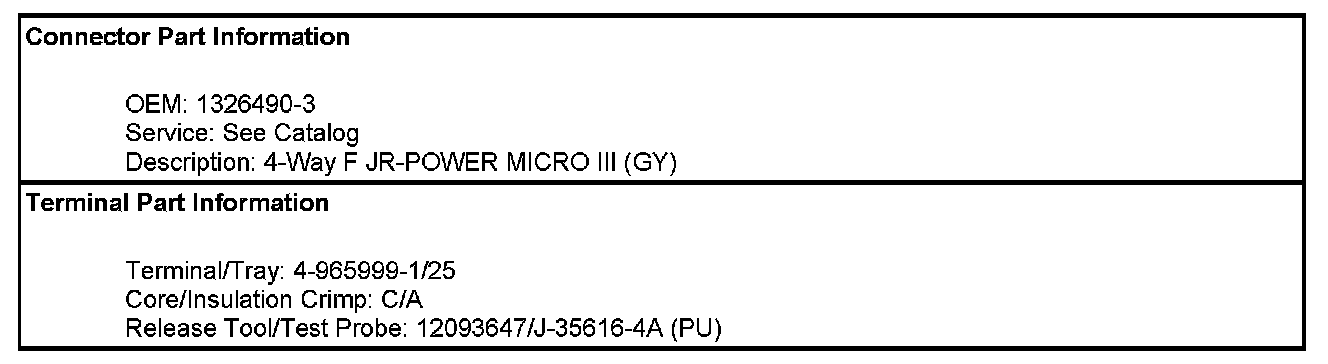

Component Connector End Views

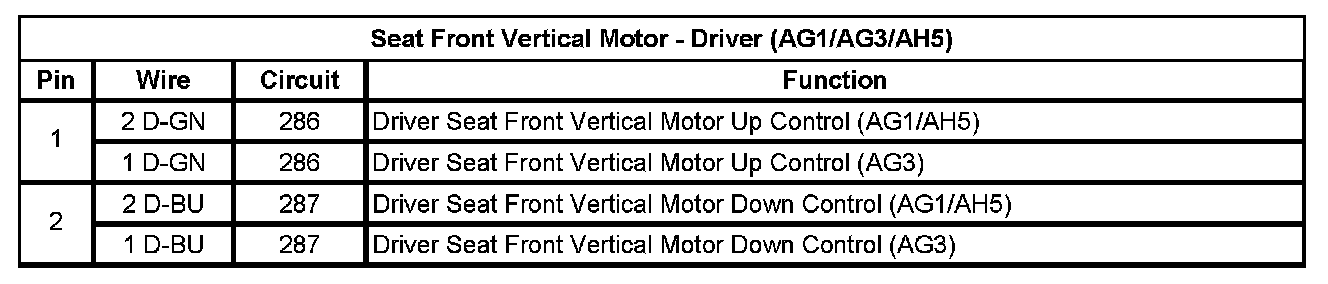

Seat Front Vertical Motor - Driver (AG1/AG3/AH5)

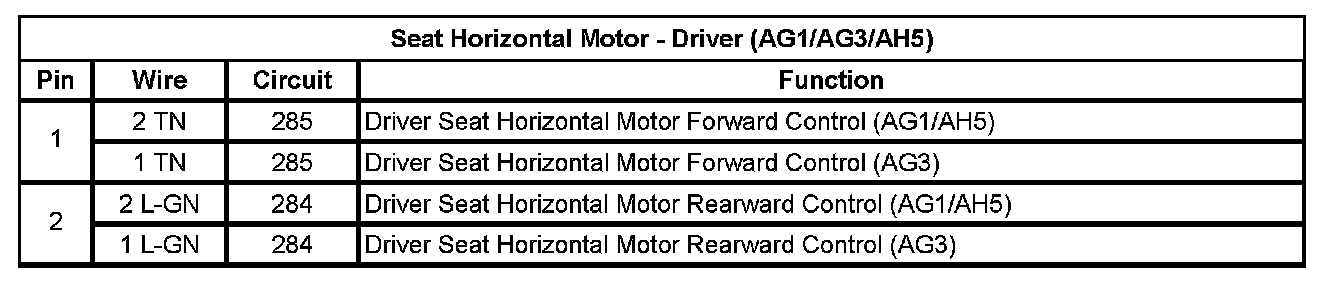

Seat Horizontal Motor - Driver (AG1/AG3/AH5)

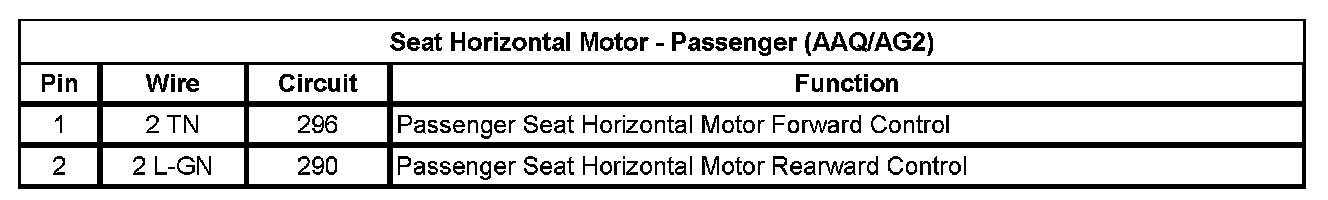

Seat Horizontal Motor - Passenger (AAQ/AG2)

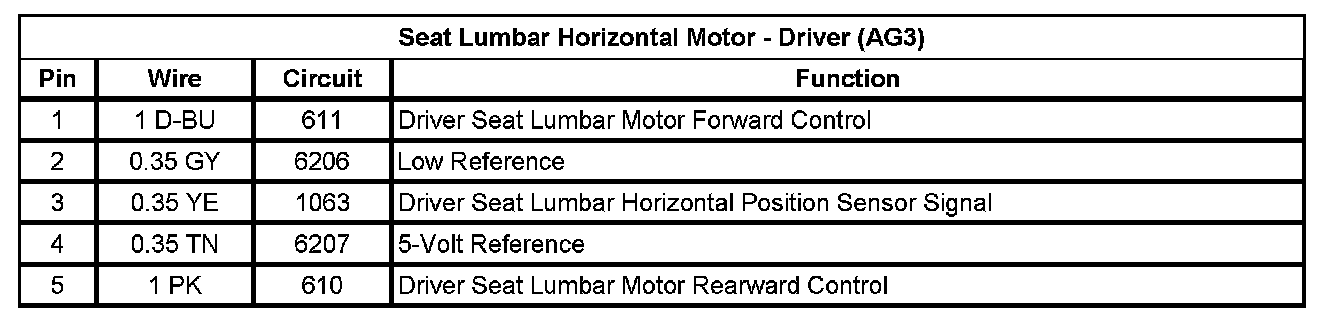

Seat Lumbar Horizontal Motor - Driver (AG3)

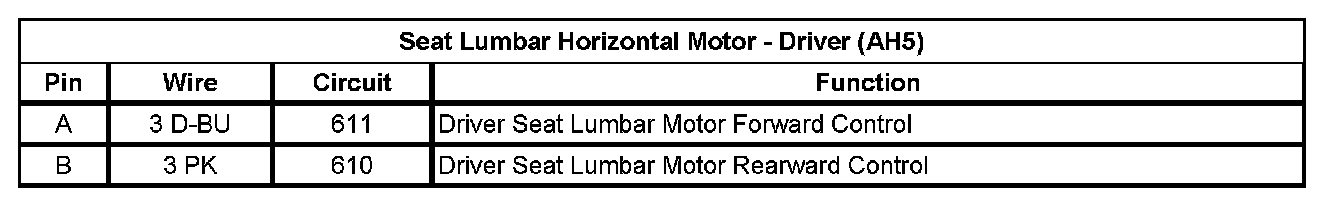

Seat Lumbar Horizontal Motor - Driver (AH5)

Telescoping Actuator C1:

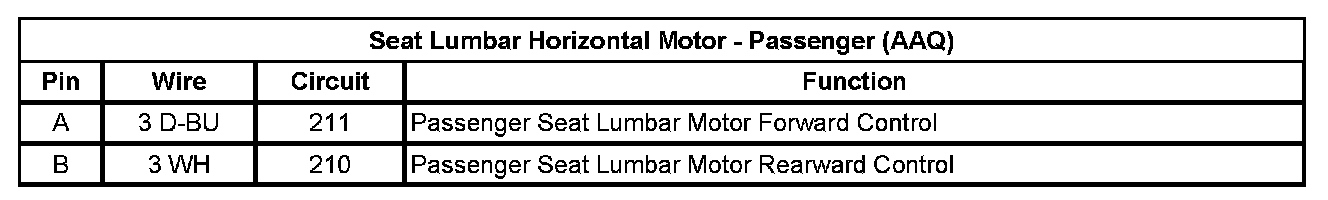

Seat Lumbar Horizontal Motor - Passenger (AAQ)

Telescoping Actuator C1:

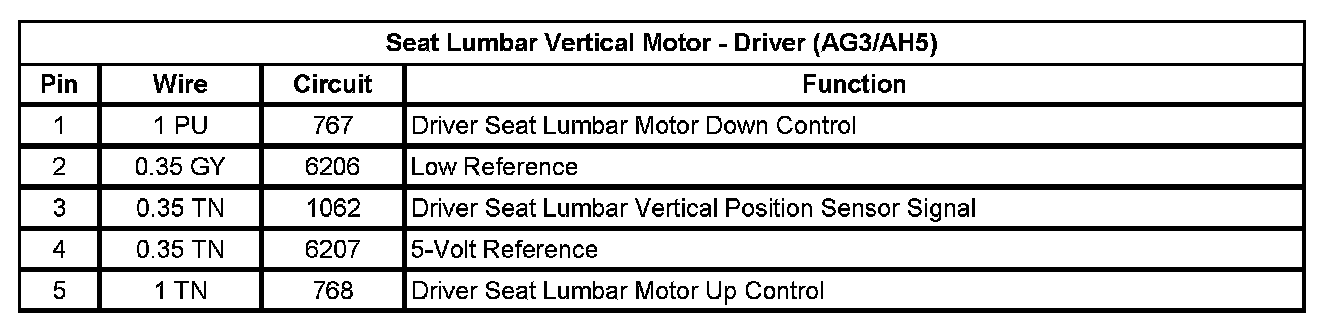

Seat Lumbar Vertical Motor - Driver (AG3/AH5)

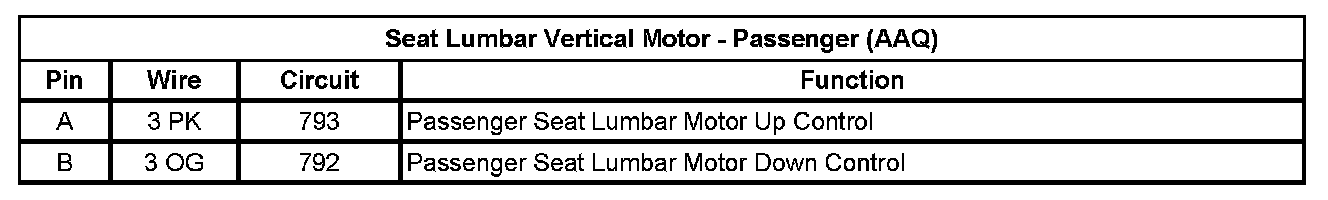

Seat Lumbar Vertical Motor - Passenger (AAQ)

Telescoping Actuator C1:

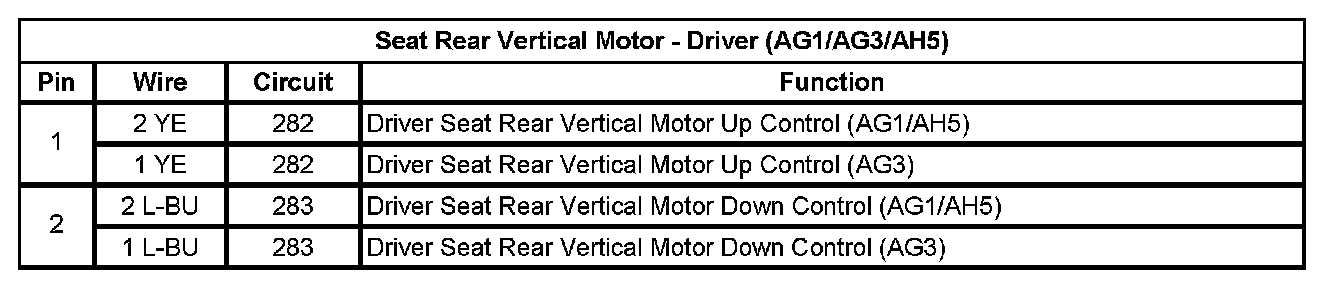

Seat Rear Vertical Motor - Driver (AG1/AG3/AH5)

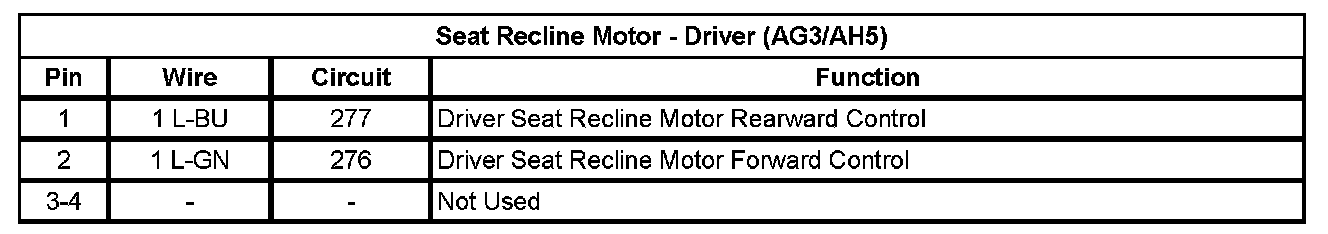

Seat Recline Motor - Driver (AG3/AH5)

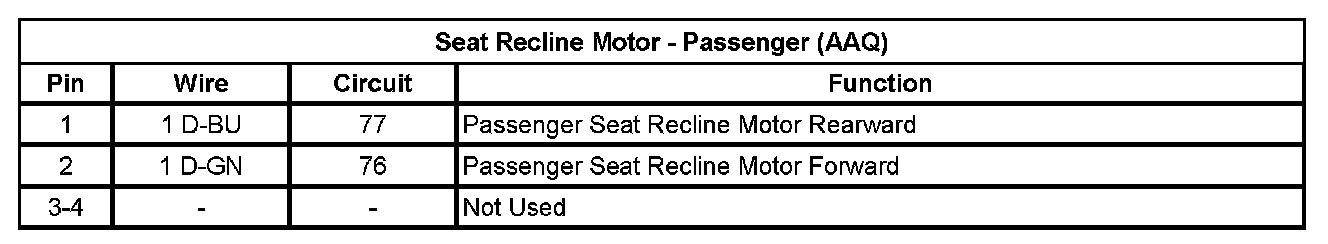

Seat Recline Motor - Passenger (AAQ)
